Need help to measure heavy loads accurately in your industrial environment?

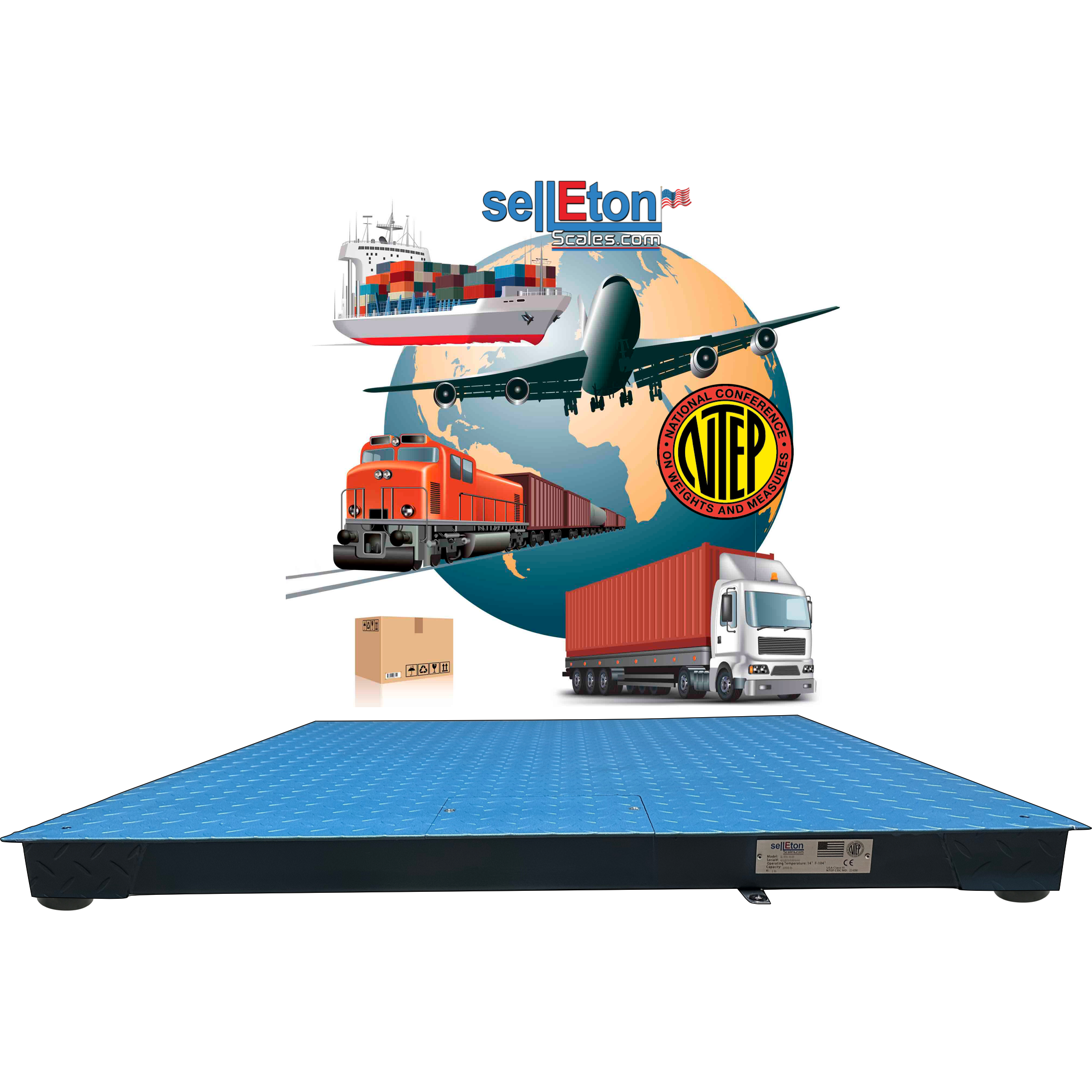

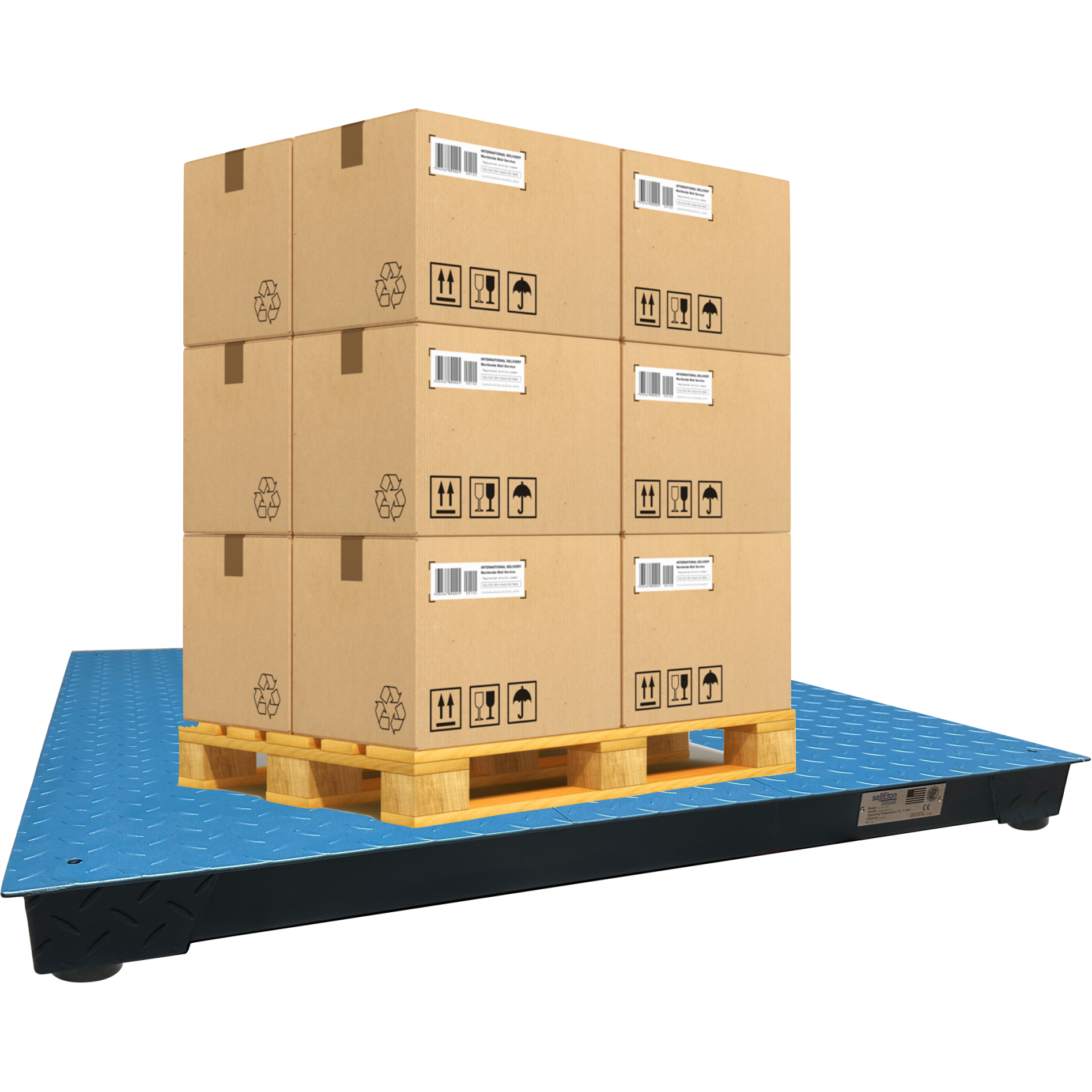

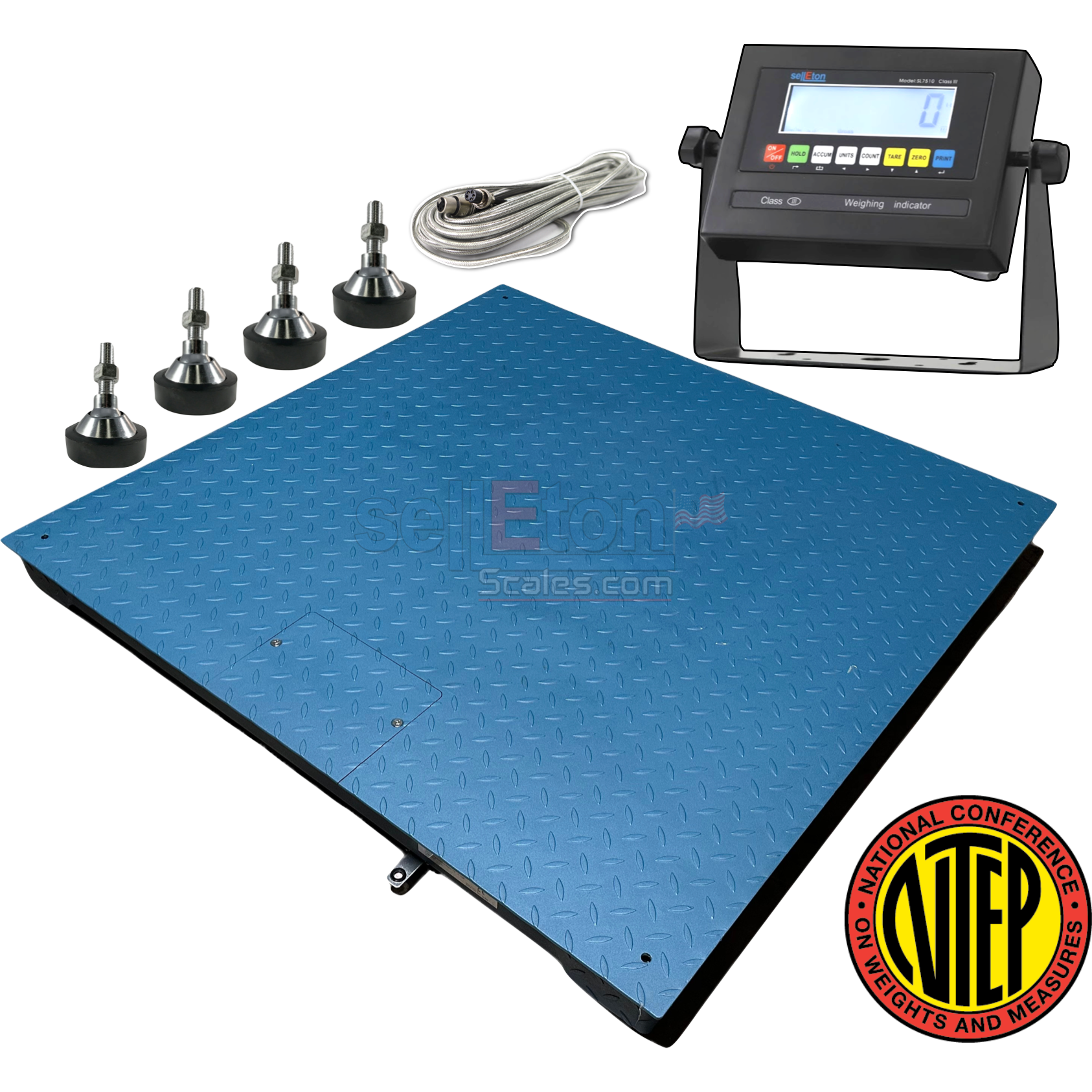

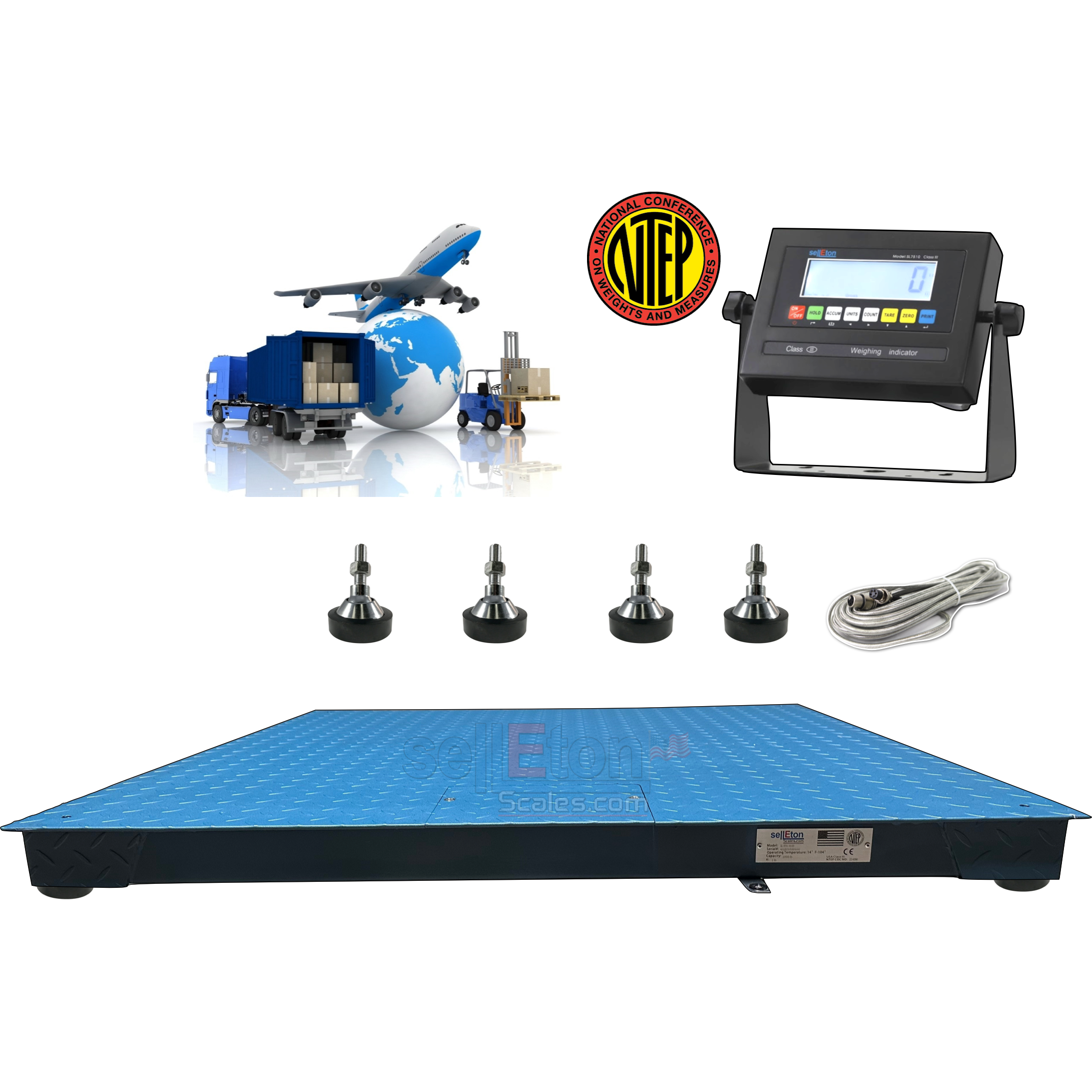

The SellEton SL-800-7x7-30 NTEP Certified Industrial Floor Scale is your reliable solution for precise, legal-for-trade measurements. This robust 84" x 84" platform is designed to support an impressive capacity of up to 30,000 lbs with a fine accuracy of 5 lb increments, ensuring your heavy-duty weighing is handled efficiently and accurately.
Key Benefits:
-
NTEP Certification: Meets strict standards for trade, guaranteeing precision and reliability in your transactions.
-
Robust Construction: Welded steel with a durable tread plate design withstands industrial use and offers 200% overload protection.
-
Versatile Functionality: Features an indicator with selectable lb/kg units, enhancing usability across different measuring needs.
-

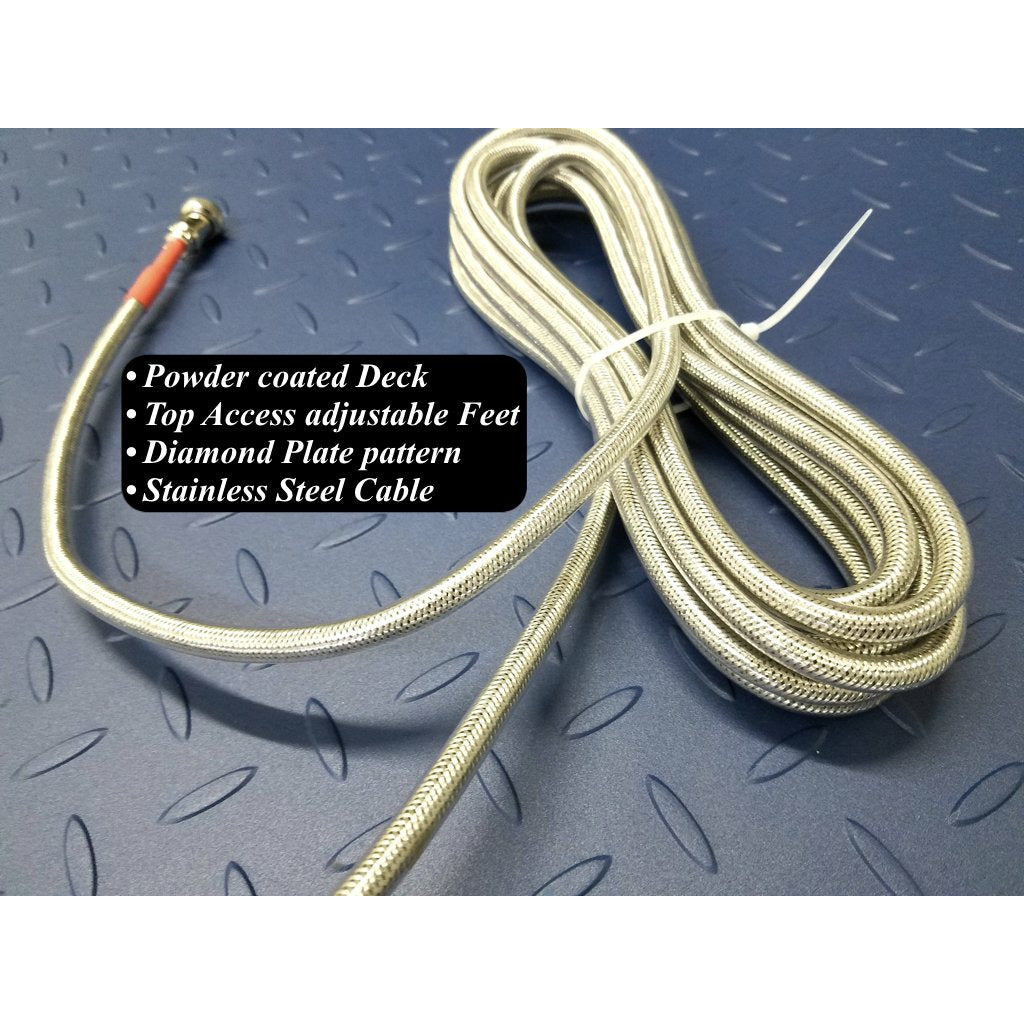

Long-Lasting Durability: The indicator is equipped with a 20’ heavy-duty metal shielded cable designed for tough environments.
-
Advanced Features: A rechargeable battery for continuous operation and a built-in RS-232 communication port for data integration.
-
Factory Calibrated: Ready to use right out of the box, reducing setup time and increasing efficiency.
-
Reliable Power: It comes with a SellEton SL-7510 Mild Steel Indicator, selectable between lb and kg, powered by a rechargeable battery for continuous operation.
-
NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
-
Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
-
Power Options: Includes an AC adapter; optional battery available.
-
Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
-
Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
-
Alarms: Features overload/underload alarms and an automatic error warning alarm.
-
Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
-
Connectivity: Capable of connecting to a remote display and multiple printers.
-
Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
-
Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
-
Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
-
Display: LCD or LED, 1-inch with a 6-digit numeric readout.
-
Units: lb, kg (primary), oz, g (LCD only).
-
Accuracy: Class III, 5,000 e.
-
Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
-
Excitation Voltage: 5V DC.
-
Output Current: Max 120 mA.
-
Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
-
Display Resolution: 30,000; ADC: 2,000,000.
-
Zero Stability Error: TKspn < ± 6 ppm/K.
-
Sensitivity: Internal 0.3 μV/d.
-
Input Voltage: -30 to +30mV DC.
-
Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
-
Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
-
Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
-
Display Increment: Selectable 1, 2, 5, 10, 20, 50.
-
Decimal Point: Selectable 0, 1, 2, 3, 4.
-
Conversion Rate: 12 samples/second typical.
-
Analog Signal Input Range: 1mV / V to 3mV/V.
-
Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
-
Measurement Rate: 0~15mV.
-
Auto Zero Tracking: 0 - 5 dd increments.

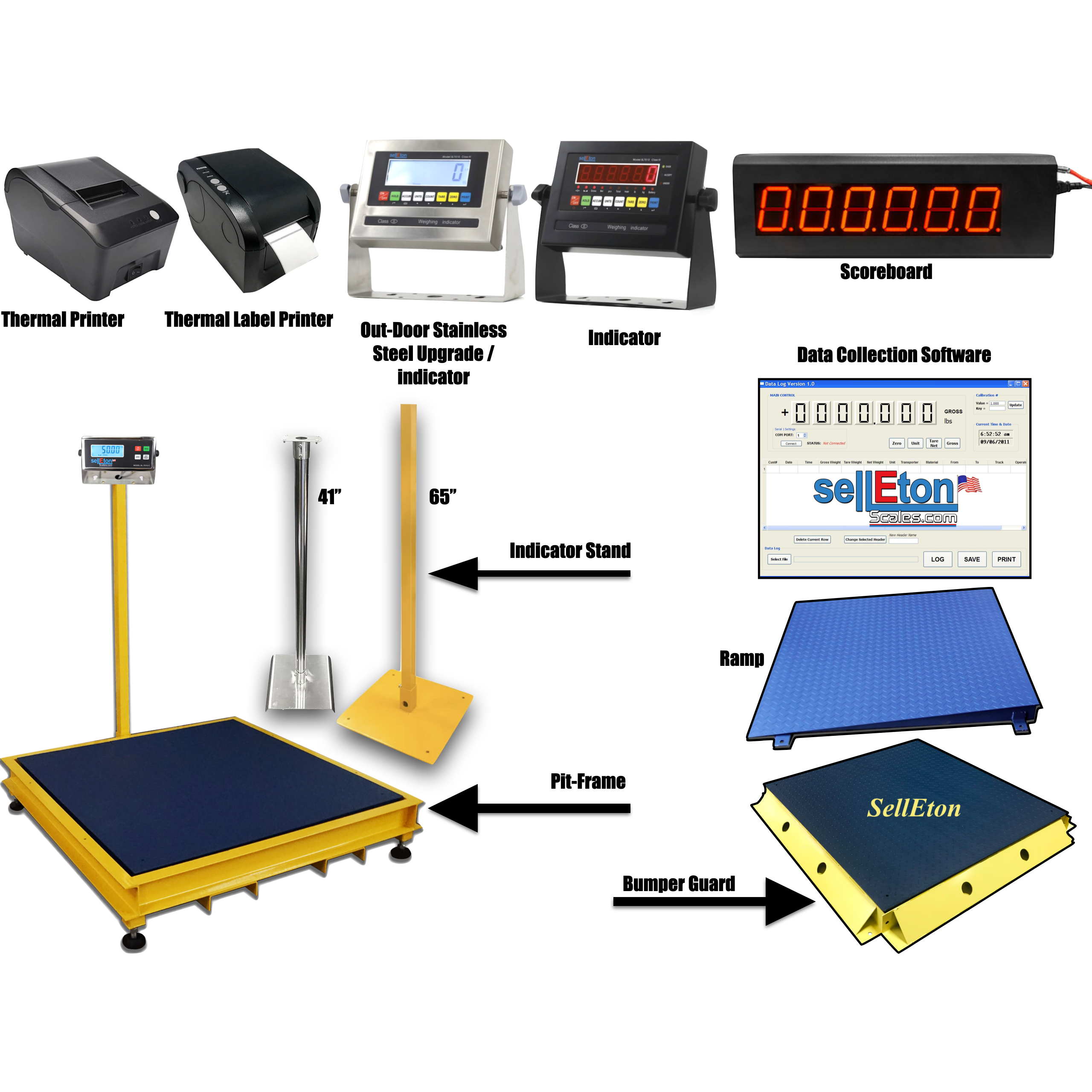

Customization Options for the SL-800-Series Floor Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
-
Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-
Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Pit-Frame Installation: Choose between a permanent, in-ground pit frame installation or versatile industrial portable pit frames for flexible placement.
-
Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.
-
Ramp Access: Implement optional ramps to facilitate simple and safe loading and unloading using carts or pallet jacks.
-
Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.
-
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.
-
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
-
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.
Feel confident in your industrial operations, knowing every measurement contributes to seamless productivity and compliance. This scale enhances your operational capabilities and supports your business's credibility and efficiency. Invest in reliability and precision today—your business deserves it.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
