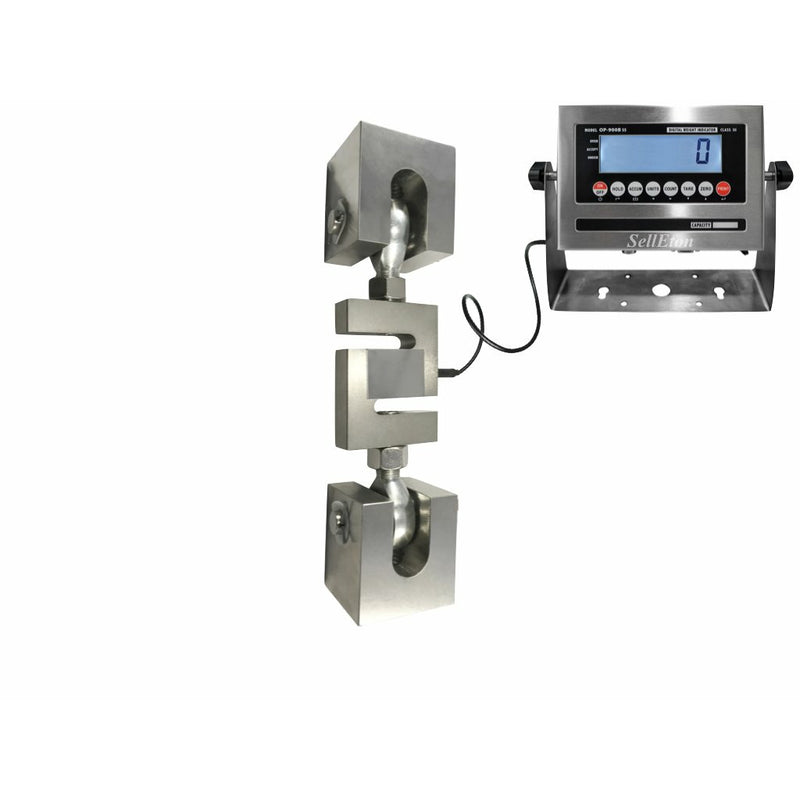

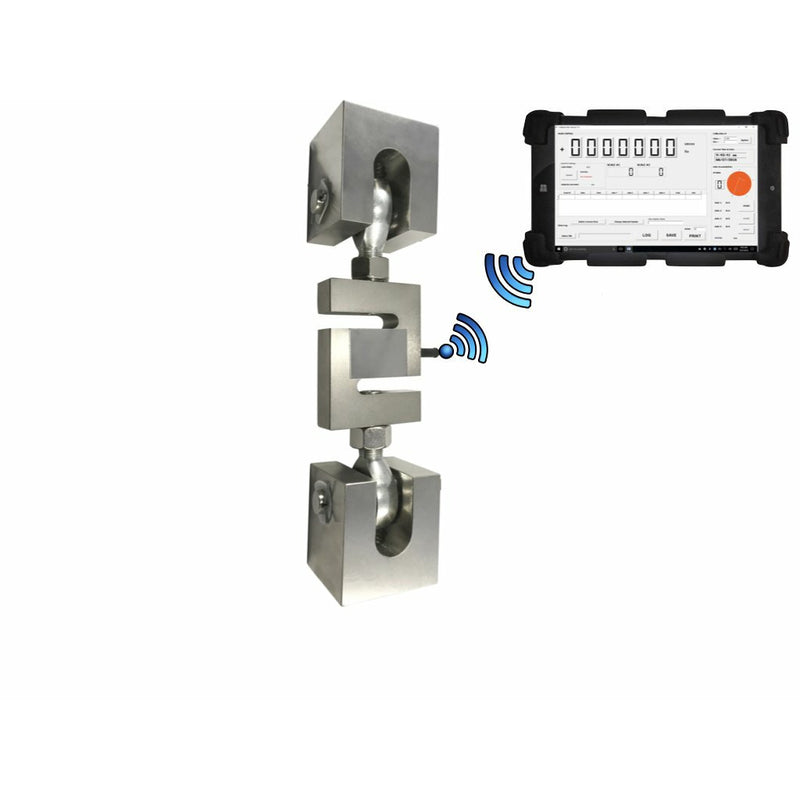

SellEton SL-312-TM S Type load cell with connection links

Regular price
Regular price
Sale price
Unit price
Sold out

Customizations Total: $0.00

  • Description
  • Brochure
  • Shipping Policy

SL-312-TM S type load cell with connection links could allow you to weigh products vertically & Horizontally. Similar to a traditional crane scale, our SL-312-TM Scales will allow secured connection points from the top & bottom of the load cell.

Such a system is used in both vertical & horizontal weighing applications. Since the indictor carries a peak hold function you can use this system for testing applications as well.


Our SL-7510-SS indicator carries a variety of functions such as Peak hold functions, Alarm ( notification ), software integration, wireless integration, Counting features & much more!


 Indicator specification:

  • Stainless Steel casing  ( IP67 )
  • AC adapter included ( Battery included )
  • Multiple weighing units: (lb/kg); (g/oz/lb:oz) available on LCD only
  • Gross/Tare/Pre-Set Tare/Zero
  • Multiple Hold functions
  • Count weighing
  • Accumulation weighing
  • Overload / Underload alarm
  • Power saving mode
  • Automatic date and time update
  • Ability to modify gravity based on
  • different geographical locations
  • 100% manual zero range setting
  • Automatic error warning alarm
  • Splash-proof  keyboard and display
  • Connects to a remote display
  • Connects to multiple printers
  • NTEP approved for 5,000 divisions
  • Displays up to 50,000 graduations
  • 1” LCD display with backlight
  • Mounting bracket and Hardware (included)
  • Operates on 110V AC adapter (included)
  • Full Duplex RS-232 Serial Port
  • Drives up to 6 x 350 Ω ohms load cells


Load cell Specification:

  • Rate output: 3.0mV/V
  • Load cell resistance: 385 Ω OHMS
  • load cell cable:  50-10k lbs : 20 ft / 6m
  • load cell cable: 15k-20k lbs : 40 ft / 12m
  • Safe Overload: 150% F.S
  • Destructive load: 300% F.S
  • Excitation Recommended: 10-20V AC/DC
  • Operation Temperature: -4 F - 104 F
  • Construction Load cell: Alloy Steel
