The SellEton SL-927 tension link scale is here to transform your lifting operations. Designed to deliver pinpoint accuracy, this high-quality hanging crane scale is an indispensable tool for industries that rely on precise weight measurements for cranes, hoists, and winches. Its advanced technology and robust design ensure you can monitor and control overhead loads without hassle.
Key Benefits:
-

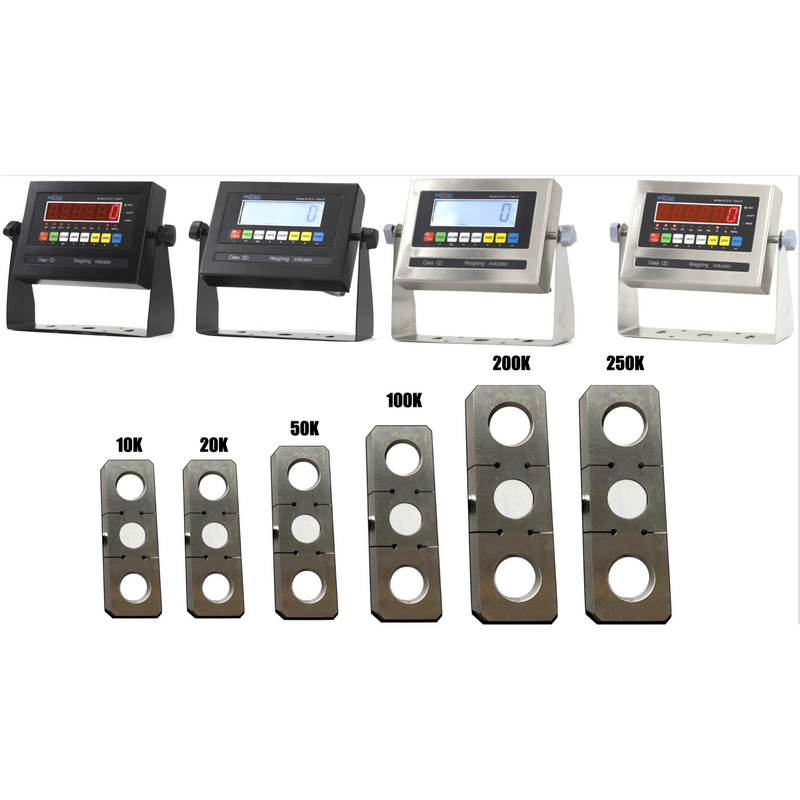

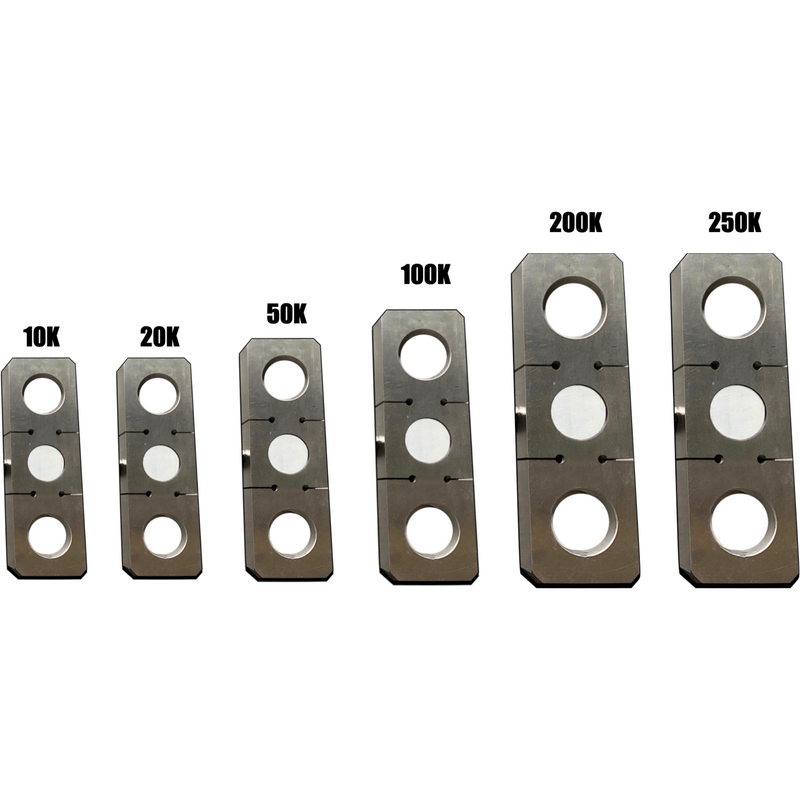

High-Capacity Measurements: Offers a wide range of capacities from 25,000 to 250,000 lbs, ensuring versatility across various industrial applications.
-
Dual Measurement Display: Effortlessly switches between kg and lb units, catering to diverse operational standards and requirements.
-
Enhanced Visibility: Features a large 1-inch LCD for clear, easy-to-read displays, crucial for quick operational decisions.
-
Remote Control Operation: Enhances convenience and safety by managing all functions remotely, reducing the need for manual adjustments.
-
Energy Efficient: Equipped with a patented low-power consumption design and an automatic shutoff feature that extends battery life up to 100 hours, optimizing operational efficiency.
-
Automatic Zero Tracking: Maintains accuracy by adjusting to temperature changes and dust accumulation, ensuring consistent, reliable readings.
-

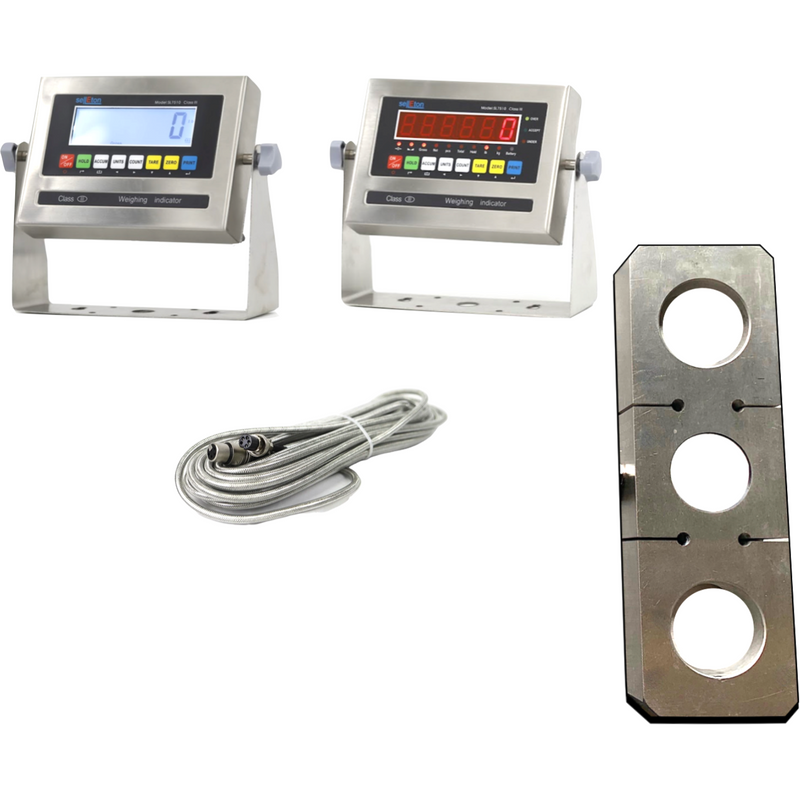

Reliable Power: It comes with an SL-7510-SS-C Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.
Indicator Key Features:
-
Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
-
Power Options: Includes an AC adapter; optional battery available.
-
Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
-
Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
-
Alarms: Features overload/underload alarms and an automatic error warning alarm.
-
Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
-
Connectivity: Capable of connecting to a remote display and multiple printers.
-
Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
-
Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
-
Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
-
Display: LCD or LED, 1-inch with a 6-digit numeric readout.
-
Units: lb, kg (primary), oz, g (LCD only).
-
Accuracy: Class III, 5,000 e.
-
Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
-
Excitation Voltage: 5V DC.
-
Output Current: Max 120 mA.
-
Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
-
Display Resolution: 30,000; ADC: 2,000,000.
-
Zero Stability Error: TKspn < ± 6 ppm/K.
-
Sensitivity: Internal 0.3 μV/d.
-
Input Voltage: -30 to +30mV DC.
-
Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
-
Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
-
Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
-
Display Increment: Selectable 1, 2, 5, 10, 20, 50.
-
Decimal Point: Selectable 0, 1, 2, 3, 4.
-
Conversion Rate: 12 samples/second typical.
-
Analog Signal Input Range: 1mV / V to 3mV/V.
-
Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
-
Measurement Rate: 0~15mV.
-
Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for the SL-927 Tension Link Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
-
Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-
Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.
-
Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.
-
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.
-
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Investing in the SellEton SL-927 tension link scale means equipping your business with a tool that not only addresses the need for accurate weight measurement but also enhances operational efficiency and safety. Feel the satisfaction of seamless, dependable lifting operations and the peace of mind that comes from knowing that your load handling is as precise as it is reliable. Elevate your industry standards with SellEton, where every lift counts towards your success.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
