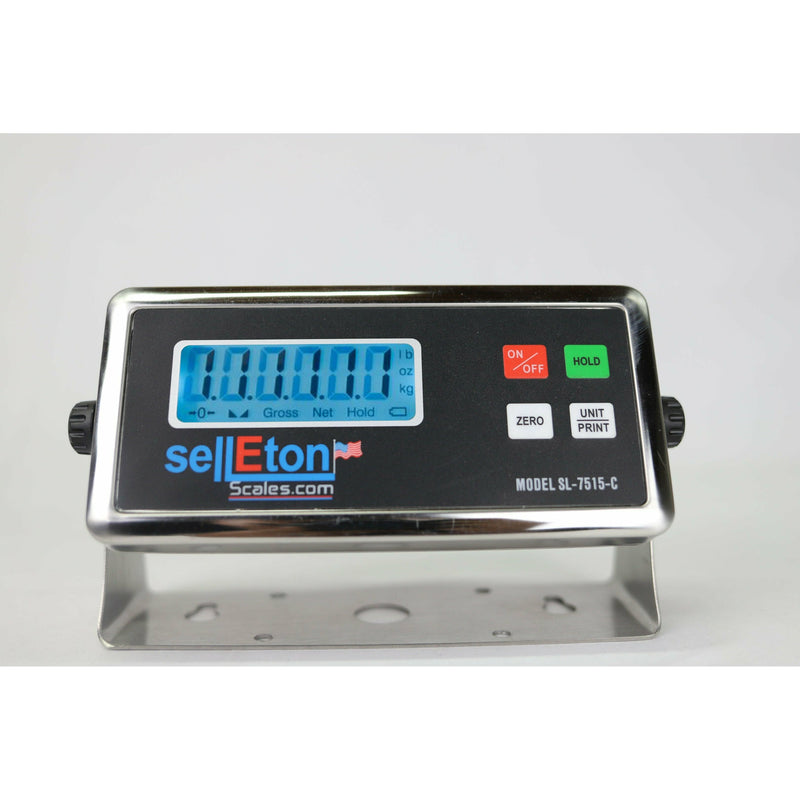

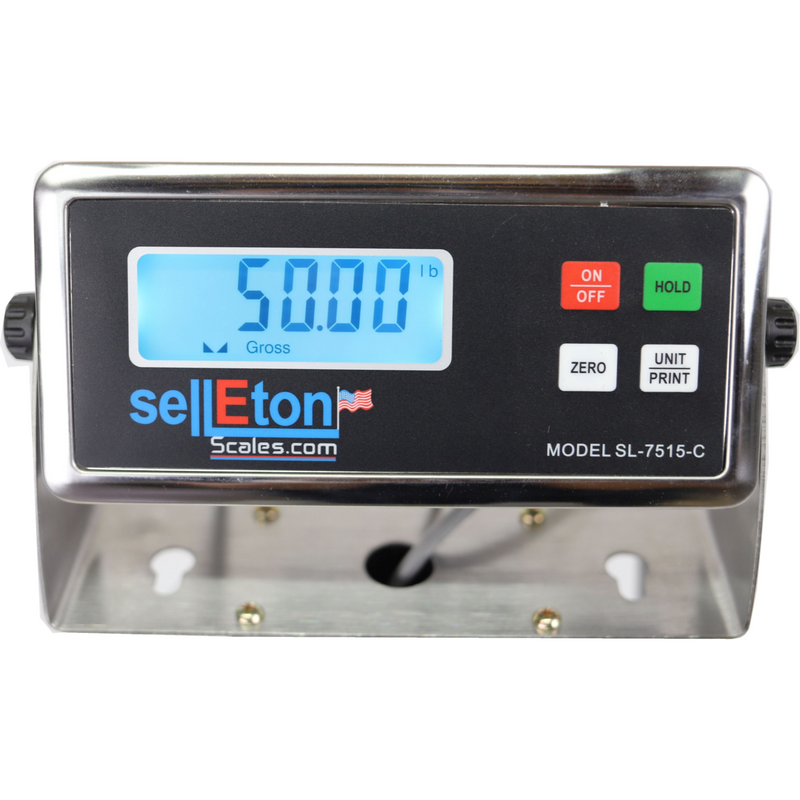

SL-7515-C Replacement Indicator for Floor & Bench Scales

The SL-7515-C is a replacement weight indicator for floor scales and bench scales. It is the standard indicator on our SL-700 floor scales and works with platforms that use up to four 350 Ω load cells.

Key features

• Easy to read. 6-digit, 0.7 in LCD with backlight.
• Everyday functions. Gross, tare, zero and hold at the press of a key.
• Runs anywhere. Three AA batteries or a 6 V DC adapter, with auto power off.
• Ready to print. RS-232 output works with the SL-25 thermal printer.
• Splash-proof. Sealed keypad and display for shop floor use.

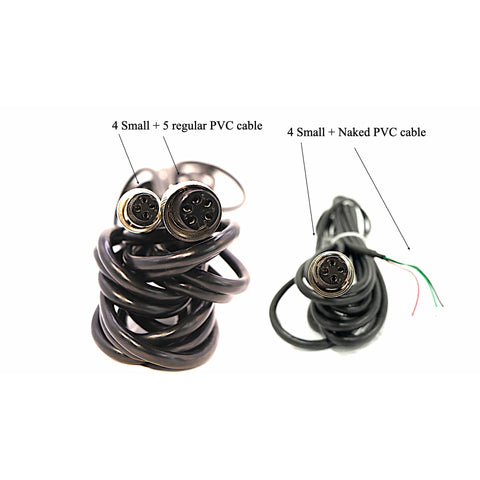

Which connection do I need?

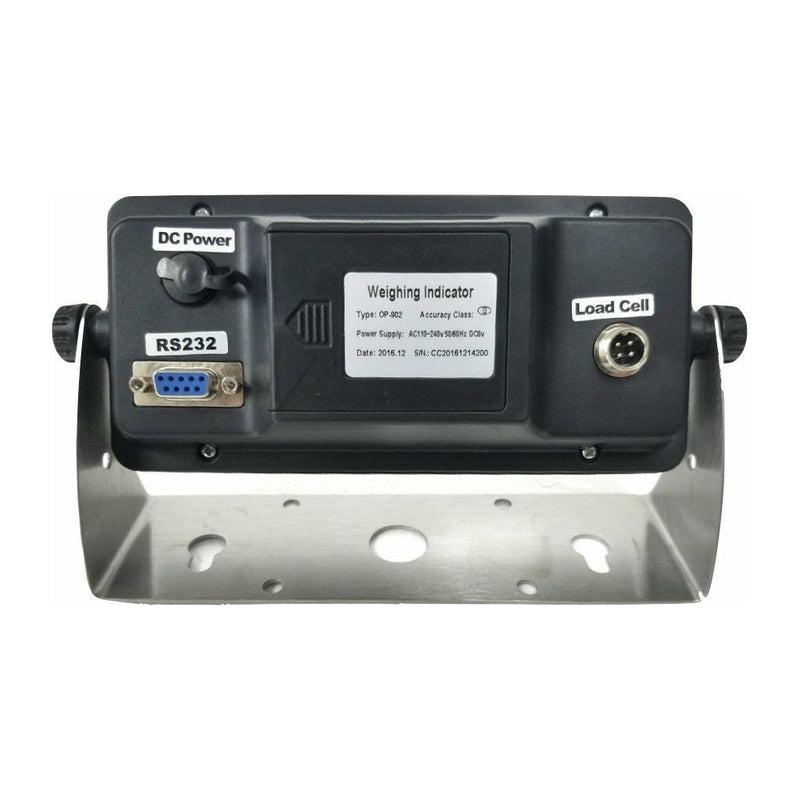

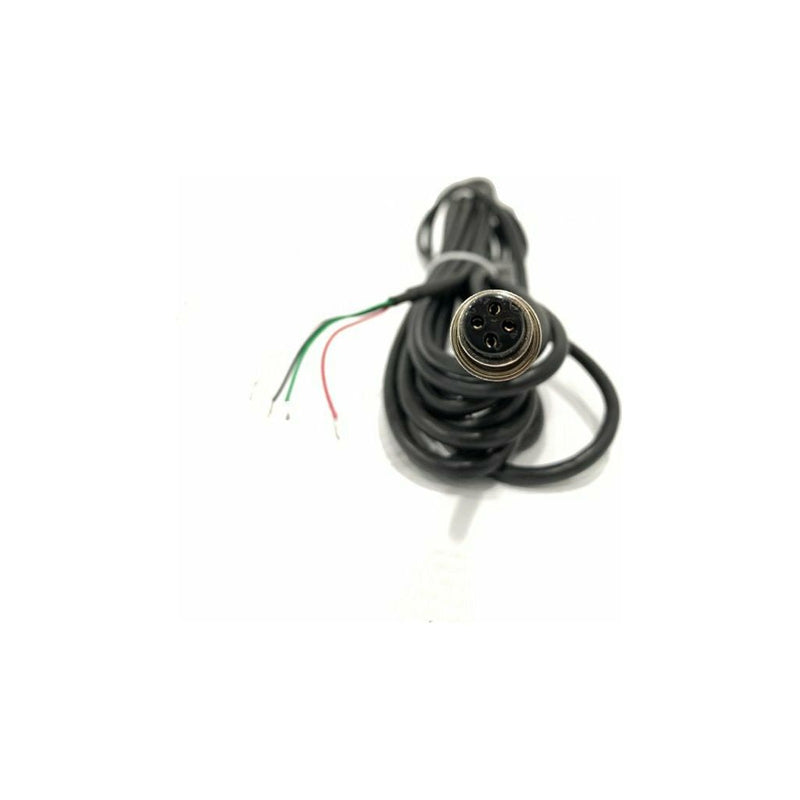

• 4 prong (small, M12). Older SL-7515 models. Choose it alone or with a 4 prong cable.

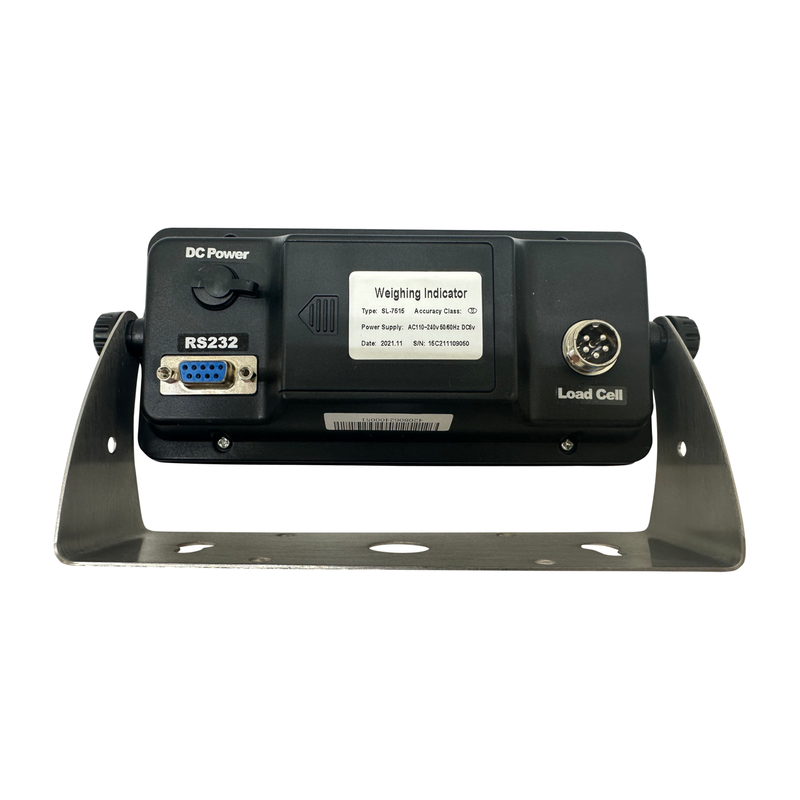

• 5 prong (big, M16). Models from 2021 and up. Choose it alone or with a 5 prong stainless steel cable.

Not sure? Look at the round socket on the back of your current indicator, or send us a photo and we will tell you.

Specifications

• Display: 6-digit, 0.7 in LCD with backlight
• Units: lb and kg, oz as a secondary unit
• Accuracy class: OIML III, 3,000 e
• Display resolution: Up to 1/15,000
• Display increments: 1, 2, 5, 10, 20 or 50
• Load cells: Up to four, 350 Ω each
• Excitation: 5 V DC
• Output: RS-232
• Power: Three AA batteries or 6 V DC adapter
• Operating temperature: 14 to 104 °F (-10 to 40 °C)
• Weight: 1.2 lb
• Certification: Not NTEP, not legal for trade

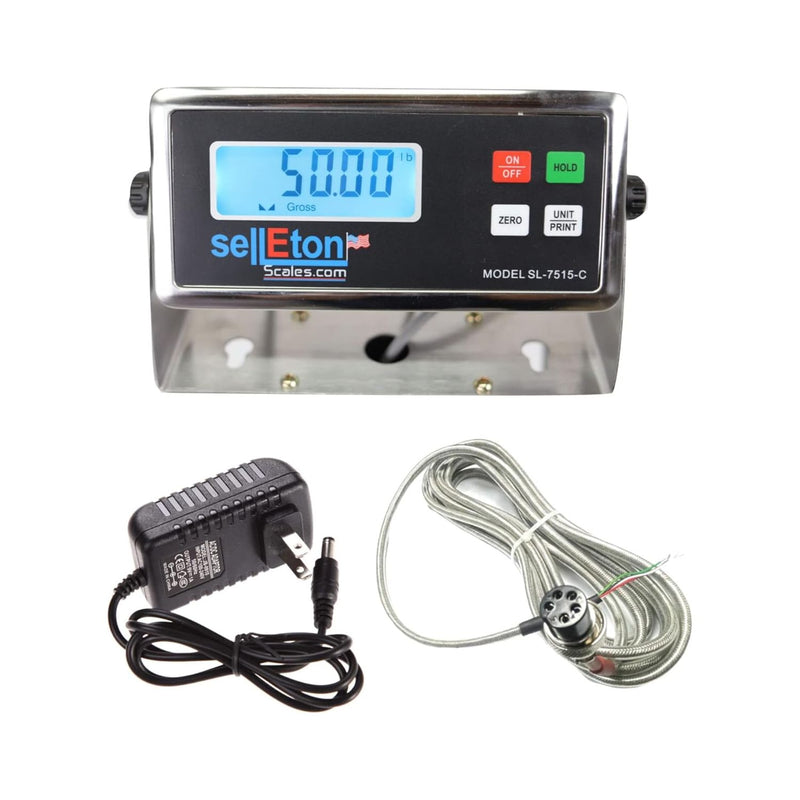

In the box

• SL-7515-C indicator

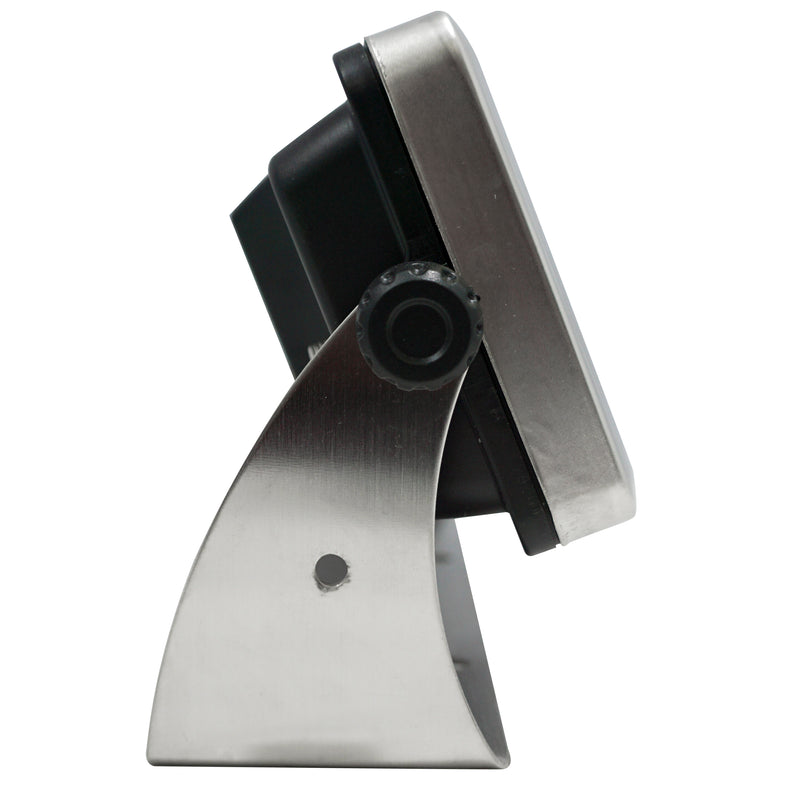

• Stainless steel wall mount bracket
• Cable, when you choose an option with cable

Upgrades and add-ons

• Printer. Ticket and label printers for a record of every weight.
• Scoreboard. The SL-910 remote display for reading from a distance.
• Data software. Data logging software keeps weight records on your computer.
• Indicator stand. Stands in painted or stainless steel.

Note: outdoor and wet areas

For outdoor or washdown use, choose the SL-7510-SS stainless steel indicator with stainless steel load cells and junction box.
