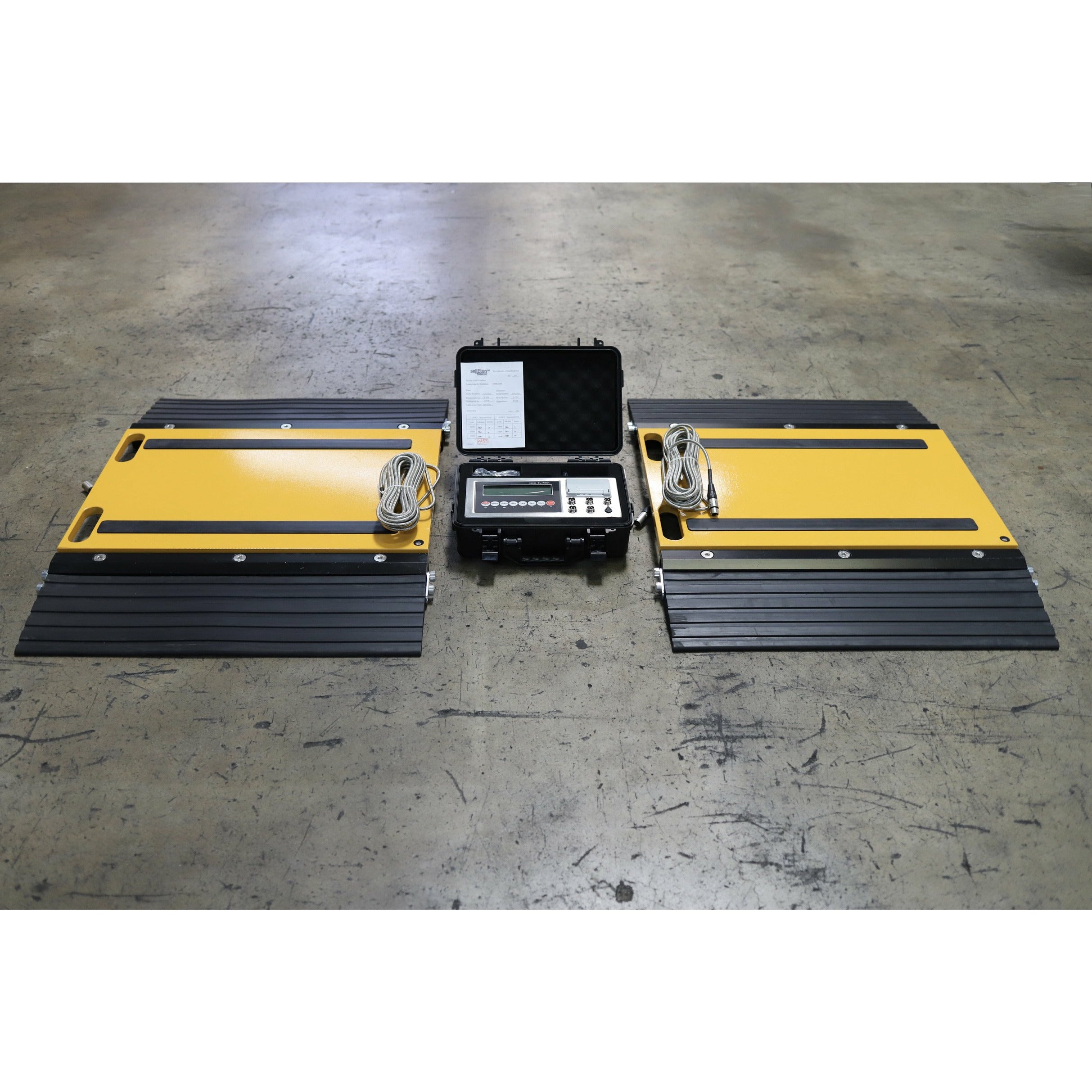

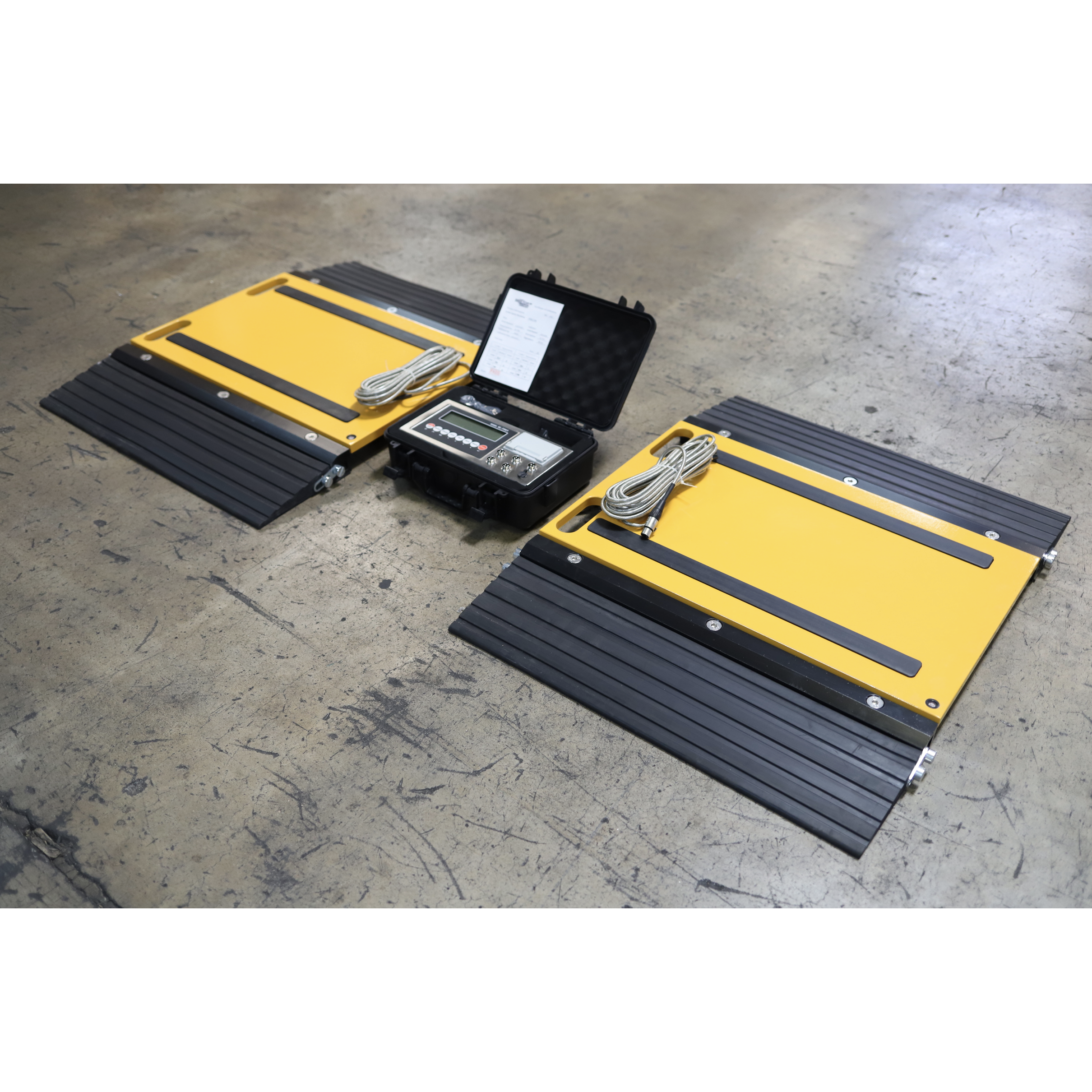

SL-928-1728 Weigh pads system for vehicles, air craft, container 17” x 28” surface 50,000 lb Capacity

Original price $2,999.00 - Original price $7,999.00
Original price
$2,999.00 - $7,999.00
Current price $2,999.00
Request a quote

Indicator features:

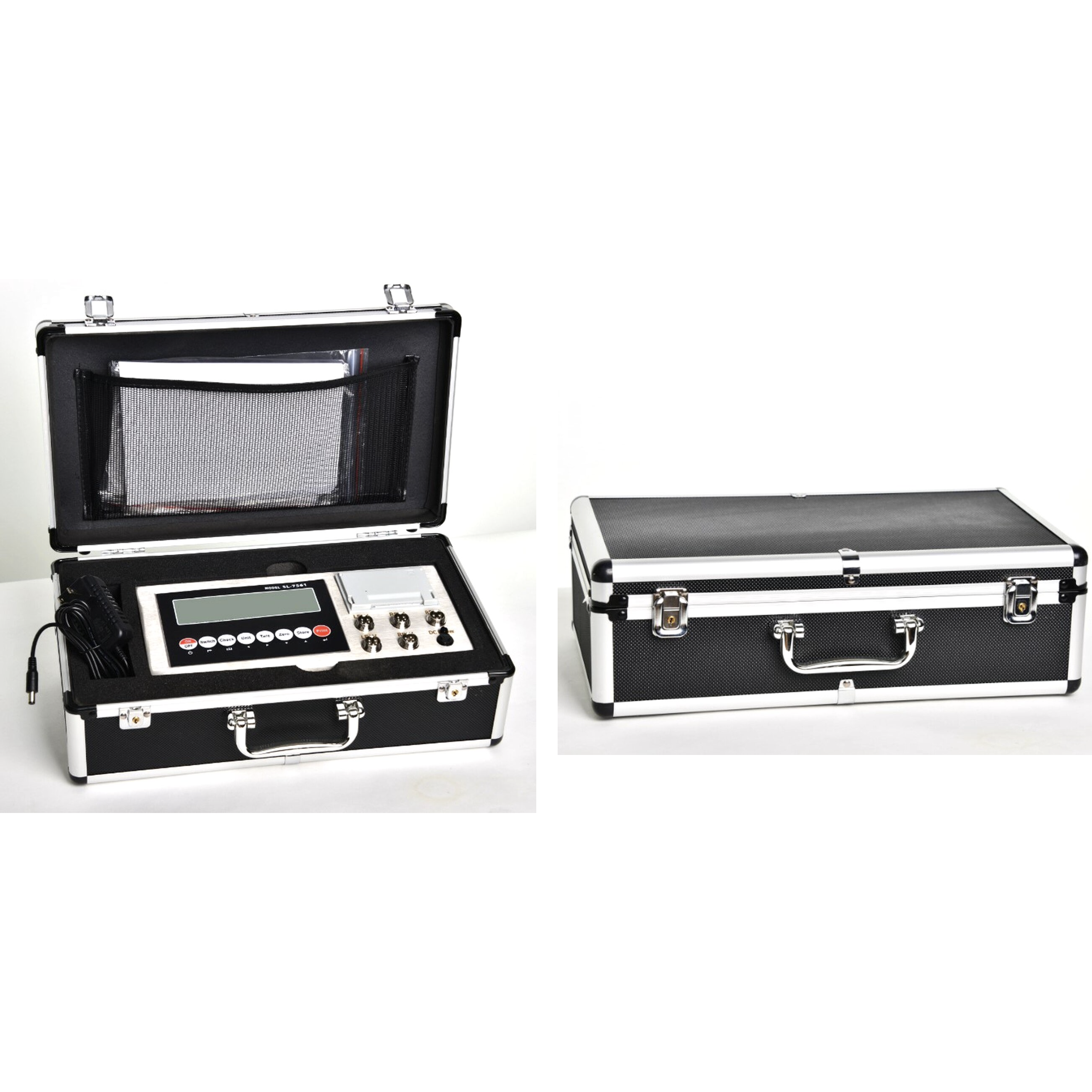

SL-7561 Multi-Channel Briefcase indicator with built-in printer

  • Designed to work with static axle scales
  • Gross weighing and accumulative weighing modes
  • LCD display (size: 5.3in x 1.4in)
  • Tare, Zero, Print, Save, Check, and Delete functions
  • Kg and lb weighing units
  • Built-in needle printer
  • Different printing formats
  • 6v/4.5Ah Battery and 9v/1.2A adapter
  • Can connect to a secondary large display/scoreboard
  • Can connect with up to 4 weighing pads
  • Shows individual scale/pad percentage of the total weight
  • Manual and automatic printing modes
  • Date and time can be set easily
  • Can connect to a PC or printer for data logging
  • Wireless capability (optional)
  • Splash-proof  keyboard and display

Specifications & design:

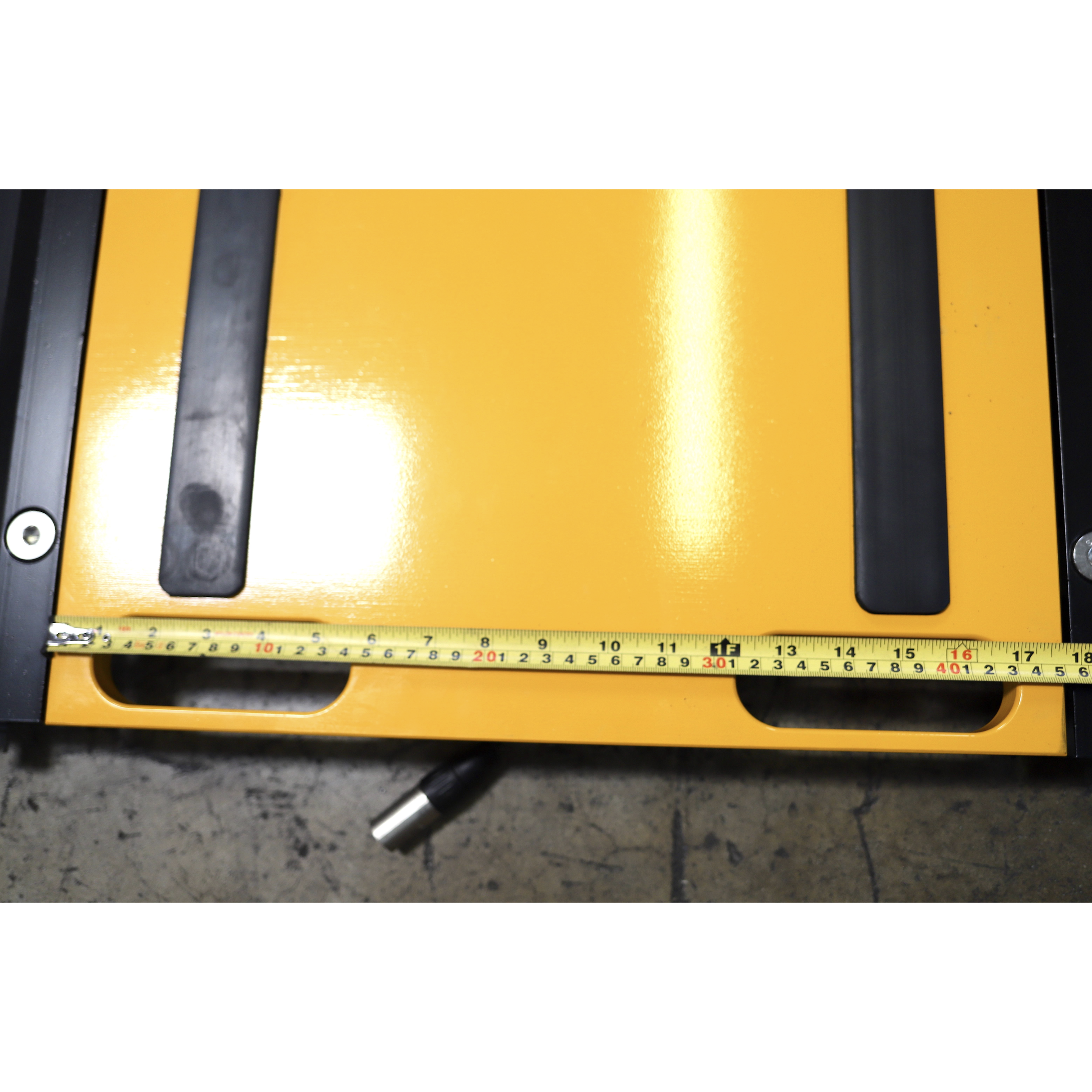

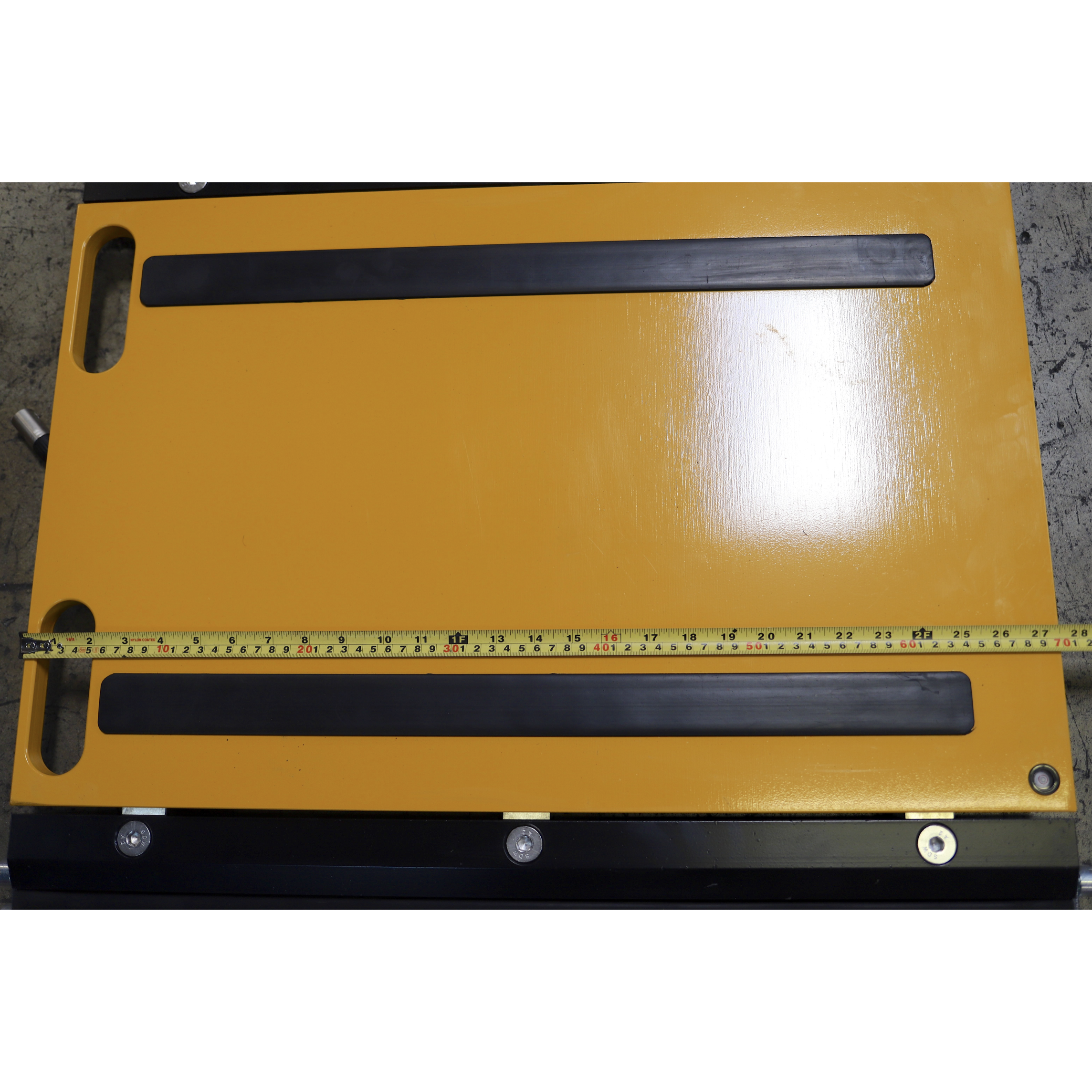

  • Length 17″ x  width 28″ x Height 2″
  • # of load cells: 8 per pad
  • Weight: 60 lbs
  • Capacity per pad: 25,000 lbs
  • Total capacity: 50,000 lbs

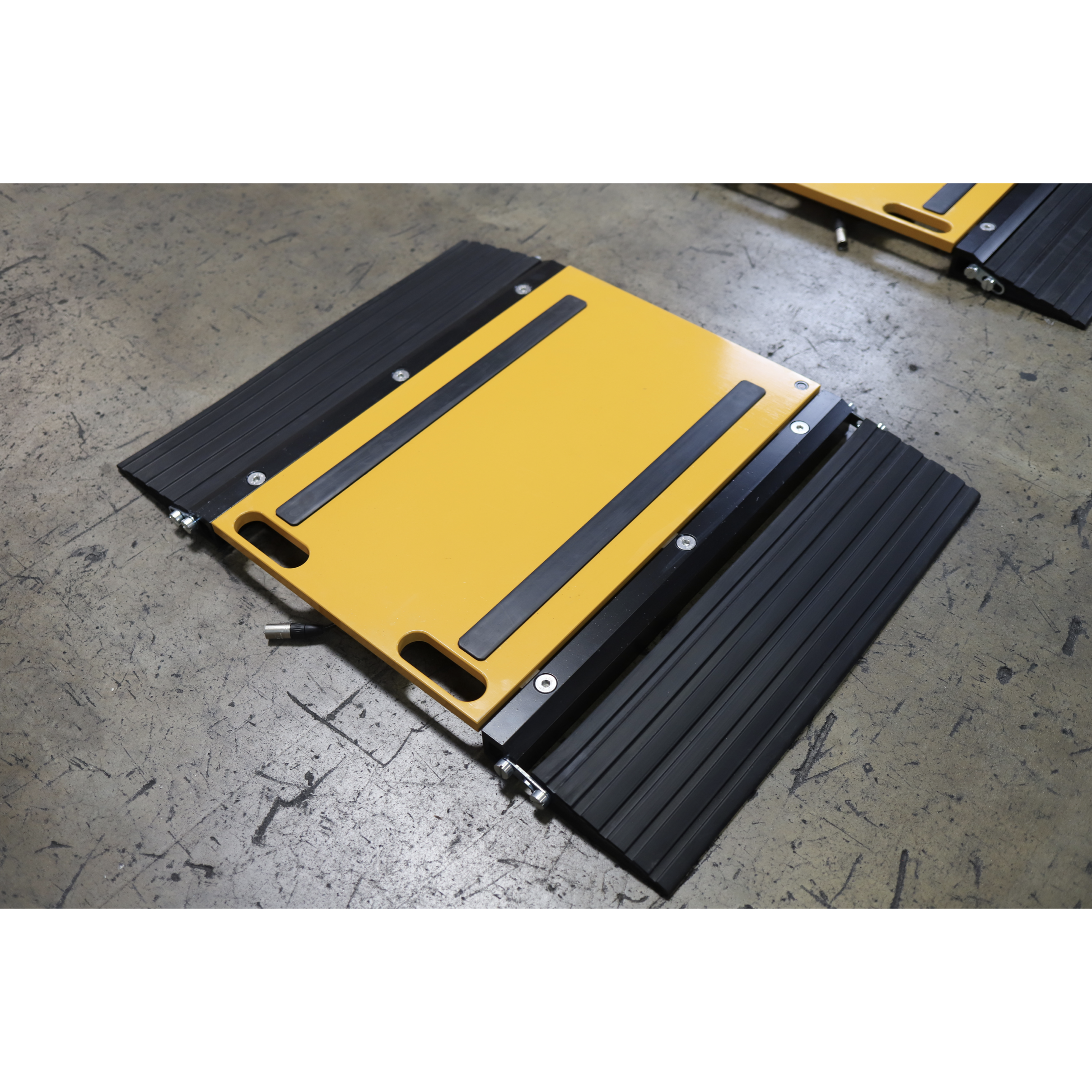

  • Portable, low profile, heavy-duty weigh pads (designed to weigh large vehicles, containers, airplanes, Cargo & much more!
  • customizable with 2, 4, or 6 pads ( wireless )
  • Machined from lightweight, High strength aluminum
  • Comes with a Briefcase indicator & printer

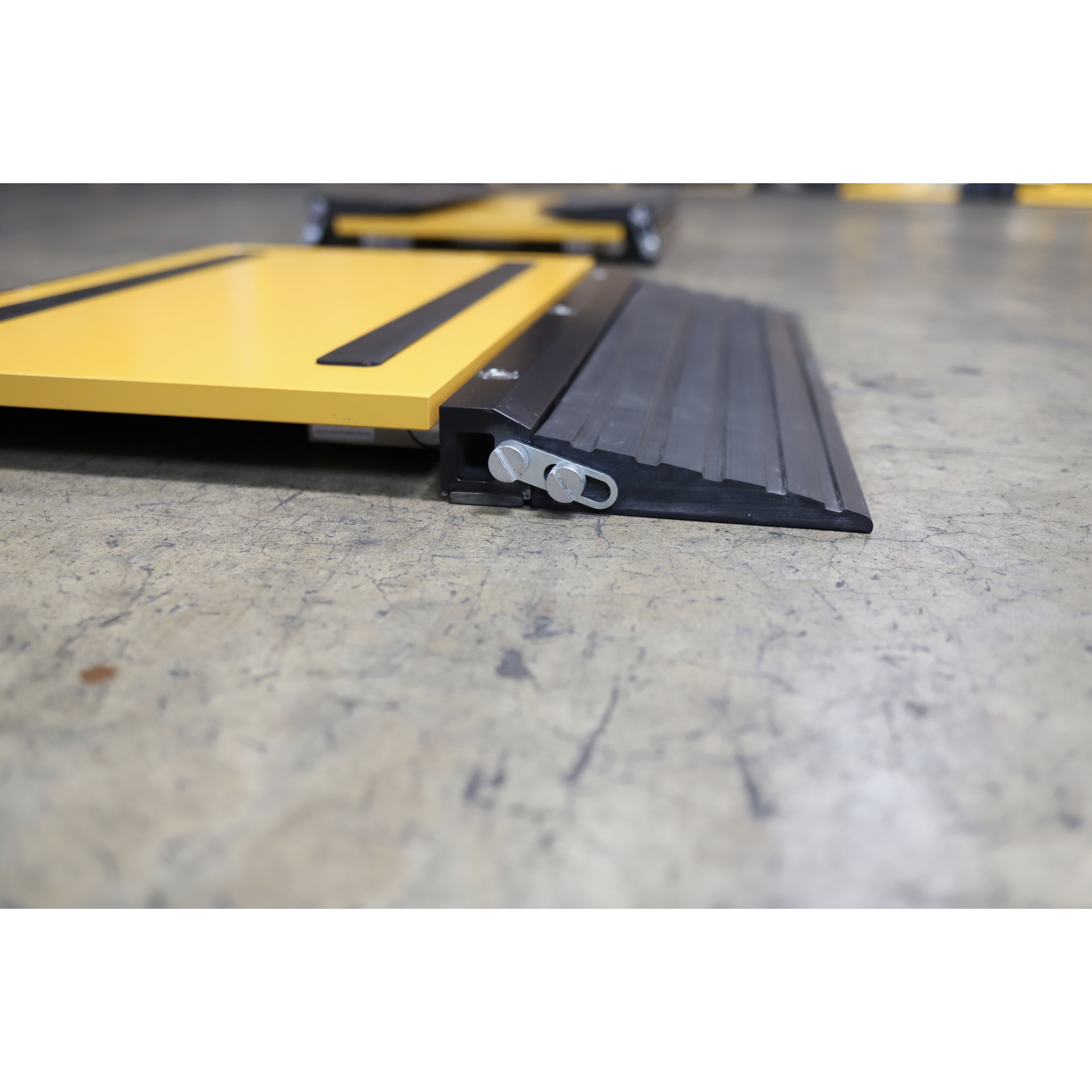

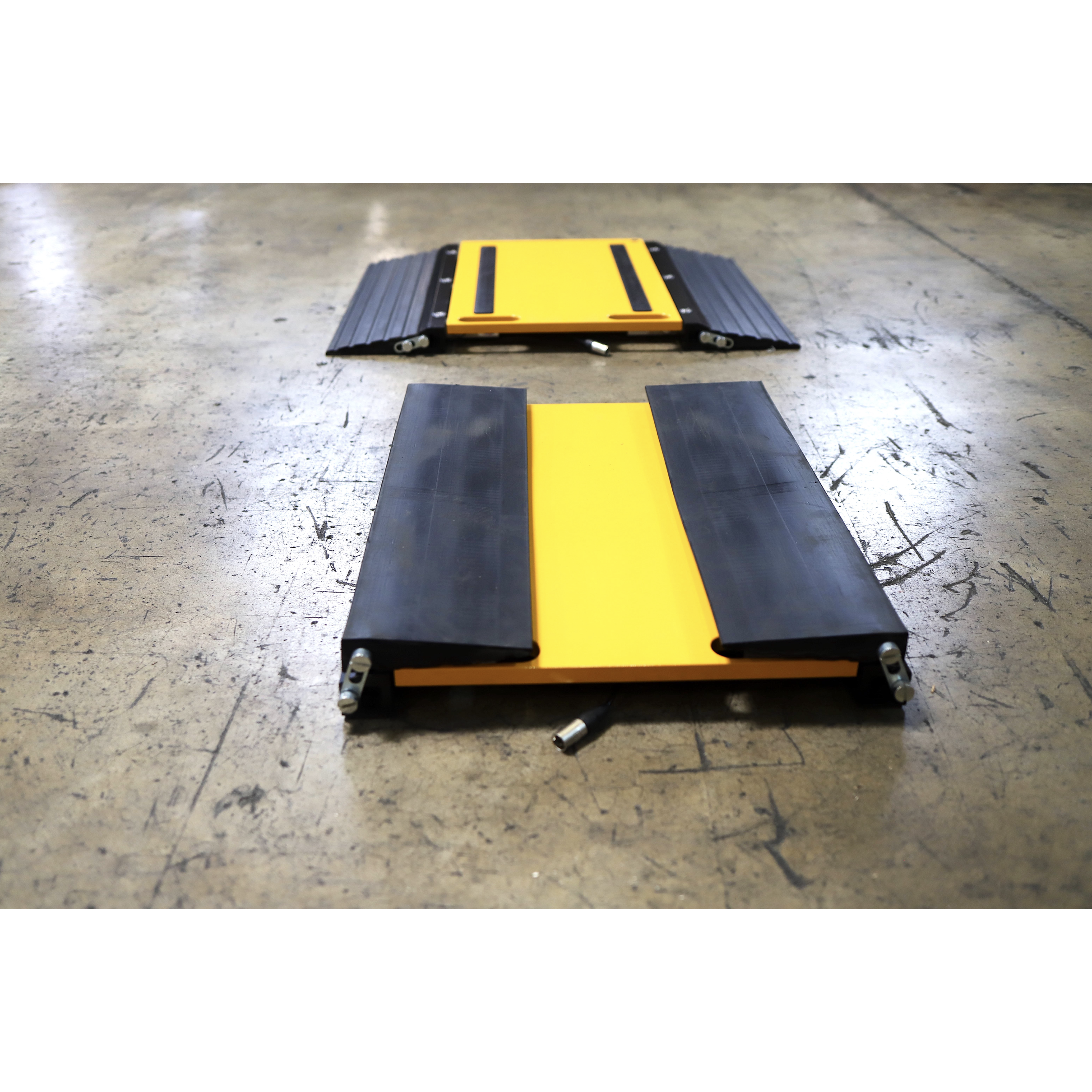

  • Interlocking skid-resistant ramps

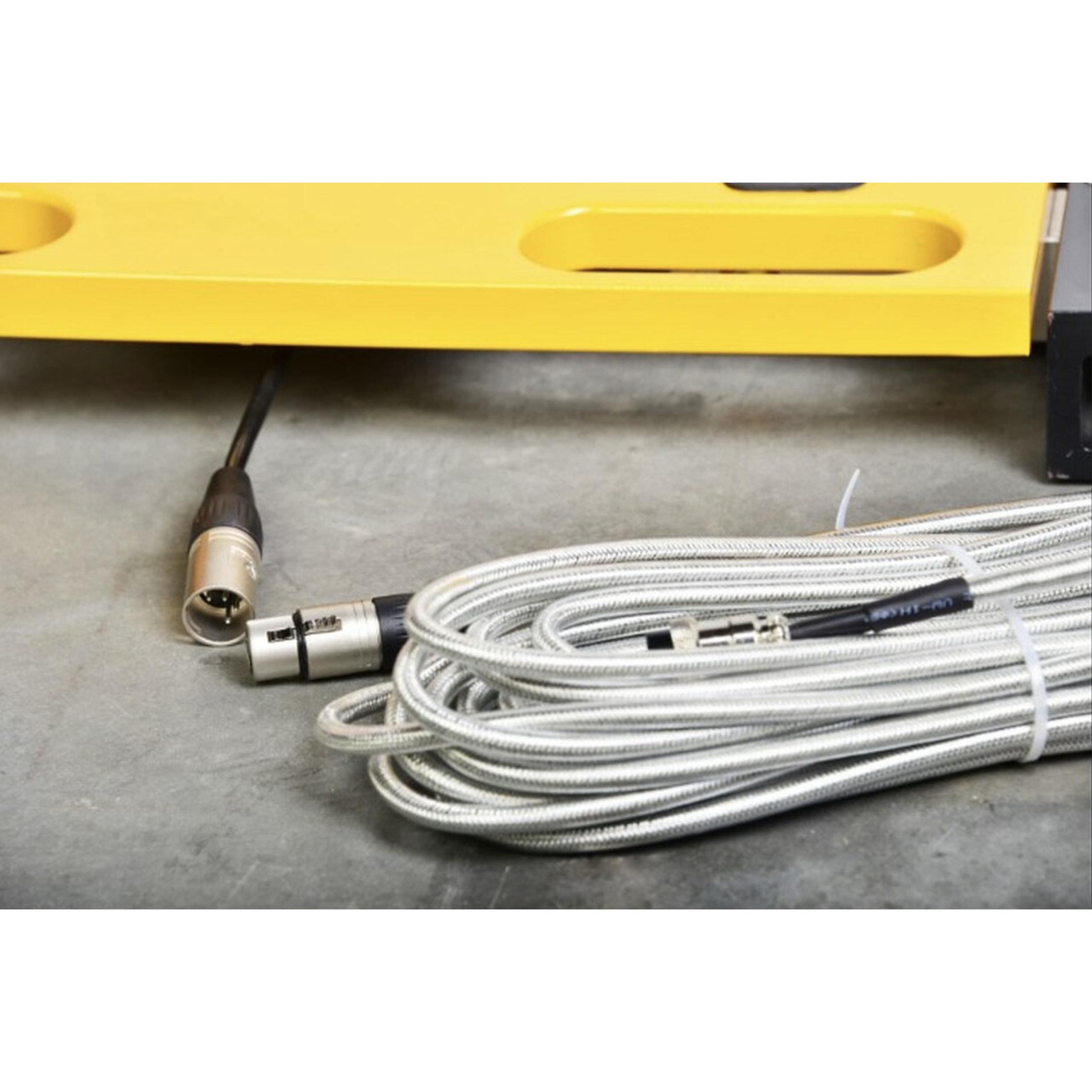

  • 33′ long metal shielded cable
  • 5-year warranty
