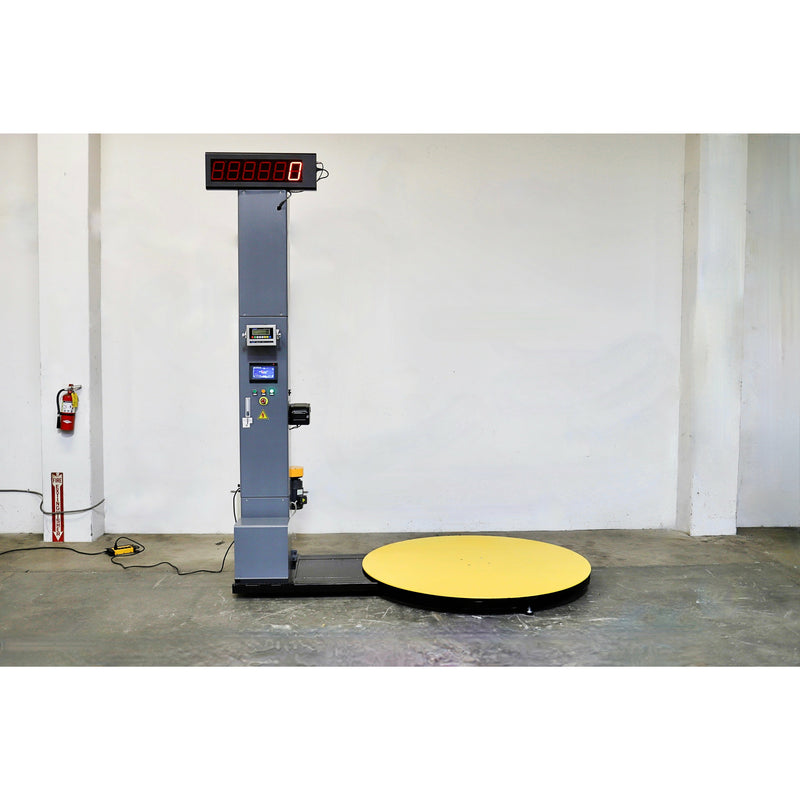

The SellEton SL-K120 Industrial Pre-Stretch Wrapping Machine with Built-in Scale is your comprehensive solution, designed to enhance productivity and accuracy in packaging. This system integrates advanced wrapping capabilities with precise weighing functions, streamlining your process by allowing you to wrap and weigh simultaneously. Ideal for operations where space and time are at a premium, the SL-K120 ensures that your products are securely packaged and accurately weighed in one go, significantly reducing handling time and the potential for error.
Key Benefits:
-
Integrated Weighing System: This system has a built-in scale with a capacity of up to 5000 lbs. It enables you to weigh your pallets as they are wrapped, ensuring accurate shipping weights and reducing re-weigh charges.
-
Enhanced Packaging Efficiency: This machine features a 5’ turntable that can accommodate items up to 8 feet tall and has a maximum speed of 12 turns per minute, increasing your throughput.
-
High Durability and Safety: Constructed with a heavy-duty 3/8” laser-cut steel plate and equipped with an emergency shut-off function, ensuring both the machine's longevity and the operators' safety.
-
Precision Wrapping Control: Programmable wrapping circles and semi-automatic jogging functions allow precise control over the wrapping process, ensuring consistent results.
-

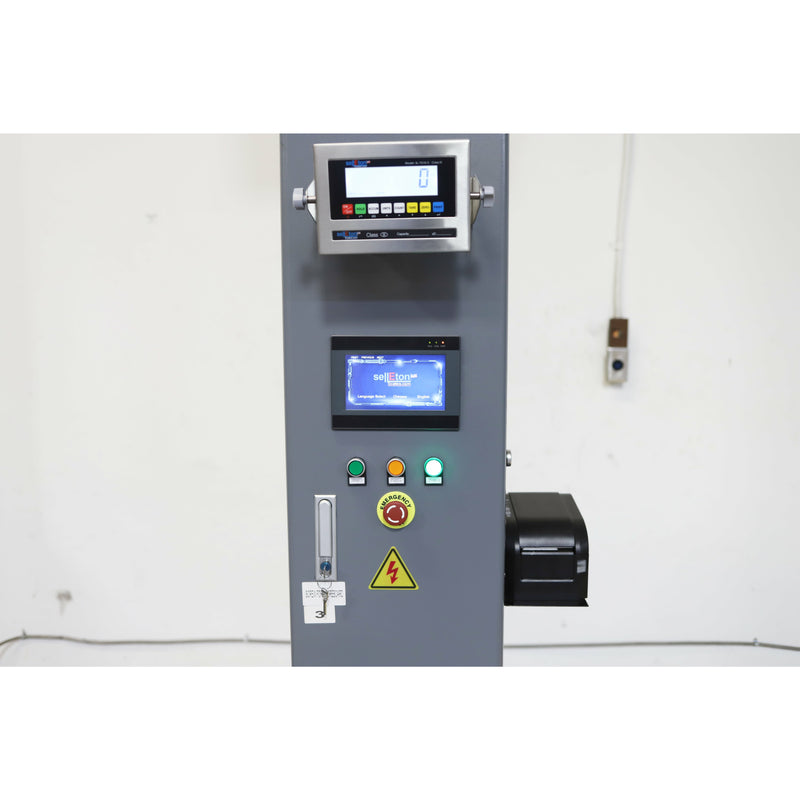

Convenient Features: A touchscreen LCD screen, an easy-to-use SL-7510-SS-C Indicator with advanced functions, and optional features like RF wireless and a ramp for pallet jack use.
-
Reliable Power: It comes with an SL-7510-SS-C Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.
Pallet Dimensioning & Wrapping System – Key Features
-
Purpose-Built: Designed to accurately measure pallet dimensions
-
Display: Large HMI touchscreen LCD for easy operation
-
Construction: Heavy-duty, robust steel-plated design
-
Capacity: 5,000 lb
-
Accuracy: 1 lb
-
Overall Dimensions: 96” (L) x 65” (W) x 108” (H)
-

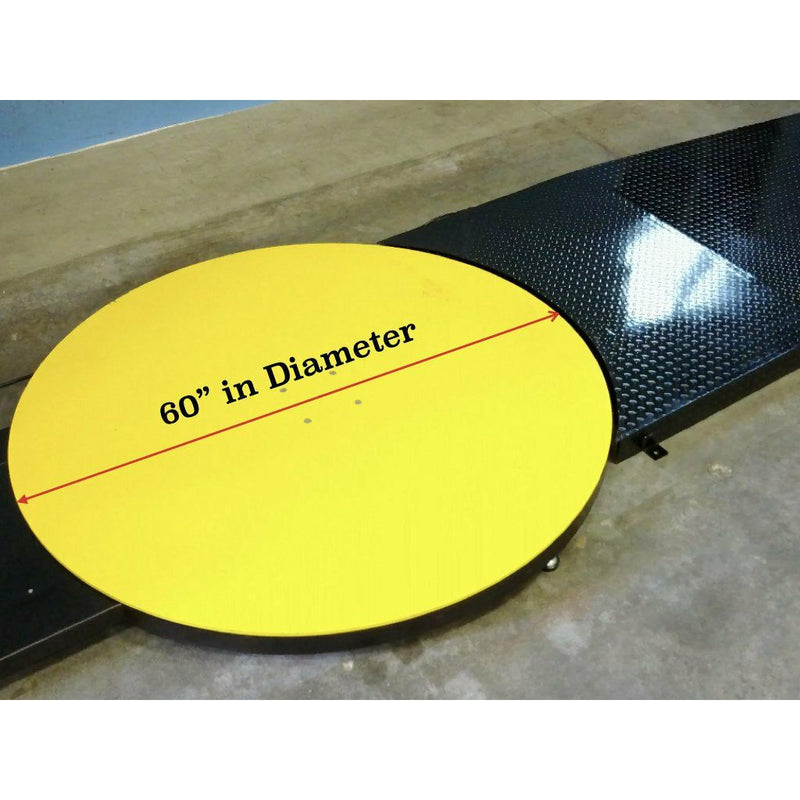

Turntable: 60” (5-foot) diameter
-
Wrapping Height: Up to 96” (8 feet)
-
Steel Plate Thickness: 3/8”, laser-cut for precision
-
Turntable Speed: 12 rotations per minute
-
Motor: 1/3 HP DC-controlled drive motor with 1/2 HP horsepower motor
-
Power Requirements: 110V, 60 Hz
-
Position Sensing: Low-profile proximity position sensor
-

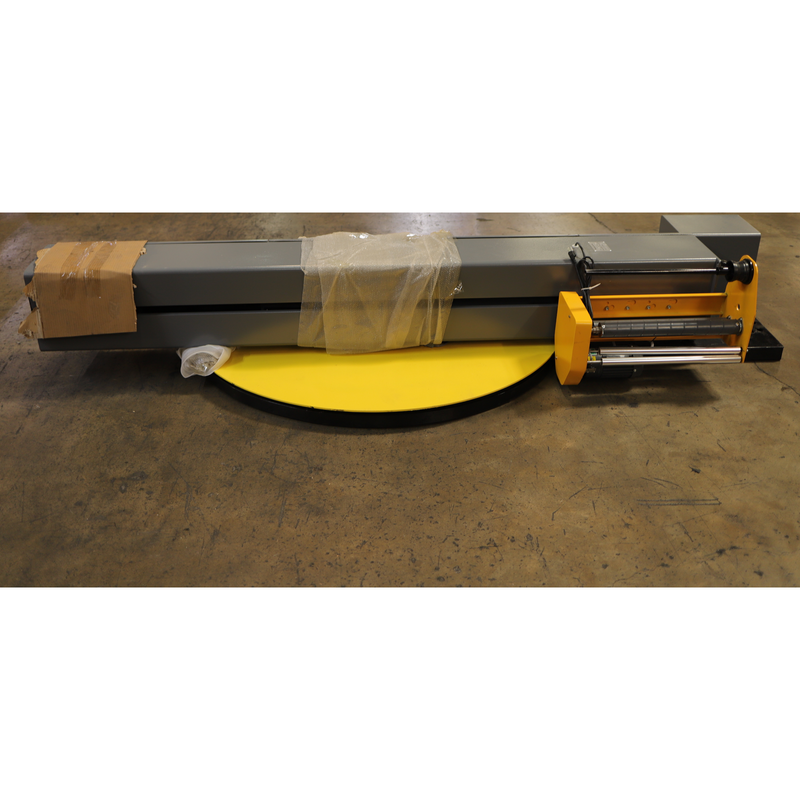

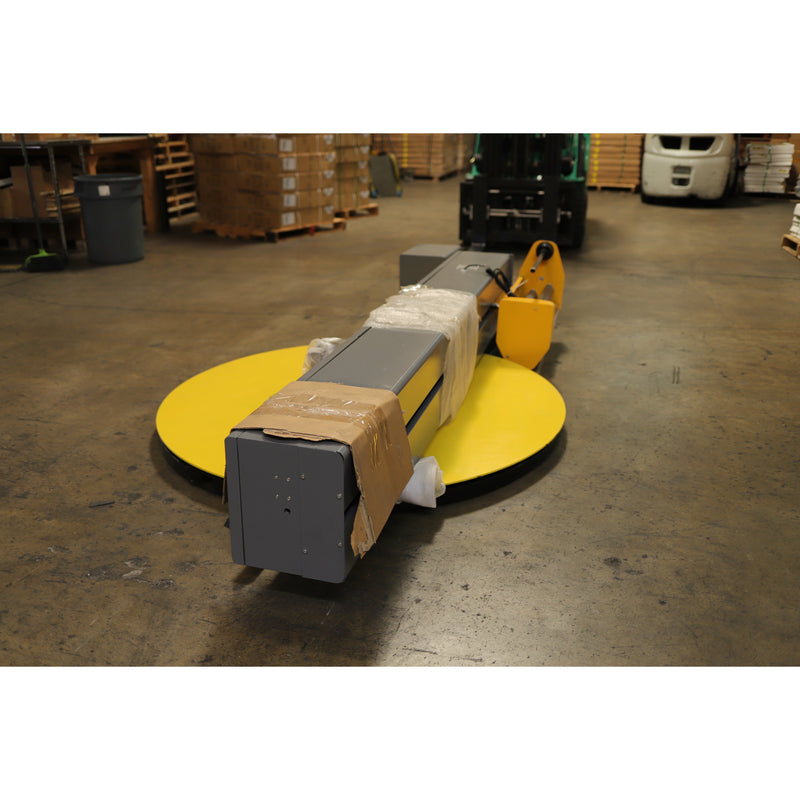

Mobility: Forklift channels for easy transport
-

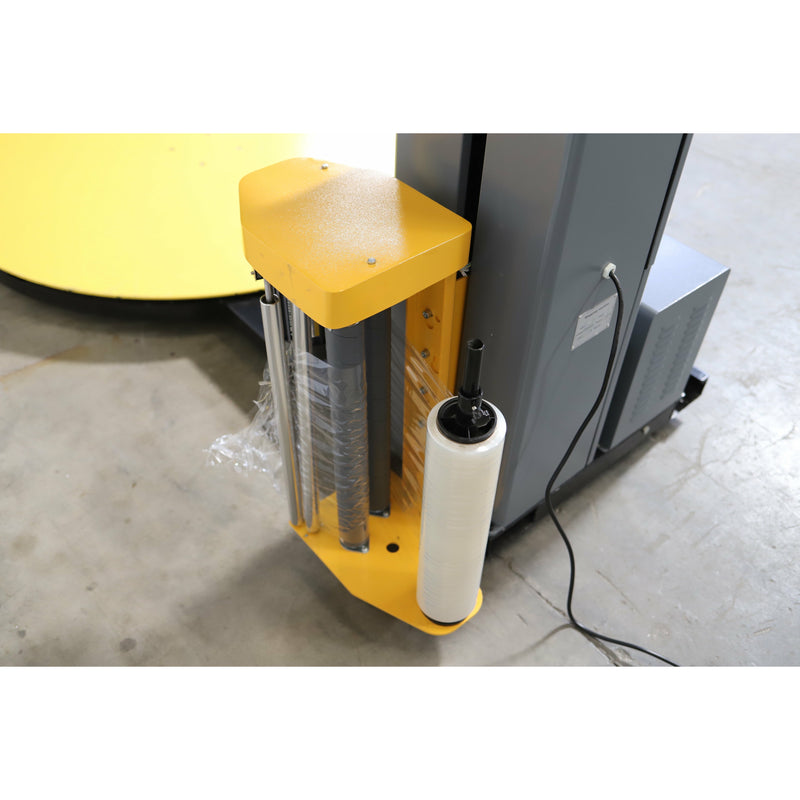

Film Stretch System: Adjustable tension up to 120%
-
Film Compatibility: Uses 20” film with stabilizer roller
-
Automation: Photo-eye sensor with adjustable sensitivity
-
Wrapping Cycles: Programmable for customized operations
-
Operating Modes: Semi-automatic wrapping functionality
-
Manual Controls: Carriage movement via up/down buttons
-
Safety: Emergency shut-off switch included
-
Maintenance-Free: No lubrication required for power system
-
Durability: Dual-sealed double bearing system
-
Drive System: 12” flywheel for reliable performance
-
Warranty: 5 years Excluding damages

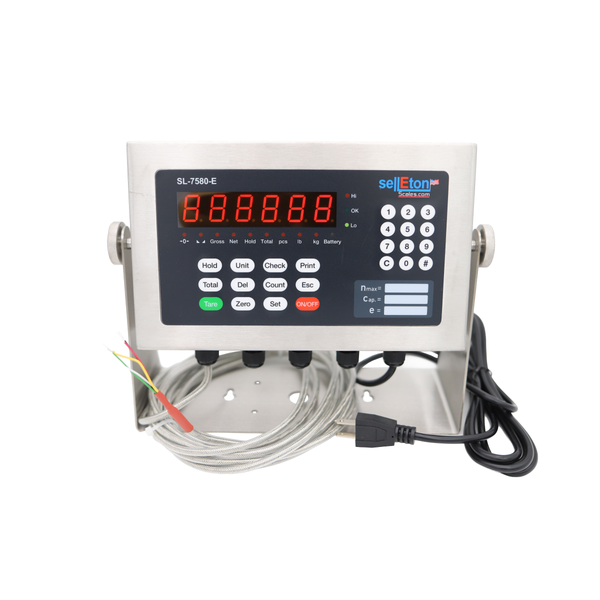

Indicator Key Features:
-
Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
-
Power Options: Includes an AC adapter; optional battery available.
-
Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
-
Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
-
Alarms: Features overload/underload alarms and an automatic error warning alarm.
-
Di "play: 1" LED or LCD with backlight; displays up to 50,000 graduations.
-
Connectivity: Capable of connecting to a remote display and multiple printers.
-
Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
-
Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
-
Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

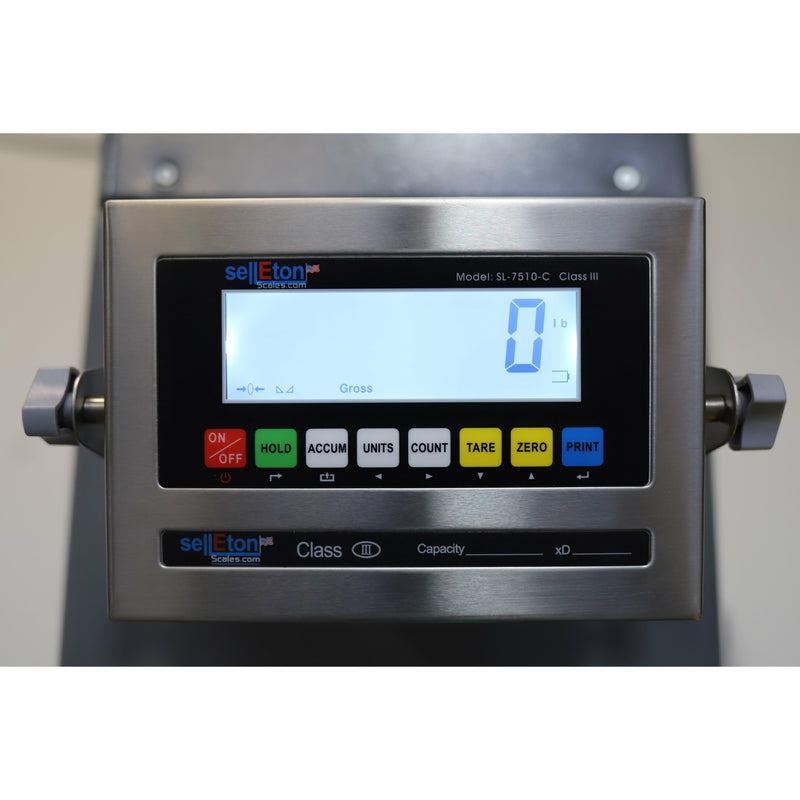

Indicator Specifications:
-
Display: LCD or LED, 1-inch with a 6-digit numeric readout.
-
Units: lb, kg (primary), oz, g (LCD only).
-
Accuracy: Class III, 5,000 e.
-
Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
-
Excitation Voltage: 5V DC.
-
Output Current: Max 120 mA.
-
Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
-
Display Resolution: 30,000; ADC: 2,000,000.
-
Zero Stability Error: TKspn < ± 6 ppm/K.
-
Sensitivity: Internal 0.3 μV/d.
-
Input Voltage: -30 to +30mV DC.
-
Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
-
Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
-
Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
-
Display Increment: Selectable 1, 2, 5, 10, 20, 50.
-
Decimal Point: Selectable 0, 1, 2, 3, 4.
-
Conversion Rate: 12 samples/second typical.
-
Analog Signal Input Range: 1mV / V to 3mV/V.
-
Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
-
Measurement Rate: 0~15mV.
-
Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for SL-K120 Industrial Pre-Stretch Wrapping Machine with Built-in Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
-

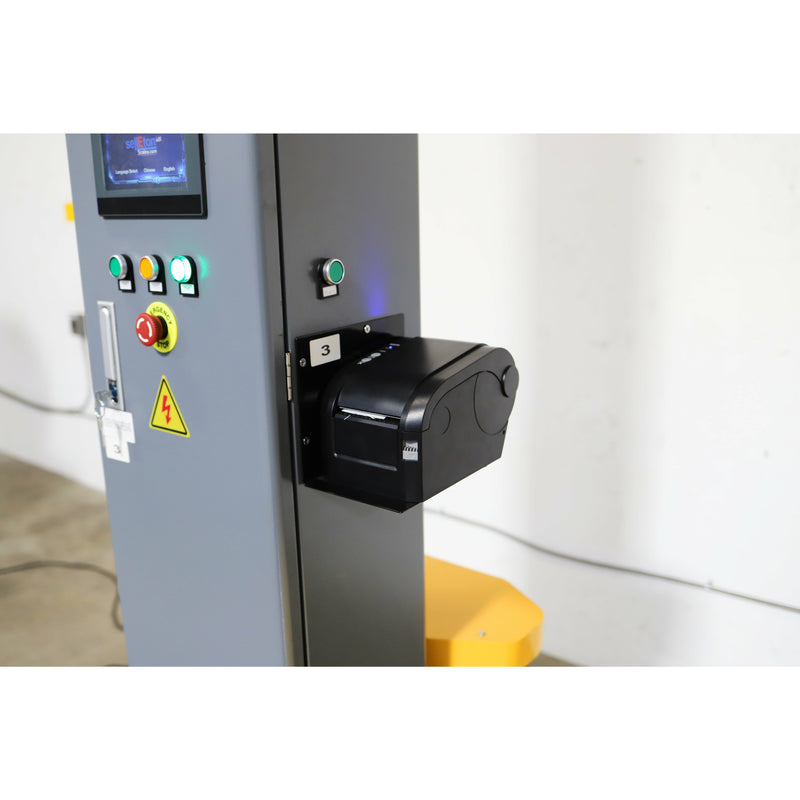

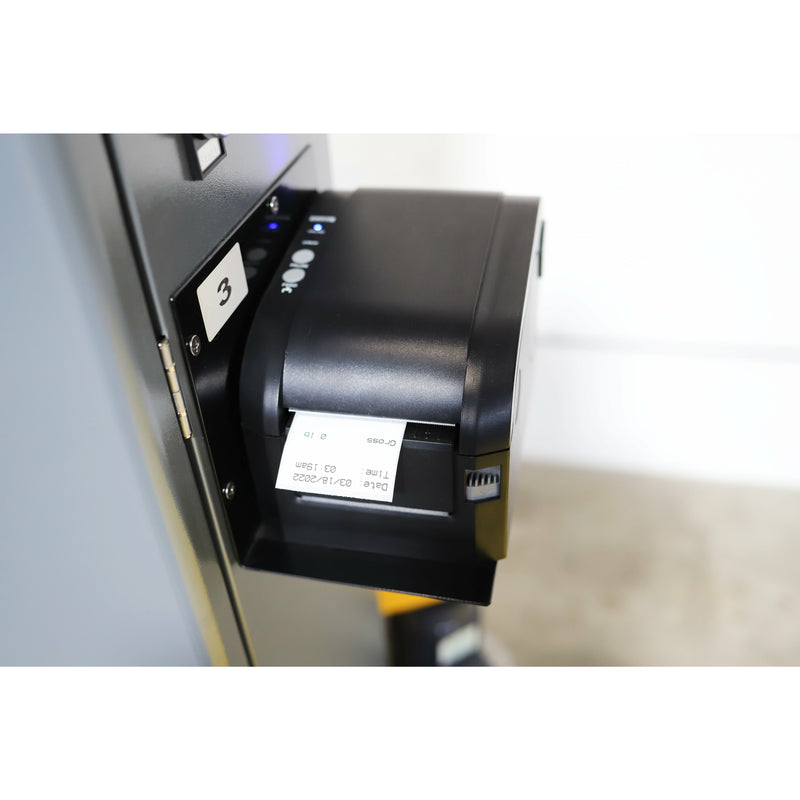

Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-

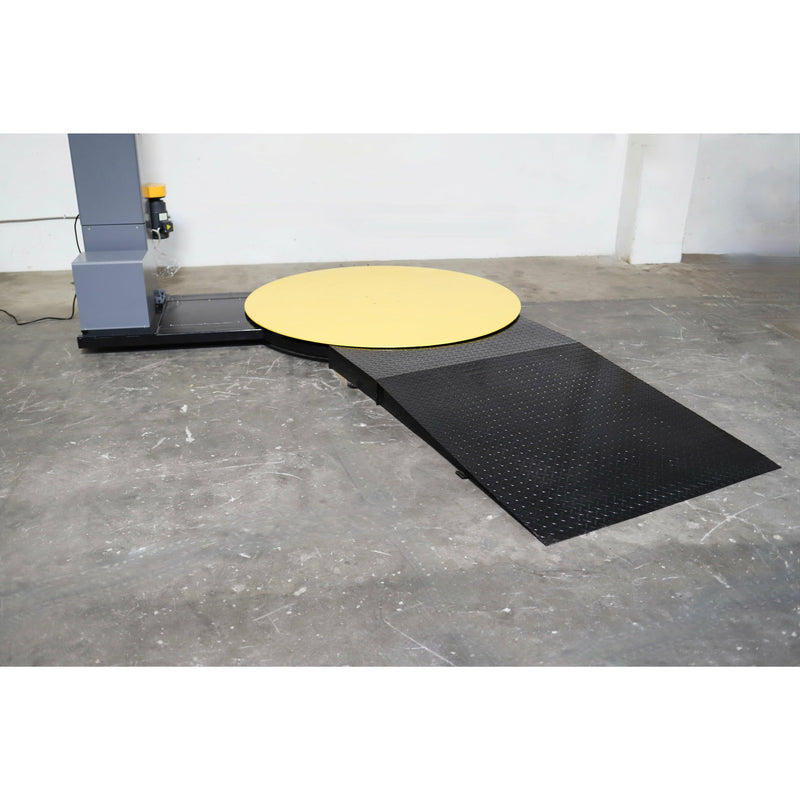

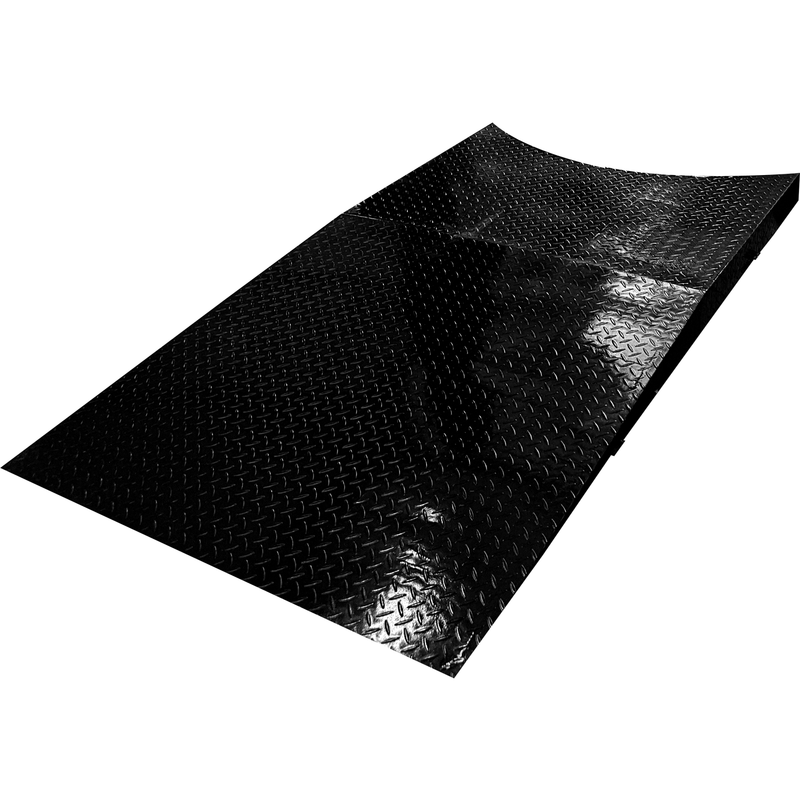

Ramp Access: Implement optional ramps to facilitate simple and safe loading and unloading using carts or pallet jacks.
-

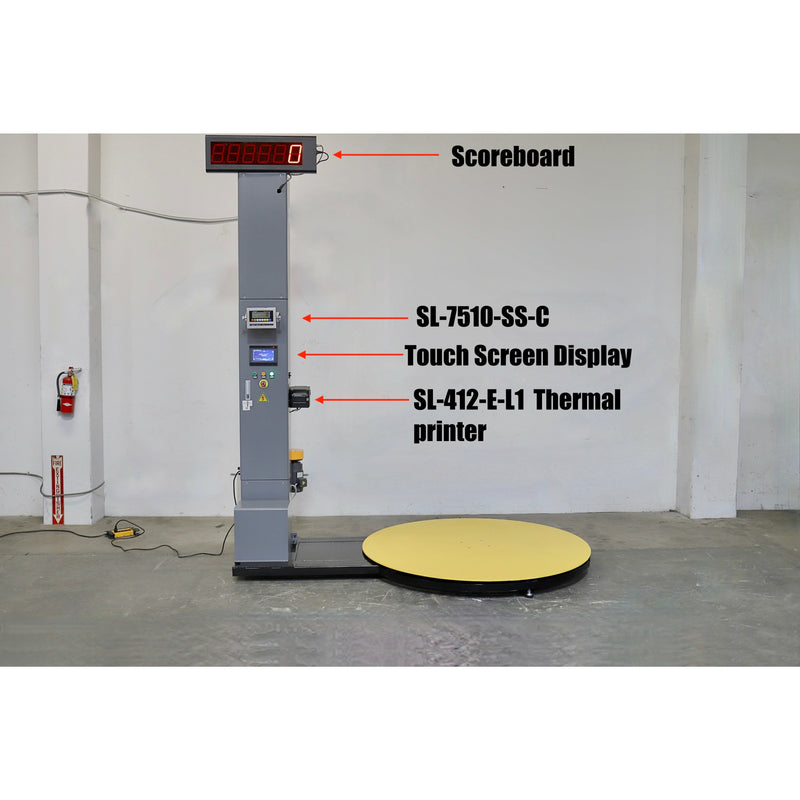

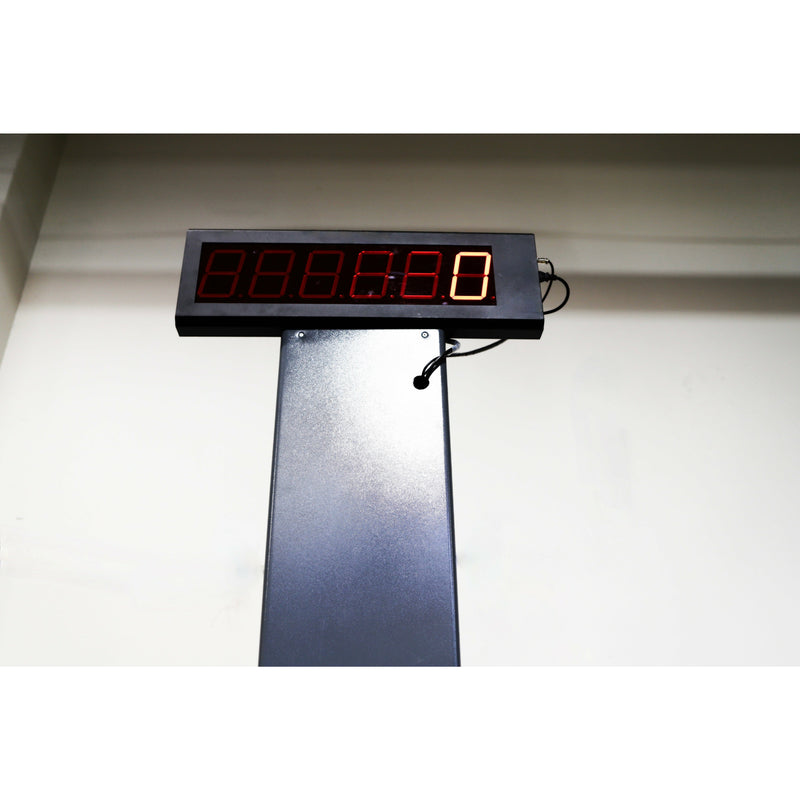

Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminum.
When you choose the SellEton SL-K120 Wrapping Machine, you’re not just buying a piece of equipment but investing in a smoother, faster, and more reliable packaging process. Feel the satisfaction of knowing that your industrial packaging operations are optimized to meet the demands of modern logistics with high-quality and certified truck weight scales. Enhance operational efficiency and reduce costs with this all-in-one, maintenance-free solution that guarantees precision and ease in every cycle.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
