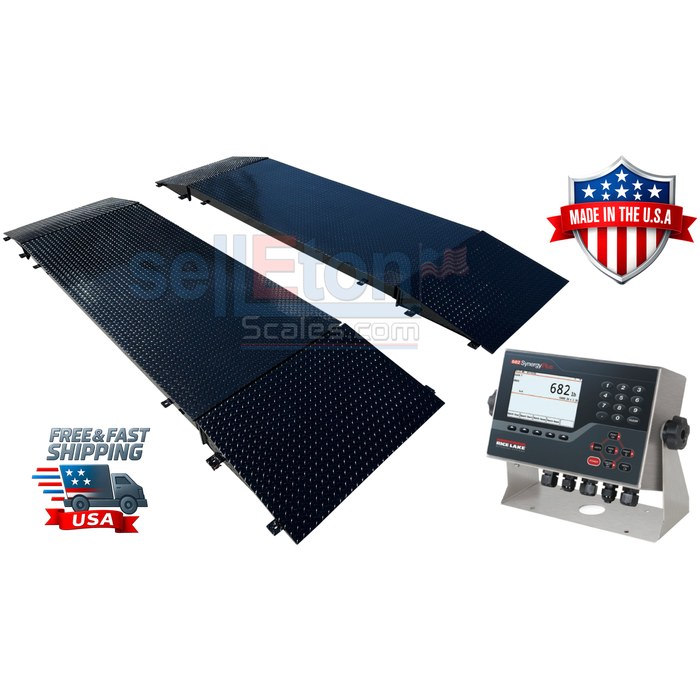

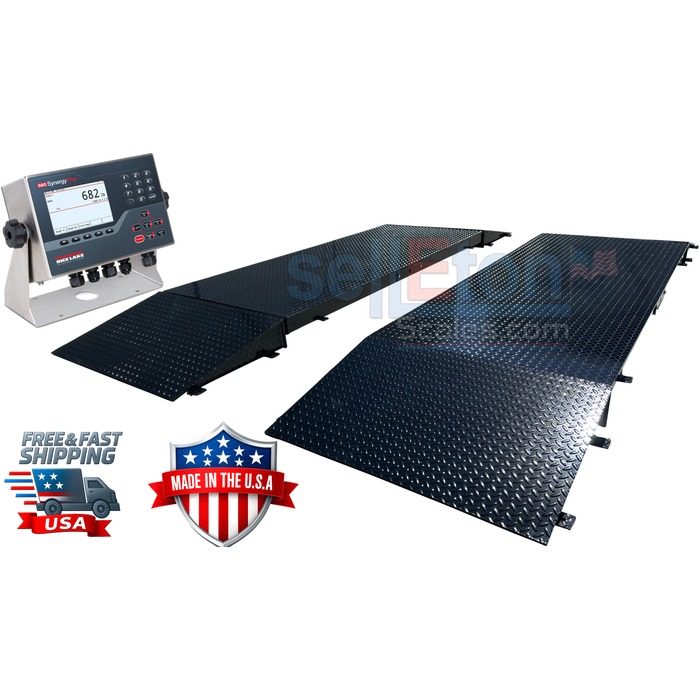

SellEton's robust axle scale lineup—SL-AXL682SP-7, SL-AXL682SP-12, and SL-AXL-682SP-10x10—provides dependable and accurate axle load weighing, ideal for agriculture, trucking, construction, waste management, and more. When combined with the Rice Lake 682 Synergy Plus digital indicator, these systems offer industrial-grade performance with intuitive operation.
✅ Axle Scale Models & Capacities
-
SL-AXL682SP-7 – 7' Axle Scale, 60,000 lb Capacity
-
SL-AXL682SP-12 – 12' Axle Scale, 80,000 lb Capacity
-
SL-AXL-682SP-10x10 – 10’ x 10’ Axle Scale, 60,000 lb Capacity
Each model is constructed with a heavy-duty steel deck and integrated load cells for high-accuracy readings. Whether you're weighing single or dual-axle trucks, these platforms deliver reliable performance in harsh, high-traffic environments.
🧠 Smart Technology: Rice Lake 682 Synergy Plus Indicator
Designed for modern industrial weighing, the 682 Synergy Plus is a stainless steel, IP69-rated digital indicator that combines rugged construction with a 5-inch full-color LCD and advanced communication options.
🔁 Built-In Truck Weighing Mode
Perfect for axle scale use, the 682 offers a built-in Truck In/Out mode to capture gross, tare, and net weights. Each transaction logs truck ID and data for streamlined printouts and traceability.
🔍 Key Features at a Glance
-
Bright 5" Color LCD Display with Softkeys
-
Numeric Tactile Keypad
-
Multi-Language Interface
-
Formattable Tickets + Time/Date Stamp
-
Built-in Truck In/Out Application
-
Integrated Web Server for Remote Access
-
IP69 Stainless Steel Enclosure
-
4 Configurable TTL Digital I/Os
-
RS-232, RS-485, Ethernet, Wi-Fi, Bluetooth® Communication
⚙️ Available Options
-
16-bit Analog Output (0–10 VDC, 0–20 mA, 4–20 mA)
-
Relay and Dual Serial Cards
-
RJ45 Ethernet Port
📐 Technical Specifications
| Power Input |
100–240 VAC, 50–60Hz / 9–23 VDC |
| Power Consumption |
~3.2W (1 × 350Ω) to 15W max |
| Excitation Voltage |
10 VDC ±5%, Supports 8×350Ω or 16×700Ω |
| Input Range |
-5 mV to +70 mV |
| Sensitivity |
0.3 µV/div min (1 µV/div recommended) |
| Sample Rate |
6.25–120 Hz, software-selectable |
| Internal Resolution |
8,000,000 counts |
| Display Resolution |
1,000,000 counts |
| System Linearity |
Within 0.01% Full Scale |
| Display |
5" LCD (800×480), 500 NIT |
| Operating Temp |
Legal: 14°F–104°F, Industrial: up to 122°F |
| Dimensions |
11.6" W × 8.6" H × 4.0" D |
| Enclosure |
AISI 304 Stainless Steel, IP69 Rating |
| Weight |
6.25 lbs (2.84 kg) |
