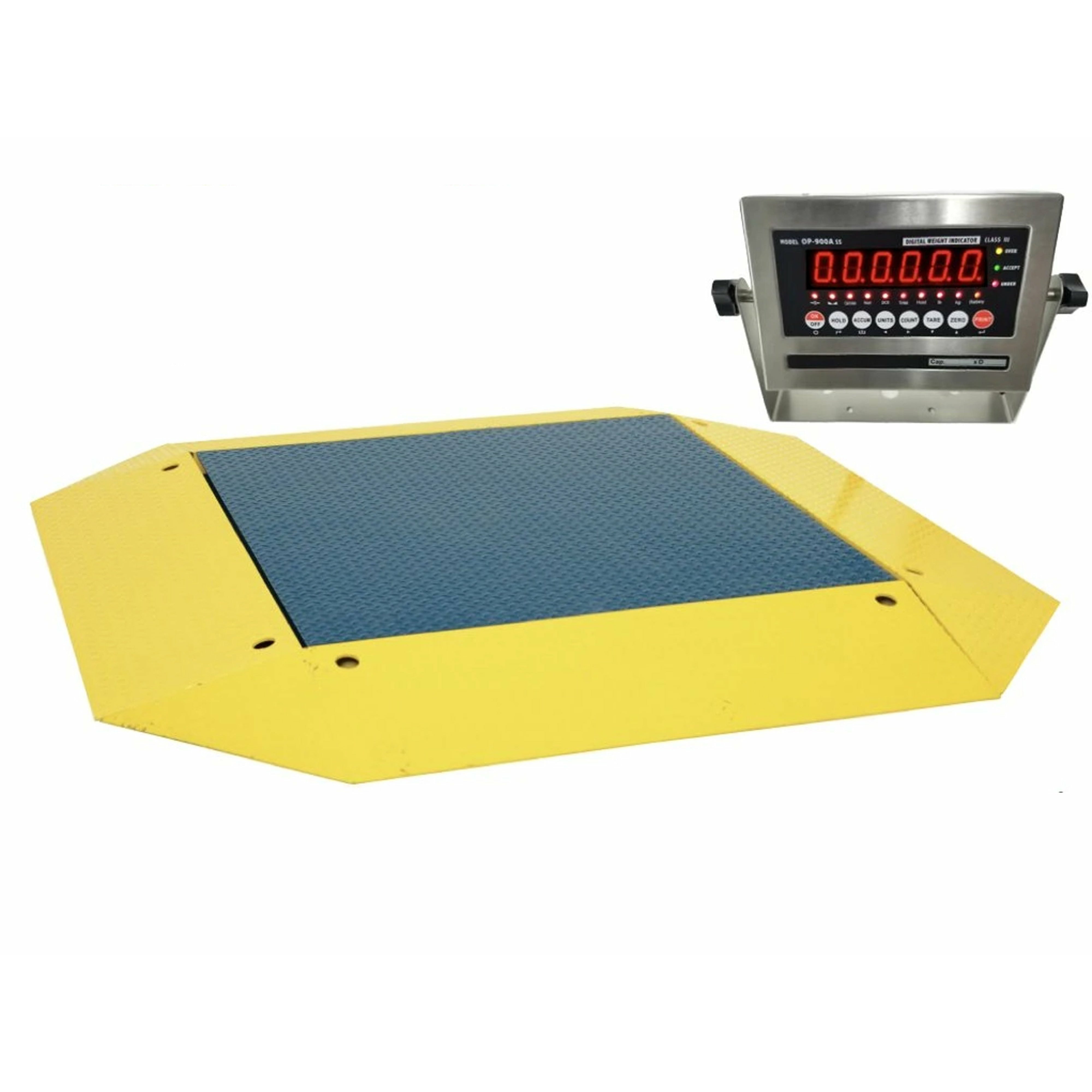

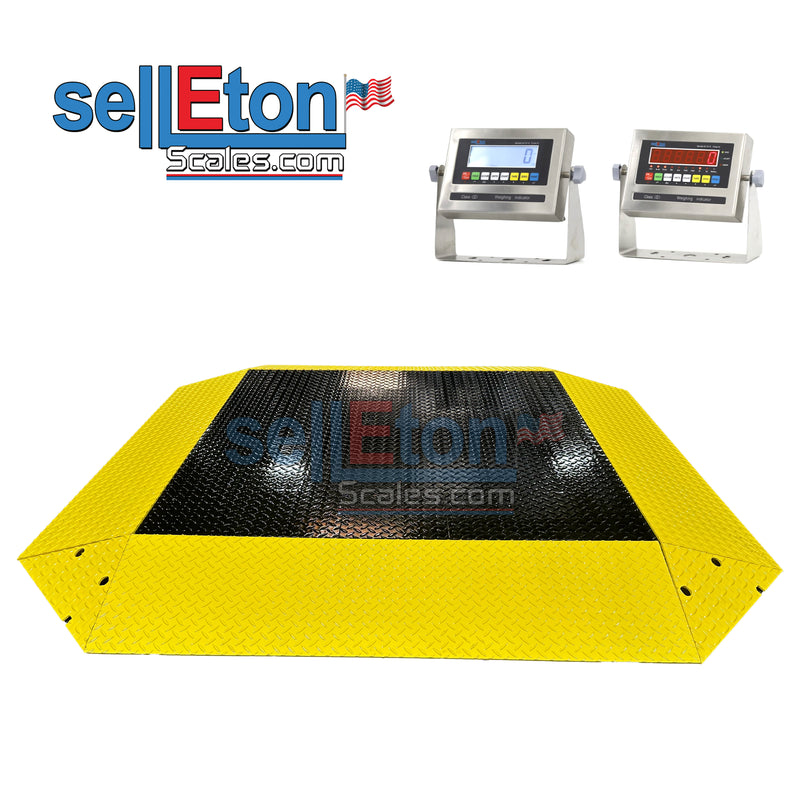

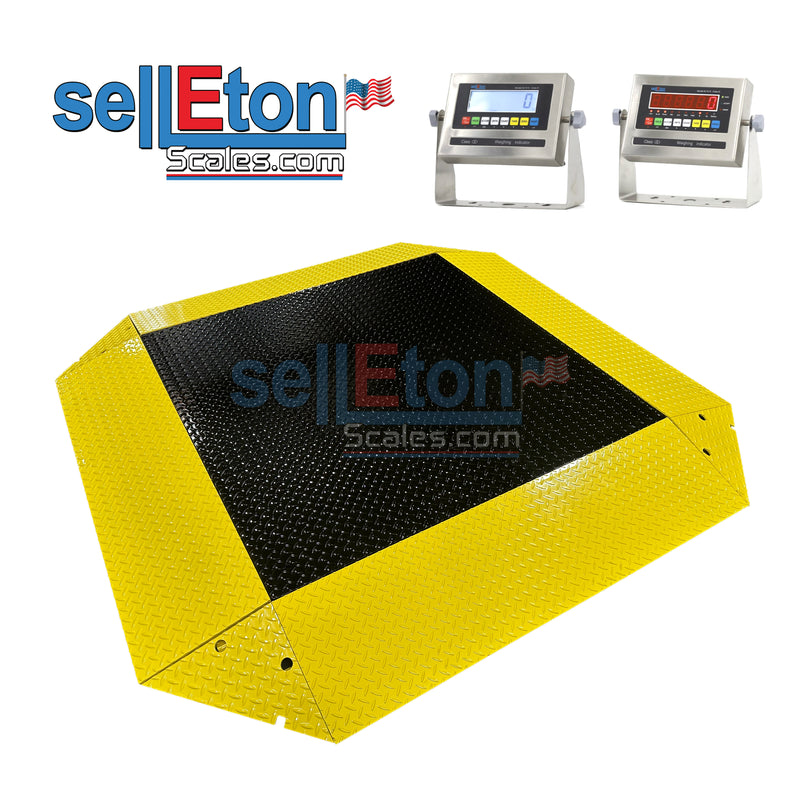

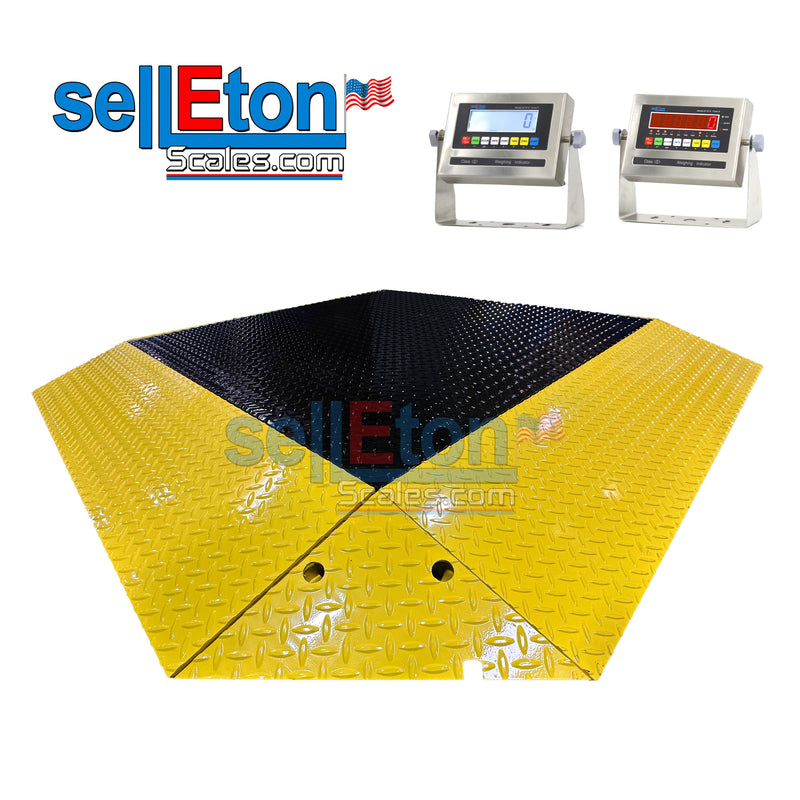

SellEton SL-960-4x4 Low Profile 4' x 4' Pancake Scale

Tired of the slow and cumbersome process of weighing multiple pallets daily?

The SellEton SL-960-4x4 Low Profile Pancake Scale is your ideal solution, speeding up the weighing process with remarkable efficiency. This robust scale is perfectly engineered to handle the demands of frequent truck and vehicle weighing, making it an indispensable tool for businesses shipping 20-30 pallets daily.

Key Benefits:

• Versatile Accessibility: The scale can be entered from any direction with wrap-around ramps, making it accessible even with a pallet jack.
• High Capacity: 10,000 lb capacity to suit your business needs.
• Durability: Constructed with a 1/4" thick steel top plate and reinforced with 6-channel steel bracing for longevity and resilience.
• Precision and Protection: This model features alloy steel load cells and 200% overload protection to ensure accurate readings and prevent damage under heavy loads.
• Convenience: The low-profile design is less than 3” high, and the ramps eliminate the need for a scale pit, simplifying setup and relocation.
• All-Weather Use: It is designed for both indoor and outdoor use and coated with a durable powder finish to withstand various elements.
• Reliable Power: It comes with an SL-7510-SS Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
• Additional Features: Power saving mode, automatic date, and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the SL-960-Pancake Scale

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.

Imagine a streamlined operation where weighing trucks and vehicles is no longer a bottleneck. With the SellEton SL-960-4x4, you'll experience a significant reduction in processing time, enhancing productivity and operational efficiency. This high-quality, certified truck weight scale accelerates your workflow and instils confidence in every transaction. Upgrade to the SellEton SL-960-4x4 and transform your daily operations into a seamless, swift, and secure process.

Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.

Attention:

If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.

Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
