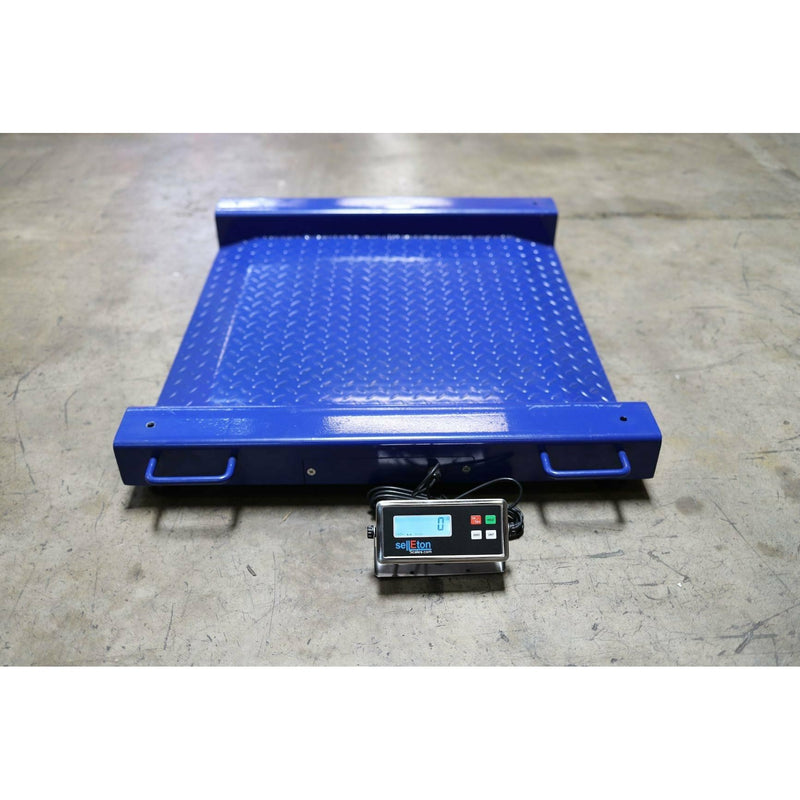

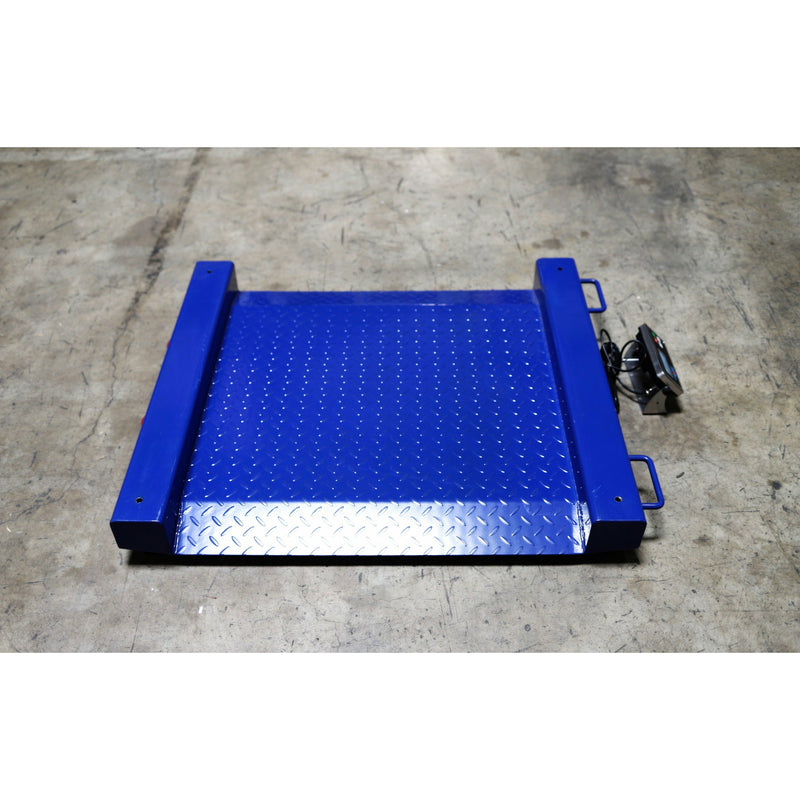

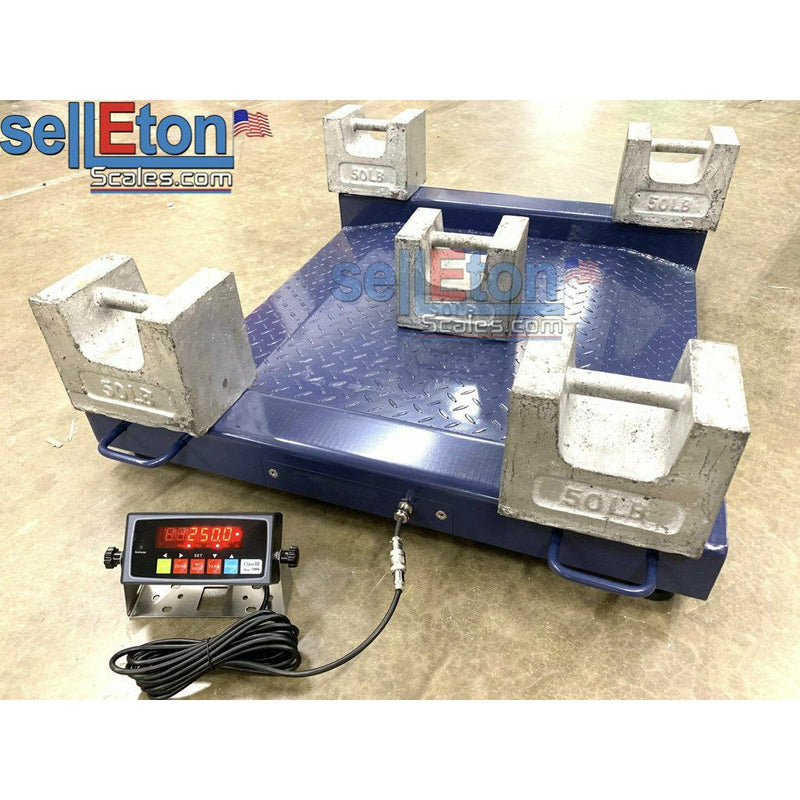

SL-917-30x21 Portable Drum Scale

The SL-917-30x21 is a low-profile portable drum scale in matte blue with 6 in ramps built into the rails, for drums and dollies. The 1,000 lb x 0.2 lb option is NTEP certified. Roll the load on, read the weight on the SL-7510-C-02 indicator, and move the scale on its side wheels when you are done.

Key features

• Easy roll-on. 6 in ramps at each end of the plate for drums and dollies.
• Keeps the load in place. Live side rails and safety bars.
• Accurate. Four alloy steel shear beam load cells.
• Portable. Side handles and wheels for moving and storing the scale.
• Sure footing. Diamond tread plate deck and four silver feet.

Capacities

Pick the capacity in the drop down above.

Specifications

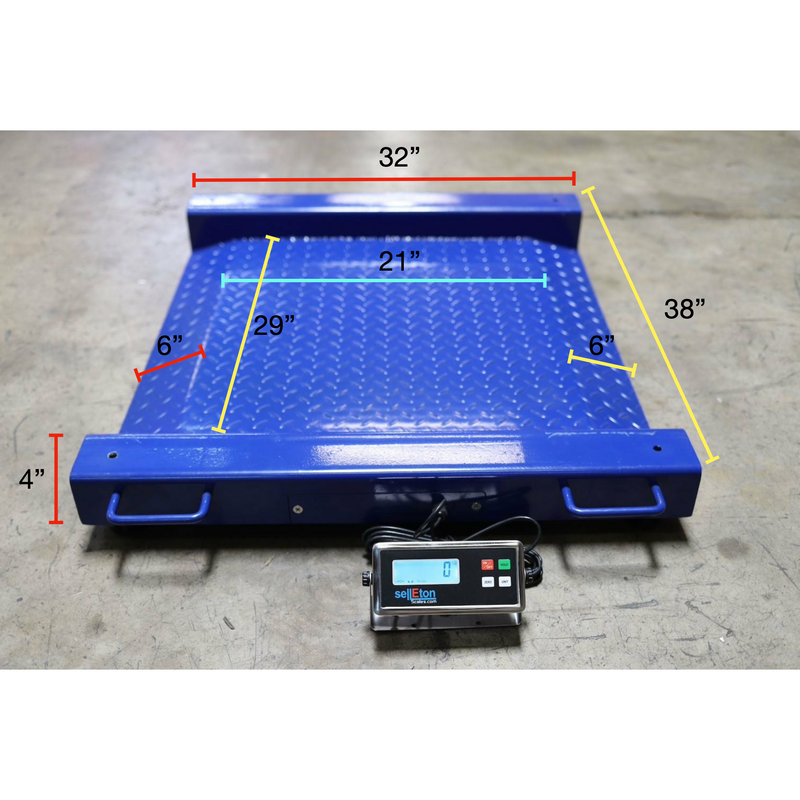

• Plate: 30 x 21 in (L x W)
• Overall size: 38 x 33 in (L x W), with 6 in ramps at each end of the plate
• Finish: Matte blue
• Deck: Diamond tread plate
• Load cells: Four alloy steel shear beam
• Junction box: ABS, NEMA 4X
• Feet: Four silver feet
• Cable: Stainless steel braided cable
• Indicator: SL-7510-C-02
• Certification: NTEP (1,000 lb x 0.2 lb option)

In the box

• SL-917-30x21 drum scale
• SL-7510-C-02 indicator

Upgrades and add-ons

• Printer. Ticket and label printers for a record of every weight.
• Scoreboard. The SL-910 remote display for reading from a distance.
• Data software. Data logging software keeps weight records on your computer.
• Indicator stand. Stands in painted or stainless steel.
• Longer cable. 50 ft and 100 ft cable lengths.
• Analog output. 4-20 mA or 0-5 V to connect to your control system.
