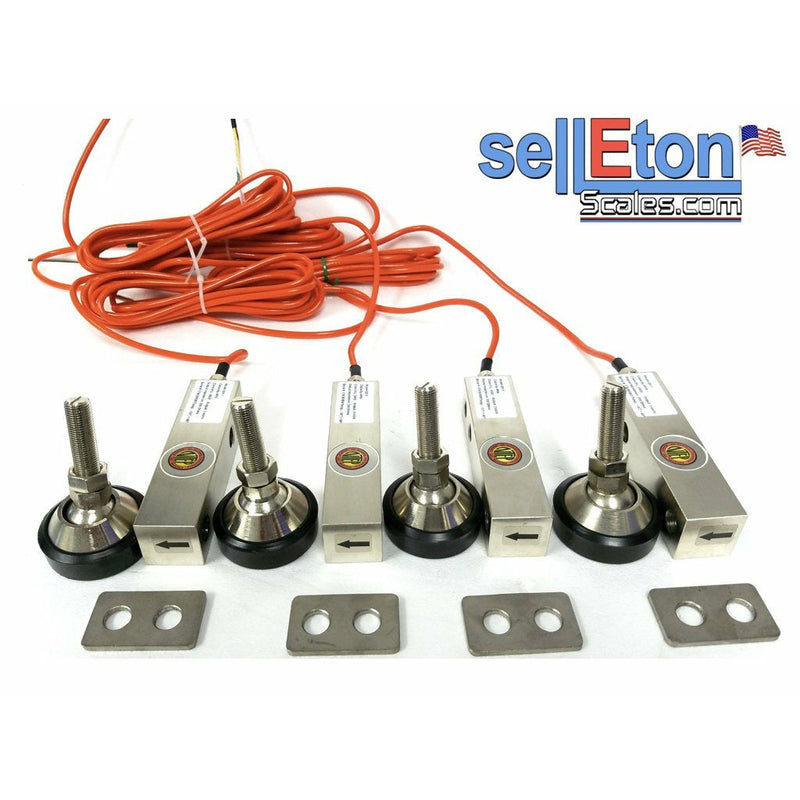

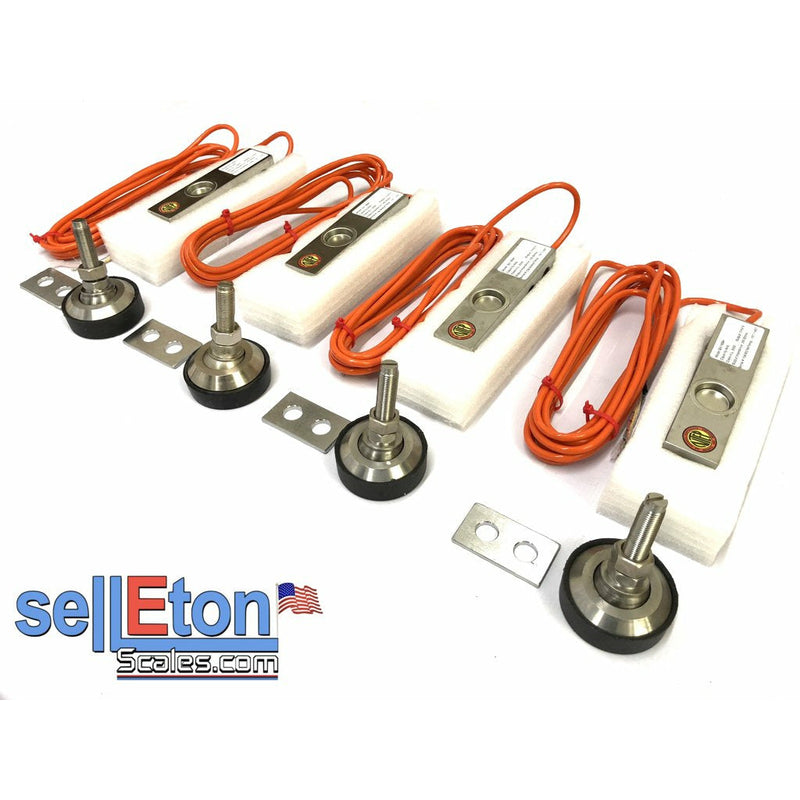

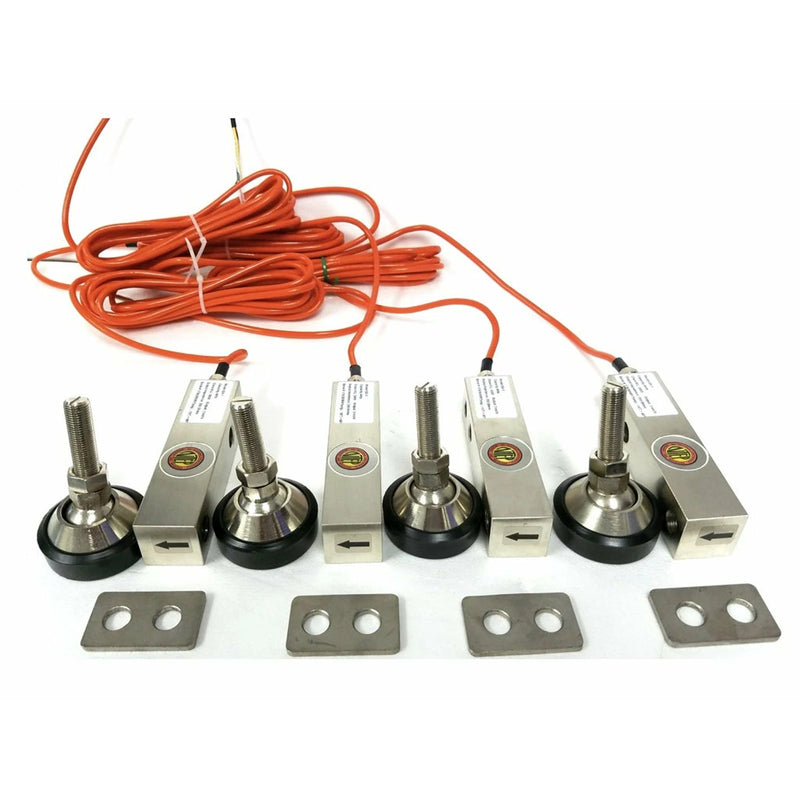

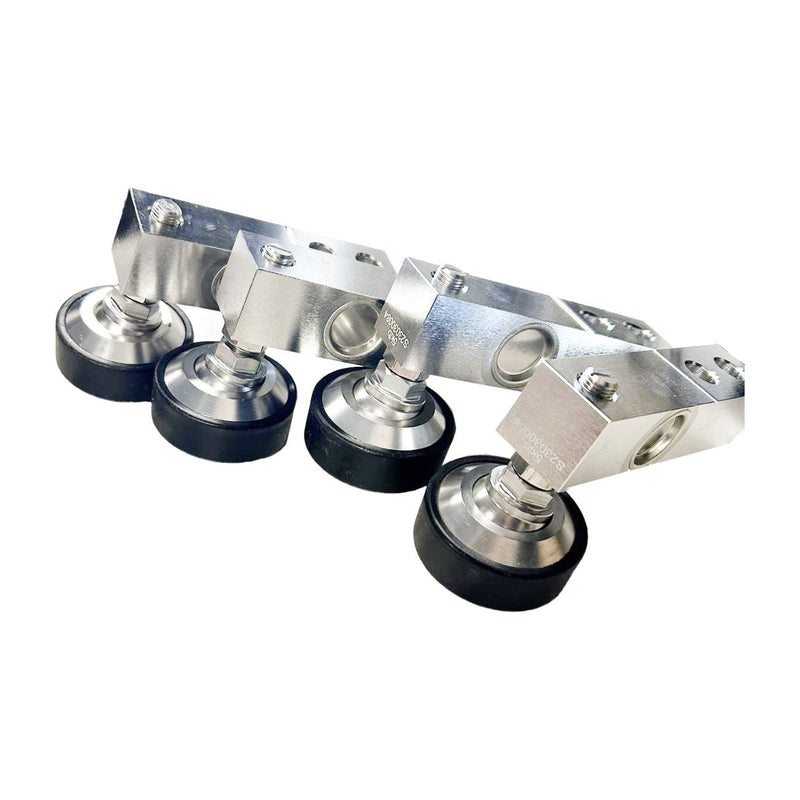

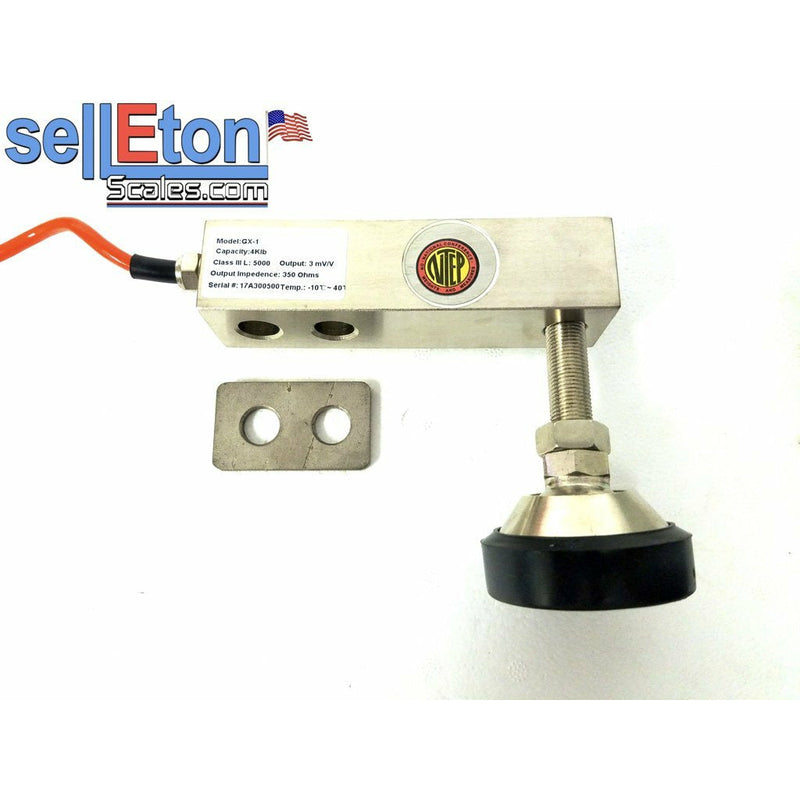

Sold as a pack of 4 load cells. One unit is four load cells with feet and spacer plates, enough for one platform floor scale. A single small envelope load cell is also offered for replacements.
Download the GX-1 Series brochure (PDF): sizes, threads, specifications and which load cell fits which SellEton scale.

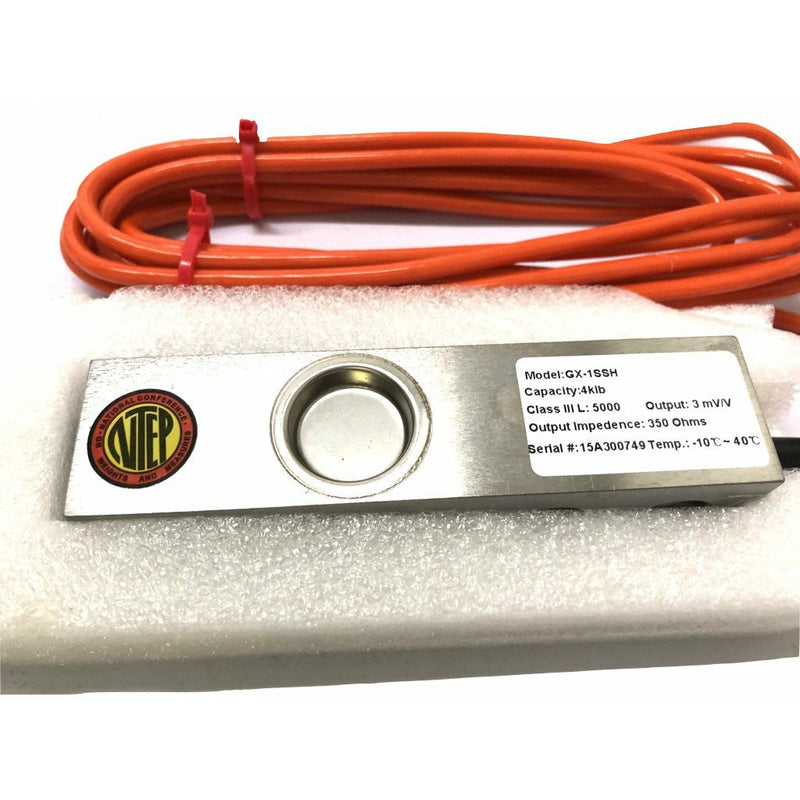

The GX-1 Series is SellEton's family of metric-thread NTEP shear beam load cells, in two body sizes. Small envelope load cells (up to 5,000 lb each, M12 thread) are the load cells on SellEton SL-700 series floor scales and most platform scales. Large envelope load cells (5,000 LE and 10,000 lb each, M20 thread) build 10,000 and 20,000 lb scales, and a large body size (20,000 lb each, M24 x 2) reaches 40,000 lb. Alloy steel or stainless steel.
Which Load Cell Fits My SellEton Scale?
-
SL-700 series floor scales: GX-1 small envelope, M12 thread, pack of 4 (this page).
-
SL-800 and SL-900 series floor scales: SL-818 series, the same load cells with 1/2"-20 UNF thread.
-
10,000 lb scales: the small envelope pack for standard platforms, or the pack of 4 x 5,000 lb large envelope load cells for heavy-duty platforms.
-
20,000 lb scales: pack of 4 x 10,000 lb large envelope load cells.
-
Up to 40,000 lb scales: pack of 4 x 20,000 lb large body load cells.
Replacing load cells on another brand of scale? Send us the model, the capacity and a photo of the old load cell and we will match the body and the thread.

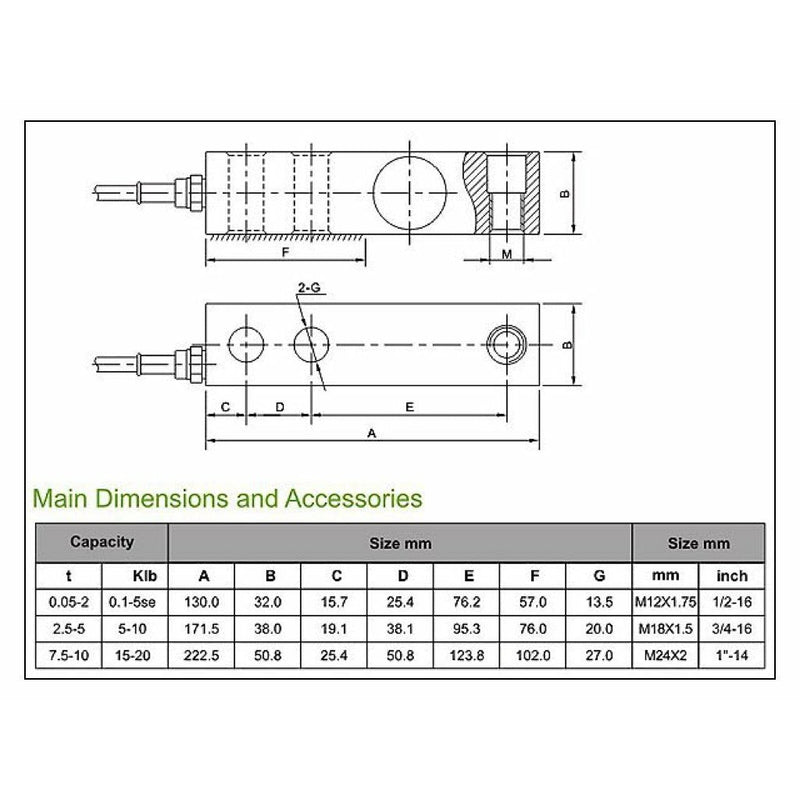

Small Envelope or Large Envelope?
| Body |
Capacity per load cell |
Length |
Height x width |
Thread |
Used for |
| Small envelope |
100 to 5,000 lb (GX-1-2T: 2,000 kg / 4,400 lb) |
5.12 in (130 mm) |
1.25 x 1.25 in |
M12 |
SL-700 and most platform scales |
| Large envelope |
5,000 LE and 10,000 lb |
6.75 in (171 mm) |
1.50 x 1.50 in |
M20 |
10,000 and 20,000 lb scales |
| Large body |
15,000 and 20,000 lb |
8.88 in (226 mm) |
2.00 x 2.00 in |
M24 x 2 |
Up to 40,000 lb scales |
How to Read the Capacity
Every pack comes with four load cells. The number in the name is the rating of one load cell. Four 5,000 lb load cells add up to 20,000 lb, but a floor scale is built to use only half of that. The other half is a 200% safety margin for shock loads, forklifts and off-center weight. So a pack of four 5,000 lb load cells makes a 10,000 lb scale.
Which pack do I need?
- Replacing the load cells on an SL-700, or a standard platform weighing up to 10,000 lb: the small envelope pack (2,000 kg / 4,400 lb load cells).
- A heavy-duty platform weighing up to 10,000 lb: the pack of 5,000 lb large envelope load cells.
- Weighing up to 20,000 lb: the pack of 10,000 lb large envelope load cells.
- Weighing up to 40,000 lb: the pack of 20,000 lb large body load cells.
Not sure? Contact us with your platform size and the heaviest load you weigh, and we will match the pack for you.
Key Benefits:
-
Legal for Trade: NTEP approval, so your scale stays compliant and delivers precise measurements every time.
-
Shear Beam Design: Each load cell features a shear beam, one-end fixed setup, making it ideal for heavy-duty applications.
-
Matched Set: Four matched load cells per pack so your scale calibrates correctly and performs consistently.
-
Material Options: Available in alloy steel and stainless steel to suit different environmental conditions and preferences.
-
Self-centering Capability: Simplifies installation and ensures reliable performance under various conditions.
-
Ease of Use: Designed for easy installation and maintenance, ensuring long-term reliability.
Optimal Indicator Calibration Settings (by scale rating):
Small envelope 2,000 kg load cells (10,000 lb scale):
- 1000 lbs x 0.2 lb
- 2500 lbs x 0.5 lb
- 5000 lbs x 1 lb
- 10,000 lbs x 2 lb
5,000 lb load cells (10,000 lb scale):
- 1000 lbs x 0.2 lb
- 2500 lbs x 0.5 lb
- 5000 lbs x 1 lb
- 10,000 lbs x 2 lb
10,000 lb load cells (20,000 lb scale):
- 2000 lbs x 0.5 lb
- 5000 lbs x 1 lb
- 10,000 lbs x 2 lb
- 20,000 lbs x 5 lb
20,000 lb load cells (40,000 lb scale):
- 4000 lbs x 1 lb
- 10,000 lbs x 2 lb
- 20,000 lbs x 5 lb
- 40,000 lbs x 10 lb
Load Cell Specifications (each load cell):
-
Rated Output: 3.00±0.015 mV/V
-
Nonlinearity: ±0.02% FS
-
Hysteresis: ±0.02% FS
-
Repeatability: ±0.01% FS
-
Creep (30 minutes): ±0.02% FS
-
Zero Balance: ±1.00% FS
-
Temperature Effect on Zero: ±0.02% FS per 10°C
-
Temperature Effect on Output: ±0.02% FS per 10°C
-
Input Resistance: 385±5Ω
-
Output Resistance: 350±3Ω
-
Insulation Resistance: ≥5000 MΩ
-
Excitation Voltage: 10V (DC/AC)
-
Compensated Temperature Range: -10°C to 50°C
-
Operating Temperature Range: -20°C to 60°C
-
Safe Overload: 120% FS
-
Cable: 5.4x6 m
-
Thread: M12 small envelope, M20 large envelope, M24 x 2 large body (metric; the SL-818 series is the UNF version)
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.
Experience the peace of mind of knowing your measurements are always accurate and compliant. With SellEton's load cell kits, your scale will perform flawlessly, and your operations will run smoother, ensuring efficient and reliable outcomes every time. Invest in SellEton's GX-1 load cells, and embrace precision in every weigh-in.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
