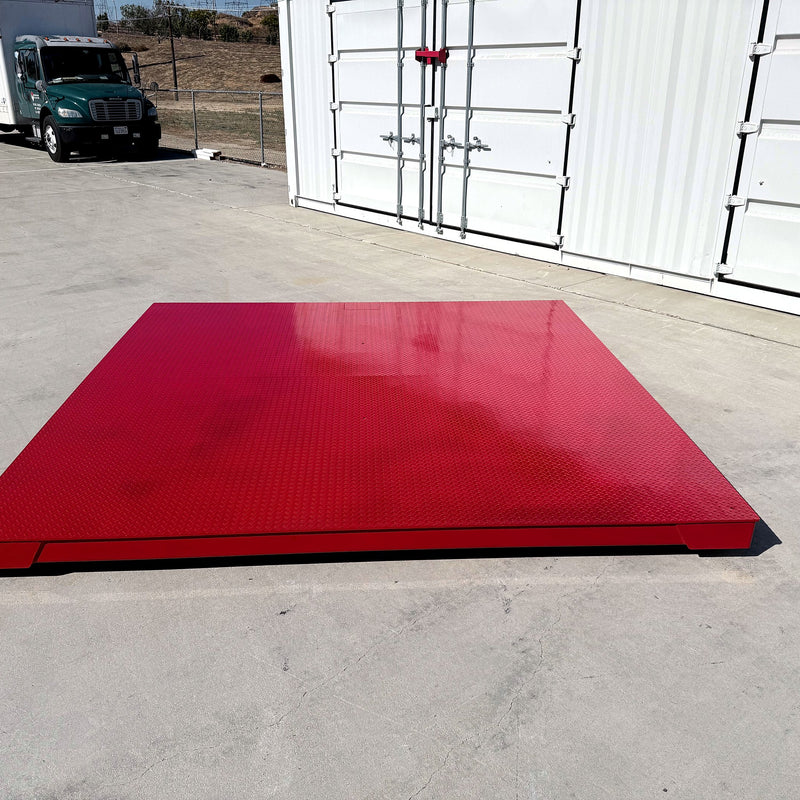

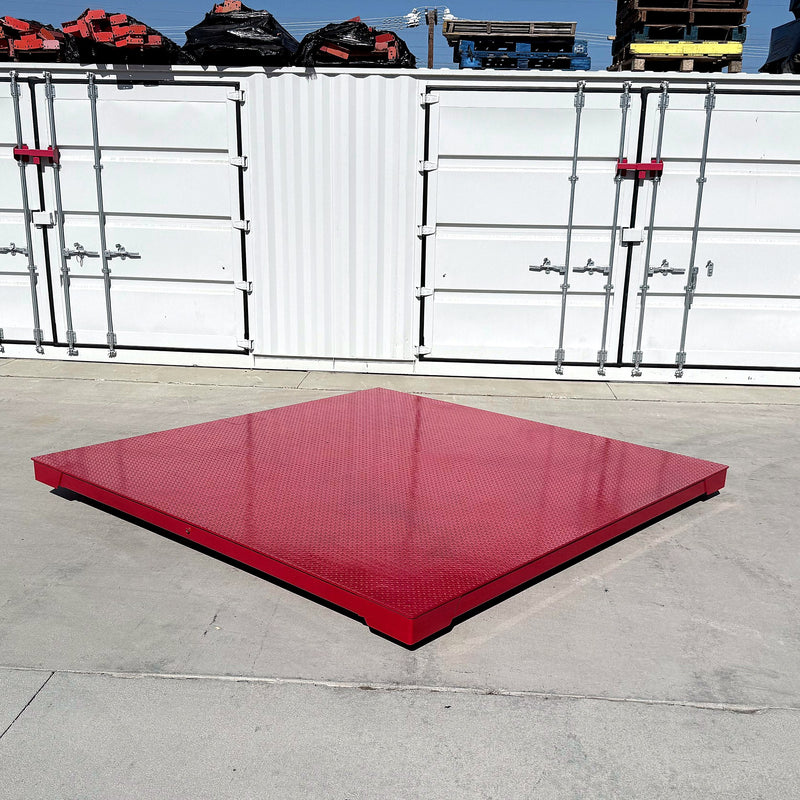

The SL-900 large deck floor scale, in 10' x 8' or 10' x 10', is a premium heavy-duty industrial floor scale designed for demanding warehouse, manufacturing, freight, recycling, and logistics applications. Built with reinforced structural support and advanced weighing electronics, this system delivers outstanding durability, overload protection, and long-term weighing accuracy.
Paired with the advanced Rice Lake 682 Synergy Plus Digital Weight Indicator, this scale package offers powerful connectivity, automation capabilities, truck weighing functionality, and industrial-grade performance for modern weighing operations.
Floor Scale Features
-
Capacity and readability: 10' x 8': 20,000 lb x 5 lb; 10' x 10': 40,000 lb x 10 lb
-
Platform Size: 10' x 8' (120" x 96") or 10' x 10' (120" x 120")
-

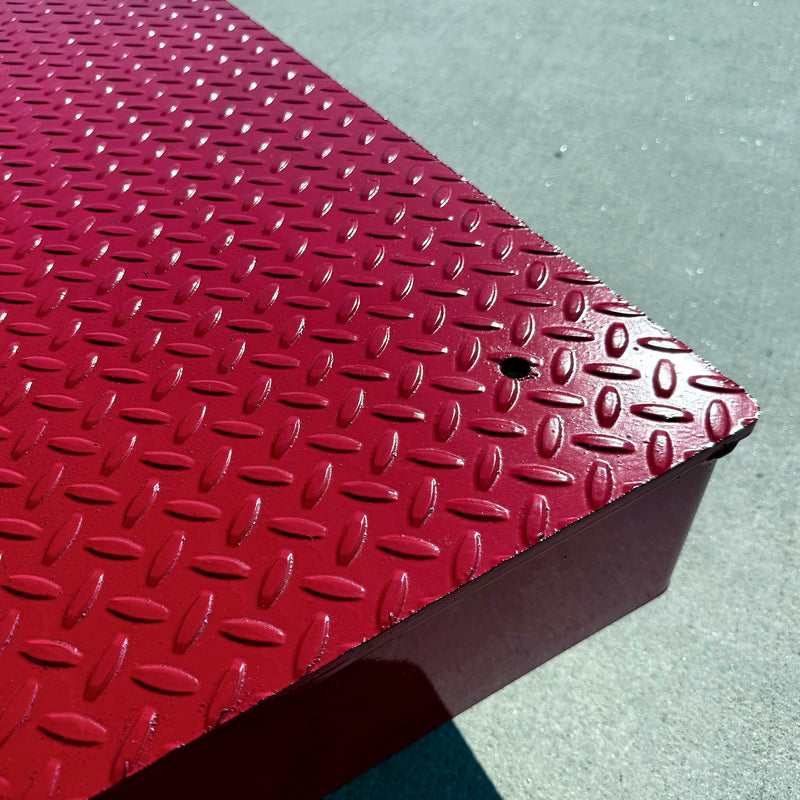

Top Deck: 0.25" diamond plated steel deck
-

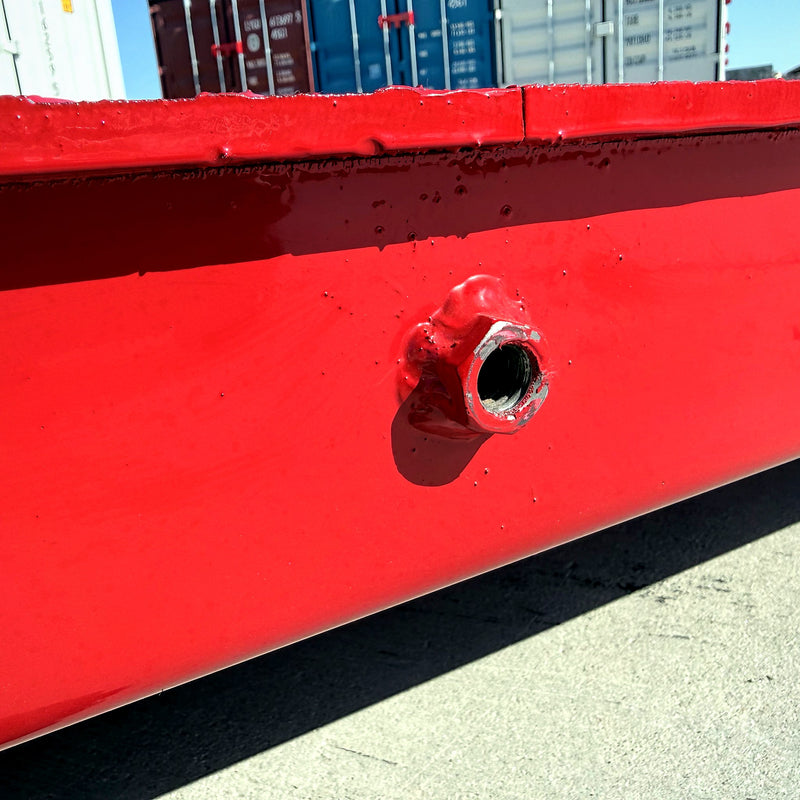

Frame Construction: Heavy-duty 10-gauge structural channels
-
Applications: Forklifts, pallet jacks, freight, carts, industrial containers, and heavy-duty warehouse use
Load Cells Matched to Each Deck
Each deck carries heavy-duty load cells sized for its platform, for strong support and stable readings across the whole deck.
-
10' x 8': six load cells, 10,000 lb each (60,000 lb combined sensor capacity)
-
10' x 10': four load cells, 20,000 lb each (80,000 lb combined sensor capacity)
- Load cells add up to at least twice the rated capacity (200% or more overload protection)
- Improved corner accuracy and load distribution
- Enhanced long-term durability in demanding industrial environments
Included Rice Lake 682 Synergy Plus Indicator
The included Rice Lake 682 Synergy Plus Digital Weight Indicator is a feature-rich industrial indicator built for advanced weighing operations, automation systems, food processing, truck weighing, and industrial data collection applications.
-
5" Full-Color LCD Display with configurable softkeys
-
304 Stainless Steel IP69K Enclosure for washdown and harsh environments
-
Built-In Web Server for remote access and monitoring
-
Truck In/Out Functionality for vehicle weighing operations
-
Multi-Language Support and numeric keypad operation
- Wi-Fi & Bluetooth® Connectivity
- Ethernet, USB, RS-232 & RS-485 Communication
-
8 Configurable Setpoints for automation and process control
-
Custom Ticket Formatting for printing and record keeping
-
4 Digital I/O Points for external device integration
Indicator Specifications
| Display |
5" LCD, 800 × 480 resolution, 500 NIT brightness |
| Resolution |
Internal: 8,000,000 counts / Display: 1,000,000 counts |
| Communication Ports |
RS-232, RS-485/422, Ethernet TCP/IP, USB, Wi-Fi, Bluetooth® |
| Power Input |
100–240 VAC, 50/60 Hz |
| Optional Power |
9–36 VDC |
| Load Cell Excitation |
10 VDC, supports 8 × 350Ω or 16 × 700Ω load cells |
| Operating Temperature |
14°F to 122°F (-10°C to 50°C) |
| Enclosure Rating |
304 Stainless Steel, IP69K Rated |
| Approvals |
NTEP, Measurement Canada, OIML, CE, UKCA, cULus |
Customization & Integration Options
SellEton Scales can customize this weighing system to fit your specific industrial application requirements.
- Data collection software
- Remote scoreboards
- Printer integration
- Wireless communication systems
- Ramp packages
- Pit-frame installation options
- Indicator stands
- Explosion-proof indicators
- 4-20mA, 0-5V, and relay outputs
- Outdoor and washdown upgrades
- Forklift bumper guards
- Custom cable lengths and automation systems
Outdoor & Washdown Recommendations
For outdoor or washdown environments, we strongly recommend:
- Stainless steel indicator
- Stainless steel load cells
- Stainless steel junction box
Standard floor scales are not waterproof as configured from the factory. Optional outdoor and water-resistant upgrade packages are available for wet, humid, and corrosive environments.
Custom Manufacturing Available
SellEton Scales manufactures custom industrial scales in carbon steel, stainless steel, galvanized steel, and aluminum. Custom sizes, capacities, software integration packages, and automation systems are available upon request.
