Ideal for cranes and lifting systems with direct tension measurement
7:1 safety factor for high-load and military-grade safety compliance
Interfaces with MSI-8004HD, TranSend, and SCT transmitters
Built from high-strength 4340 steel (or aluminum in lower capacities)
Analog output for signal processing and system integration
Mil-spec connector for robust industrial performance
Multiple shackle and hook options available (Crosby or equivalent)

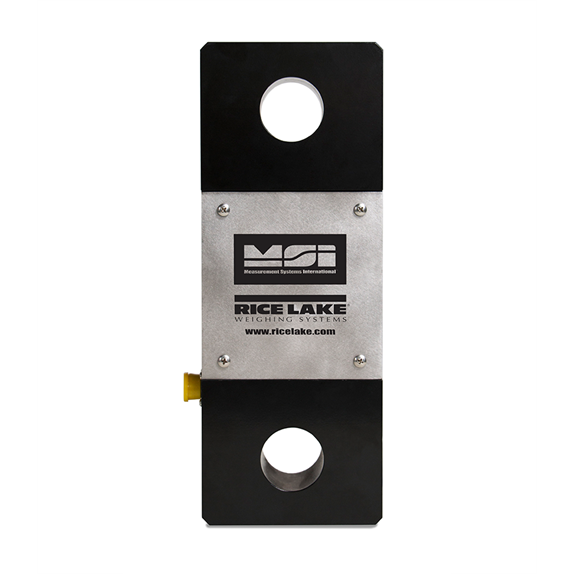

The MSI Tension Link Load Cell is engineered to deliver highly accurate force measurement in permanent lifting installations—especially in crane systems where direct tension measurement is critical. Installed between the crane block and lifting gear, this load cell enables precise load monitoring for improved safety and load control, while its robust design ensures compliance with industrial and military-grade safety standards, featuring a 7:1 safety factor.
This sensor connects easily with the MSI-8004HD weight indicator, Rice Lake SCT signal conditioning transmitters, or MSI TranSend® wireless interface. Whether your application demands analog communication or wireless transmission, the MSI Tension Link Load Cell seamlessly integrates with existing infrastructure.
Each unit features 4340 steel or aluminum construction depending on capacity and is equipped with a mil-spec connector for rugged dependability. For customized applications, MSI offers top lifting eyes or shackles with Crosby® 360° swivel hooks, giving your lift operations versatility without compromising safety.
Whether for heavy industry, construction, aerospace, or defense applications, the MSI Tension Link Load Cell ensures reliable performance under pressure.
Specifications
Specification
Value
Accuracy
0.1% sensor accuracy
Full Scale Output
0.8 mV/V
Input Resistance
1500 ohm
Output Resistance
2000 ohm
Material
4340 steel or aluminum (based on model)
Connector Pinout
A: EX+ / B: Sig+ / C: Sig− / D: EX−
Available Models and Dimensions
Capacity (lbs)
Part #
Material
Headroom Loss (A)
C-C Length (B)
Lug Thk (C)
Body Thk (D)
Body Width (E)
Body Length (F)
Lug Hole
Crosby Shackle
2,000
181907
Aluminum
13.50 in
8.00 in
0.99 in
2.13 in
4.50 in
9.75 in
0.78 in
3-1/4 T – 151357
5,000
181908
Aluminum
13.50 in
8.00 in
0.99 in
2.13 in
4.50 in
9.75 in
0.78 in
3-1/7 T – 151357
10,000
181909
Aluminum
16.13 in
8.50 in
1.35 in
2.13 in
5.37 in
10.75 in
1.05 in
6-1/2 T – 151355
25,000
178093
Steel
22.39 in
9.26 in
2.24 in
2.24 in
4.80 in
12.76 in
1.67 in
17 T – 141992
50,000
178094
Steel
25.74 in
9.76 in
2.74 in
2.81 in
5.43 in
13.76 in
2.05 in
25 T – 151356
100,000
181910
Steel
28.49 in
10.74 in
3.09 in
3.09 in
6.86 in
15.74 in
2.30 in
55 T – 146336
Looking to integrate accurate, permanent load monitoring into your crane or lifting setup? Contact our team today for expert consultation on the MSI Tension Link Load Cell and ensure safety and precision in every lift. Let us help you select the right capacity and configuration for your unique application.
