Key Highlights
-
Accurately measures boxes, tubes, polybags, flats, and irregular shapes
-
Three package options, including integration with BenchPro™ scales
-
No special handling or alignment needed for accurate results
-
Certified Legal for Trade at 0.2 in (5 mm) accuracy
-
High-resolution 1920 × 1080 color camera
-
Compatible with Rice Lake indicators and BenchPro scales
-
API, Ethernet, USB, and Wi-Fi ready for seamless system integration
-
Touchscreen operator display for real-time image and data feedback
-
Configurable scan area and automatic/manual trigger modes
-
Optional iDimension SS Software, App, and barcode scanners available

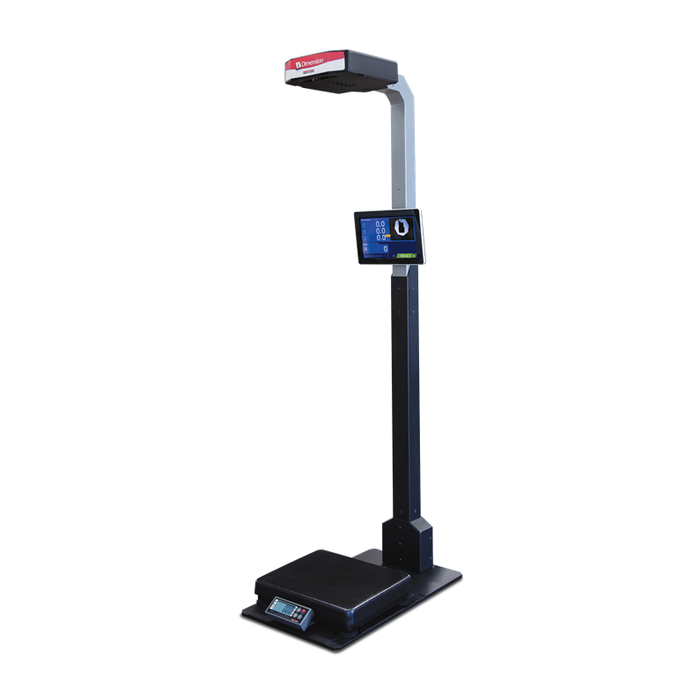

The iDimension® Plus by Rice Lake Weighing Systems is a game-changing dimensioning system designed to capture fast, accurate parcel measurements for today's high-speed shipping and logistics environments. Whether you're measuring boxes, polybags, tubes, or irregular packages, the iDimension Plus automates the process, eliminating dimensional weight corrections and surprise carrier fees.
Built with advanced technology, this system uses a high-resolution color camera and intelligent measurement algorithms to deliver Legal for Trade results with an accuracy of 0.2 inches (5 mm). The intuitive 10-inch touchscreen provides operators with immediate visual feedback—complete with dimensions, weights, and images of each parcel.

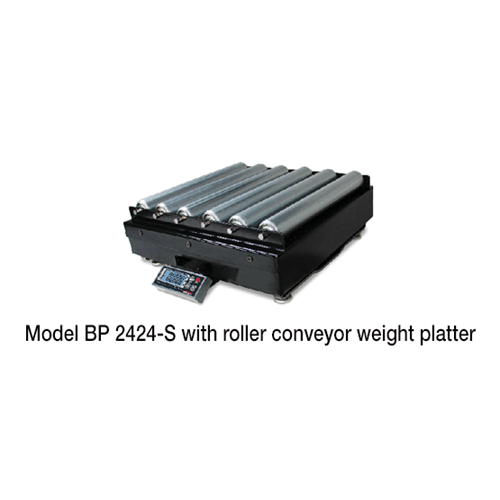

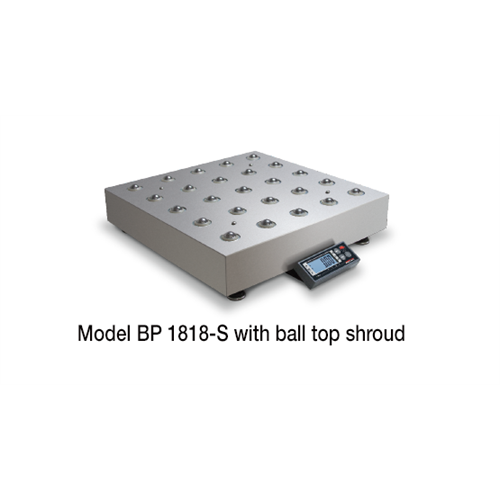

Choose from three versatile packages to suit your workflow, including an integrated 150 lb BenchPro™ scale for added functionality. The unit is equipped with Ethernet, Wi-Fi, and USB ports, allowing for easy network integration, API connectivity, and optional automation through Rice Lake's 680 or 1280 indicators.
iDimension Plus is ideal for fulfillment centers, postal counters, 3PLs, and any business looking to speed up parcel processing while improving data accuracy and efficiency.
Available Packages
| Package |
Description |
| Package 1 |
Base plate, telescoping pole assembly, 10" touchscreen, calibration object, power cord, operating manual, assembly toolkit |
| Package 2 |

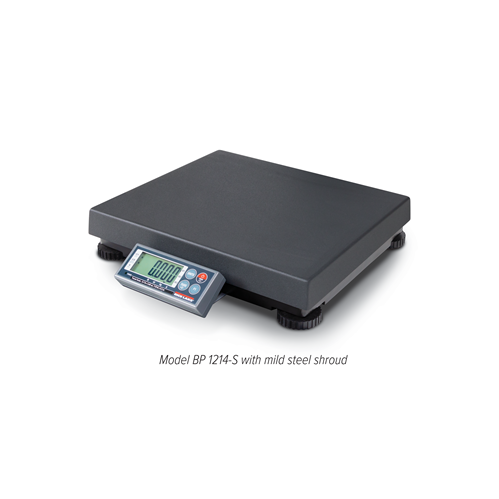

All items in Package 1 plus 150 lb BenchPro™ shipping scale |
| Package 3 |
Dimensioning head only (no pole), 10 ft Ethernet cable, USB display, calibration object, power cord, operations manual |
Platform Measurement Ranges
| Platform Distance |
Length (Min–Max) |
Width (Min–Max) |
Height (Min–Max) |
Division |
| 48 in (1.2 m) |
2.4 in – 39 in |
2.4 in – 24 in |
2.4 in – 24 in |
0.2 in |
| 60 in (1.5 m) |
2.4 in – 48 in |
2.4 in – 32 in |
2.4 in – 28 in |
0.2 in |
| 80 in (2.0 m) w/o Pole |
4 in – 48 in |
4 in – 32 in |
4 in – 32 in |
0.5 in |
With RGB Assist Mode, objects smaller than 2.4 in may also be measured.

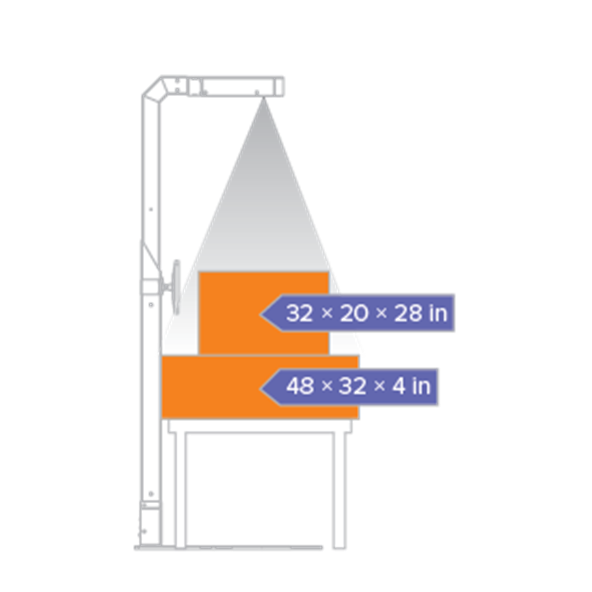

Maximum Box Dimensions Based on Pole Height
| Pole Height |
Max Box Dimensions (inches) |
Max Box Dimensions (mm) |
| 48 in |
24 × 14 × 24 |
600 × 350 × 600 |
| 60 in |
32 × 20 × 28 |
800 × 500 × 700 |
| 60 in (Flat) |
48 × 32 × 4 |
1200 × 800 × 100 |
Connectivity & Integration
-
Ports: Dual USB-A, Ethernet (10/100/1000 Base-T), Wi-Fi 802.11ac
-
Software: iDimension App, iDimension SS Software Suite
-
Integration: Simple API via HTTP/XML, REST API with OAuth 2.0 (QubeVu Server)
-
Automation Ready: Supports Rice Lake 680 and 1280 Indicators
Environmental and Electrical Specs
| Specification |
Value |
| Power |
110–240 VAC |
| Operating Temp |
32 °F to 95 °F (0 °C to 35 °C) |
| Humidity |
Non-condensing |
| Display |
10 in color touchscreen |
| Warranty |
Two-year limited |
| Approvals |
NTEP, CE, FCC |

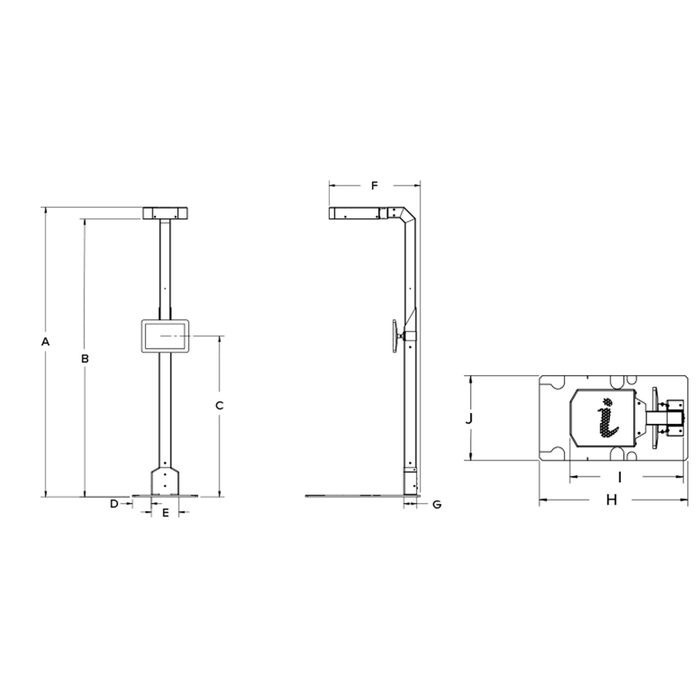

Physical Dimensions
iDimension Plus Unit
| Measurement |
Inches (mm) |
| Height |
63.10 (1603) |
| Width |
60.50 (1537) |
| Depth |
35.00 (889) |

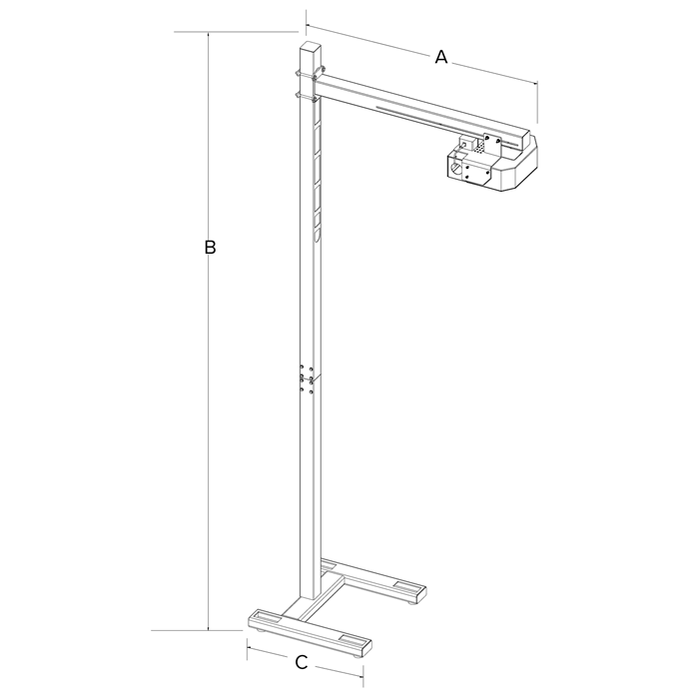

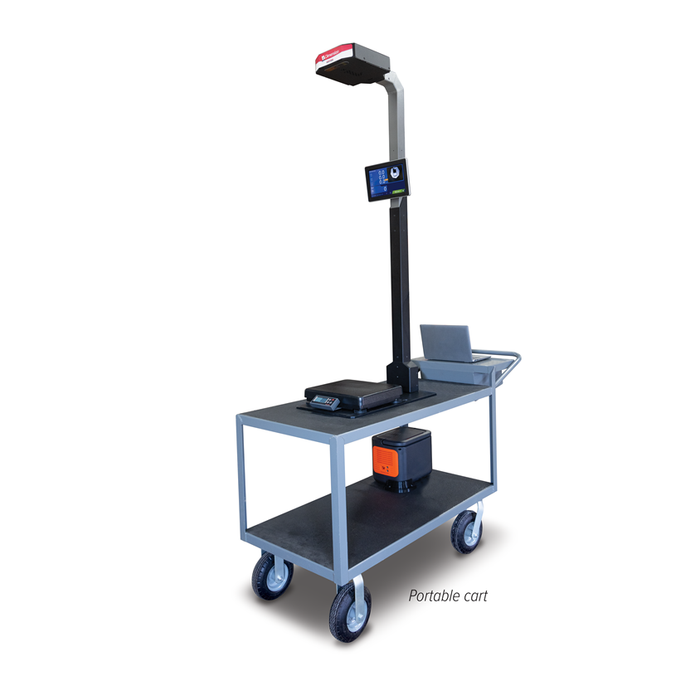

Portable Cart
| A | 24.00 in (610 mm) |
| B | 48.00 in (1219 mm) |

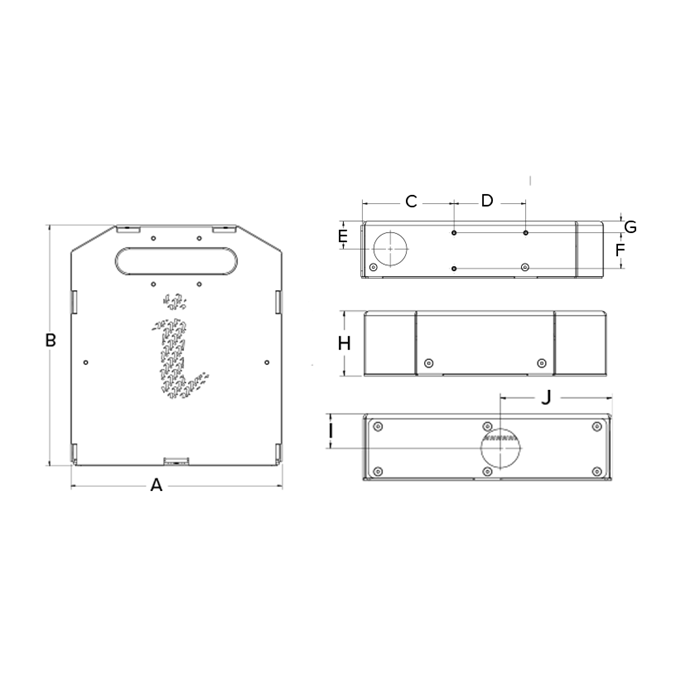

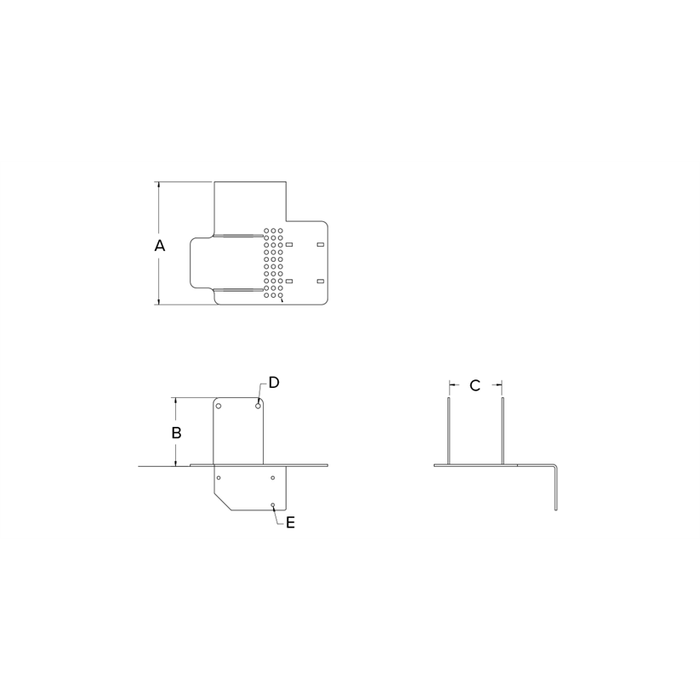

Dimensioning Head & Parts (Additional)
Speed up your fulfillment process and eliminate costly carrier chargebacks with the Rice Lake iDimension® Plus.
This dynamic dimensioning system empowers businesses to automate parcel measurement with pinpoint accuracy and high-speed processing. Whether for a growing eCommerce business or a large warehouse operation, iDimension Plus will revolutionize the way you weigh and measure packages.
Order now or contact us to customize your iDimension® Plus solution today.
