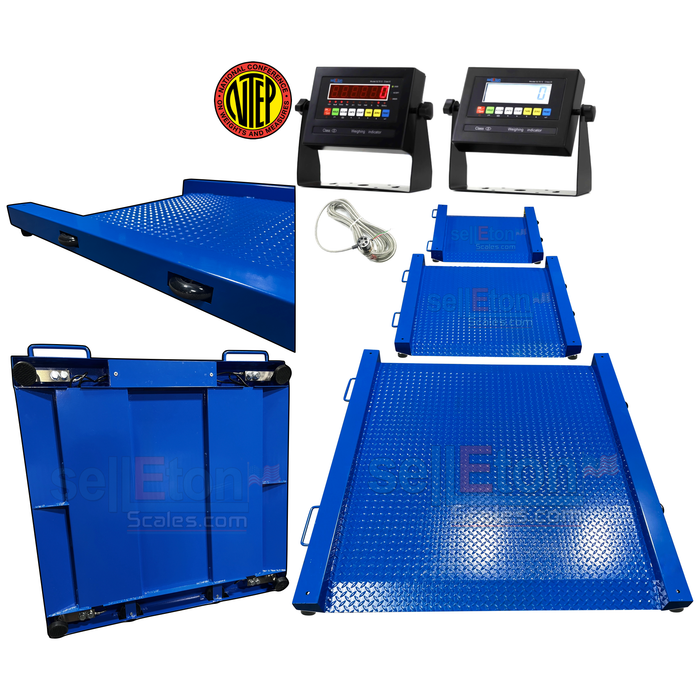

SellEton SL-917 NTEP Certified Industrial Portable Drum scales in 3 sizes

Are you tired of needing more accurate measurements for large, bulky items in your industrial settings?

Discover the Selleton SL-917 NTEP Certified Portable Drum Scales—a state-of-the-art solution designed to deliver precision and ease in managing heavy and unwieldy loads. Whether you need to weigh drums, barrels, or other industrial containers, this robust scale ensures accurate measurements every time, enhancing your operational efficiency and reducing potential errors in inventory management.

Drum Scale Sizes:

• Platform Size (27" x 27"): Overall Size (35" x 35")
• Platform Size (36" x 36"): Overall Size (44" x 44")
• Platform Size (48" x 48"): Overall Size (56" x 56")

Key Benefits:

• Enhanced Accuracy: NTEP certification guarantees reliable performance with precision in weights ranging from 1,000 to 20,000 lbs.
• Rugged Design: Constructed from welded carbon steel with a checkered safety plate for superior durability and long-lasting use in tough industrial environments.
• Easy Mobility: It has built-in carry handles and wheels for effortless transportation, making it a flexible choice for various industrial locations.
• Versatile Weighing Options: This machine features live rails and a spacious platform with two-way access ramps, allowing for direct platform weighing or across-the-rails measurements.
• Seamless Integration: Compact size fits through standard doors, making it ideal for warehouse logistics, including shipping and receiving operations.
• Reliable Power: It comes with a SellEton SL-7510 Mild Steel Indicator, selectable between lb and kg, powered by a rechargeable battery for continuous operation.
• NTEP Certified (Legal for trade): COC # 22-056

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the SL-917 Drum Scale

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.

• Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.

• Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.

• Cable Length Options: It comes with a standard 15-foot cable, but custom lengths are available in 50-foot and 100-foot lengths for extended reach and versatility.

• Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

By choosing the Selleton SL-917 Drum Scale, you're not just purchasing a scale but investing in a seamless, stress-free weighing process. Feel the confidence and peace of mind that comes from having dependable, accurate measurements that streamline your operations and improve your bottom line. Elevate your industrial scale solutions with Selleton—where precision meets portability.

Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
