Key Highlights
-
Includes: Summit 3000 4×4 ft Floor Scale, 20 ft EL147 Load Cell Cable with Quick Disconnect, and 120 Indicator
-
Factory configured and calibrated for 5,000 divisions
-
NTEP & Measurement Canada Certified
-
Heavy-duty treadplate steel deck
-
Easy-to-use 120 digital indicator with 0.8 in backlit LCD
-
Threaded eyebolt hole for center lifting
-
Polyurethane feet for grip and surface protection
-
Plug-and-play setup – ready out of the box
The Summit® 3000 Floor Scale and 120 Indicator Package is the perfect Legal for Trade weighing solution for industrial facilities, warehouses, and shipping operations. Engineered for performance and built to last, this combo delivers accuracy, durability, and simplicity in one cost-effective package.

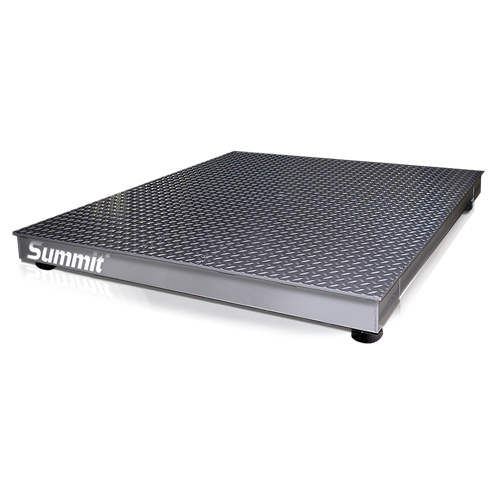

The Summit 3000 scale features a low-profile steel deck with four high-quality shear beam load cells, protected in a diamond treadplate design with polyurethane feet and a center-mounted eyebolt hole for easy positioning. The included 120 indicator offers intuitive five-button operation, a 0.8-inch backlit LCD, and full front-panel digital calibration.
This package is ideal for general material handling applications and ensures fast, reliable readings for up to 5,000 divisions. With 20 ft of load cell cable and RS-232 communication ports, it integrates smoothly into your operational workflow.
Summit 3000 Floor Scale Specifications
| Feature |
Detail |
| Load Cells |
Four NTEP Certified alloy steel shear beam |
| Deck Surface |
Rugged diamond treadplate mild steel |
| Feet |
Four rigid polyurethane rubber, 3 in (76 mm) diameter |
| Junction Box |
ABS enclosure, top-access with signal trim summing board |
| Eyebolt Hole |
Threaded (1/2–20 NF) at deck center |
| End Load Capacity |
100% at 5,000 lb, 80% at 10,000 lb |
| Load Cell Cable |
20 ft (6.1 m), EL147, with quick disconnect |
| Warranty |
2 years on weldment & load cells, 1 year on other parts |
120 Digital Indicator Specifications
| Feature |
Detail |
| Display |
0.8 in (20 mm) six-digit red LED |
| Operation |
Five-key tactile flat membrane panel |
| Power Supply |
115 or 230 VAC, 50/60 Hz |
| Communication Ports |
RS-232 (EDP & printer), 300 to 9600 bps |
| Annunciators |
Gross, net, center of zero, standstill, lb, kg, oz, g |
| Housing |
Heavy-gauge ABS enclosure |
| Calibration |
Full front-panel digital calibration |
| Warranty |
One-year limited |
Approvals
| Component |
Certification |
| Summit 3000 |
NTEP CC 92-001, Class III 5,000 d
Measurement Canada AM-5530 |
| 120 Indicator |
NTEP 03-059, Class III/IIIL 10,000 d
Measurement Canada AM-5517
EU Test Certificate TC7028 (120)
CE Marked |
Reliable. Accurate. Compliant.
This Summit 3000 + 120 Indicator combo delivers the performance you need in any industrial weighing environment. From calibration to connectivity—you're covered.
