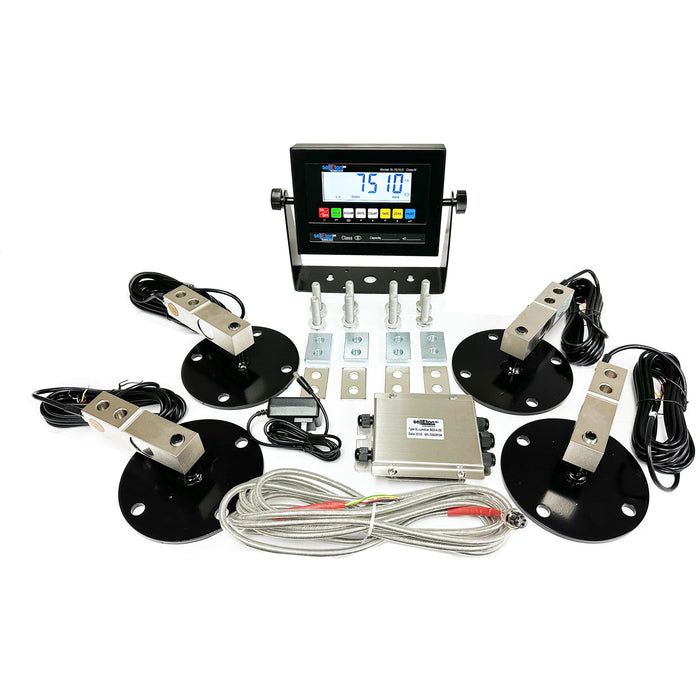

SL-720-414B Weighing Kit ( Multi-Purpose / Floor Scale ) NTEP / Legal for Trade

Do you need more accurate measurements in your industrial or commercial weighing processes?

The SL-720-414B Load Cell Kit by Selleton Scales provides a dependable solution, ensuring accurate and reliable results for all your heavy-duty weighing needs. Constructed from alloy or stainless steel, this kit is built to withstand even the most challenging environments, offering longevity and superior performance.

Key Benefits:

• Versatile and Durable: Choose alloy or stainless steel options for enhanced durability in harsh conditions.
• Wide Weight Range: Handles loads from 1,000 to 40,000 lbs, making it suitable for various applications.
• NTEP-Certified: Ensures compliance with industry standards for accuracy and legal trade requirements.
• Customizable Setup: Compatible with numerous accessories such as printers, scoreboards, software, and explosion-proof indicators.
• Stability and Safety: The package includes industrial 6" feet for secure and stable foot grounding, providing safety and confidence during use.
• Build Your Scale: This kit includes all the components (except the platform) to create a custom capacity scale.
• Protection and Connectivity: The kit features 200% overload protection and includes a bright LED display with RS-232, enhancing its safety and usability.
• Reliable Power: It comes with a SellEton SL-7510 Mild Steel Indicator, selectable between lb and kg, powered by a rechargeable battery for continuous operation.
• NTEP Certified (Legal for trade): COC # 22-056

Calibration video:

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the SL-720-414B Load Cell Kit

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.

• Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

Custom Manufacturing

If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.

When you choose the SL-720-414B Load Cell Kit, you're getting a high-quality weighing solution and securing peace of mind. Imagine the satisfaction of knowing your measurements are always precise and reliable, boosting the efficiency and accuracy of your operations. Upgrade to the SL-720-414B and experience the confidence of owning a top-tier, customizable weighing system. Elevate your weighing capabilities today and feel the difference in every task you undertake!

Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.

Attention:

If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.

Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
