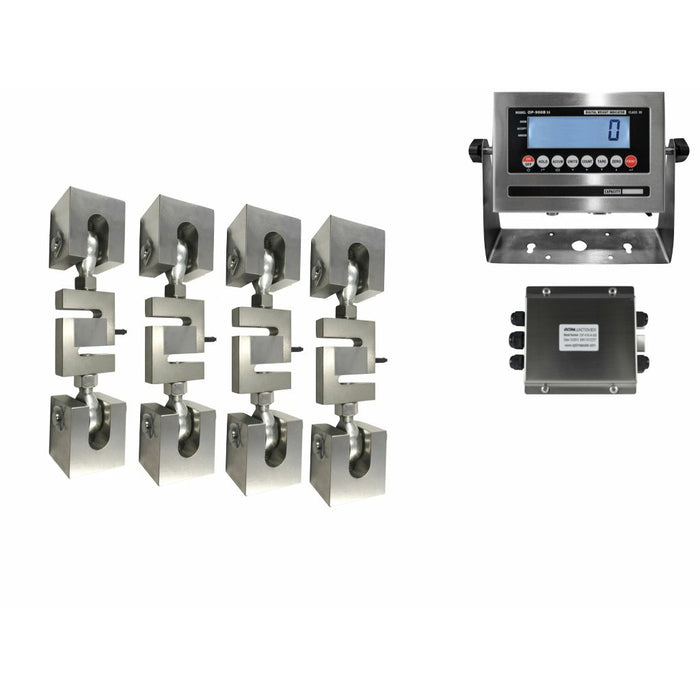

SellEton SL-312-TM S Type load cell with connection links x 4 KIT

Do you need help with accurate weighing in both vertical and horizontal setups?

 Discover the precision and flexibility of the SellEton SL-312-TM S-Type Load Cell Kit, your ultimate solution for diverse weighing requirements. Engineered for versatility, this kit not only simplifies the process of weighing horizontally or vertically but also integrates seamlessly with your existing systems, providing reliability where you need it most.

Key Benefits:

• Adaptable Configuration: Allows vertical and horizontal weighing applications similar to high-end crane scales.
• Secure Connection: Features robust connection links for safe and stable attachment, ensuring accurate readings.
• Precision Engineering: Boasts a high rate output of 3.0mV/V and a load cell resistance of 385 Ω, designed for demanding applications.
• Extended Cable Length: The system comes with varied cable lengths to accommodate different scale requirements (20 ft for up to 10k lbs and 40 ft for 15k-20k lbs).
• Durable and Reliable: Made from alloy steel with a safe overload capacity of 150% F.S. and a destructive load of 300% F.S., ensuring longevity and durability in harsh environments.
• Operational Versatility: It operates effectively within a temperature range of -4°F to 104°F and is suitable for a wide range of industrial environments.
• Reliable Power: It comes with an SL-7510-SS-C Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.
• NTEP Certified (Legal for trade): COC # 22-056

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the SL-312-TM Load Cell Kit

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.

• Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.

• Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

Custom Manufacturing

If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminum.
