Heavy-duty coil scale built to handle 40,000 to 80,000 lb loads with Legal for Trade accuracy
Half-inch thick smooth top steel deck with tight I-beam spacing for rugged strength
MVS G-force™ self-checking mounting system ensures stability and alignment
V-top cradle options available in 5 × 5 ft and 6 × 6 ft for secure coil positioning
Ships with 20 ft hostile environment load cell cable and eight concrete anchor bolts
Top-access load cell configuration for simplified maintenance
Customizable: Above ground or pit mounted, with rail, track, or cradle configurations
Approved by NTEP and Measurement Canada

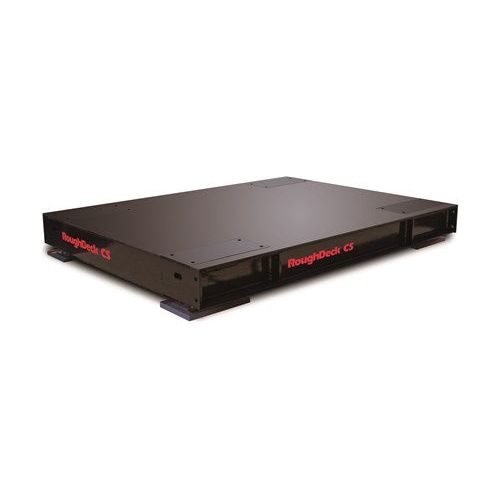

Built for the steel industry and beyond, the RoughDeck® CS Coil Floor Scale is engineered to handle the heaviest and most demanding weighing tasks. Whether you're dealing with steel coils, industrial castings, or cable spools, this scale delivers reliable, Legal for Trade weight data—day after day.
Featuring a rugged ½-inch steel deck plate and tightly spaced I-beams beneath, the CS scale is one of the most solid platforms on the market. With Rice Lake’s patented MVS self-checking mounting system, you get unmatched durability and alignment under load, while the top-access load cells simplify installation and servicing.
This coil floor scale is fully customizable for pit or above-ground installations and can be outfitted with specialty rail versions, coil cradles, or integrated track systems. Backed by a 5-year weldment warranty and built to take punishment, the RoughDeck CS is an investment in long-term weighing performance.
| Feature | Specification |
|---|---|
| Scale Capacities | 40,000 lb / 60,000 lb / 80,000 lb |
| Load Cells | 4 × 50,000 lb (for 40k and 60k) 4 × 75,000 lb (for 80k) |
| Top Plate Thickness | 0.5 in smooth steel |
| Understructure Clearance | 1.91 in minimum |
| Paint Finish | Black epoxy |
| Cable Length | 20 ft (SURVIVOR® EL147HE hostile environment) |
| Junction Box | JB4SS TuffSeal®, stainless steel, NEMA Type 4X |
| Mounting System | MVS G-force™ self-checking |
| Welding | Stitch welds |
| Warranty | Weldment: 5-year Load cells: 2-year All other components: 1-year |
| Certifications | NTEP CC 11-068, Class III, 5,000 d |
| Model | A | B | C | D | E | F | |
|---|---|---|---|---|---|---|---|
| 5 × 5 ft Cradle | 60.00 in | 60.00 in | 12.30 in | 3.64 in | 14.95 in | 25° | |
| 6 × 6 ft Cradle | 72.00 in | 72.00 in | 22.62 in | 3.99 in | 14.96 in | 24° |
Note: 1 in = 25.4 mm
Get the strength and precision your coil operations demand. Customize your RoughDeck CS Coil Floor Scale today and ensure accurate weighing for even the most challenging industrial loads. Request a quote now and build the scale that works as hard as your team.
