Key Highlights
-
Available in capacities from 1,000 to 75,000 lb per module
-
Stainless steel mounts with MLC-coated RL75016 alloy steel load cells
-
Environmentally sealed double-ended shear beam design
-
Self-checking modules – bolt directly to tank legs without load buttons
-
Includes JB4SS stainless steel junction box and 25 ft EL147HE load cell cable
-
Ideal for tank, bin, hopper and bulk material weighing
-
Designed to handle thermal expansion and contraction
-
Rugged construction for corrosive or hostile environments
-
Suitable for use in fertilizer, chemical, and food-grade applications
The RL1600 Series Stainless Steel Weigh Module is designed to deliver exceptional performance in medium- to heavy-capacity weighing applications. Built by Rice Lake Weighing Systems, this complete kit is a perfect solution for mounting on tanks, hoppers, and bins, especially in environments prone to corrosion, thermal changes, or harsh industrial conditions.
Each kit features three or four RL1600 stainless steel compression mounts, coupled with the highly reliable MLC-coated RL75016 double-ended shear beam load cells. These load cells are constructed from alloy steel and are environmentally sealed for long-term durability.
What sets the RL1600 Series apart is its self-checking design, which simplifies installation by allowing the module to be directly bolted to a tank leg—eliminating the need for additional mounting plates or load buttons. The system also comes equipped with a JB4SS NEMA Type 4X junction box, ensuring secure signal trimming and system integrity.
A 25 ft hostile environment EL147HE SURVIVOR® cable is included to handle tough installation conditions. With capacities ranging from 1,000 to 75,000 lb, this module is engineered to deliver unmatched reliability and repeatability.
Applications
-
Fertilizer mixing and weighing systems
-
Chemical processing tanks
-
Grain storage bins
-
Bulk hopper weighing
-
Medium- to heavy-capacity tank and bin installations
Complete Kit Includes
| Component |
Description |
| Compression Mounts |
3 or 4 RL1600 stainless steel mounts |
| Load Cells |
MLC-coated RL75016 double-ended shear beam (alloy steel, sealed) |
| Junction Box |
JB4SS NEMA Type 4X stainless steel, signal-trim |
| Cable |
25 ft EL147HE SURVIVOR® hostile environment load cell cable |
Specifications
| Feature |
Details |
| Module Capacity Range |
1,000 to 75,000 lb per module |
| Load Cell Type |
Double-ended shear beam, center-loaded |
| Mount Material |
Stainless steel |
| Load Cell Material |
MLC-coated alloy steel |
| Environmental Protection |
Sealed for hostile environments |
| Junction Box |
JB4SS stainless steel, signal trim |
| Cable |
25 ft, hostile environment EL147HE |
| Design Features |
Self-checking, bolt-on tank leg mount |

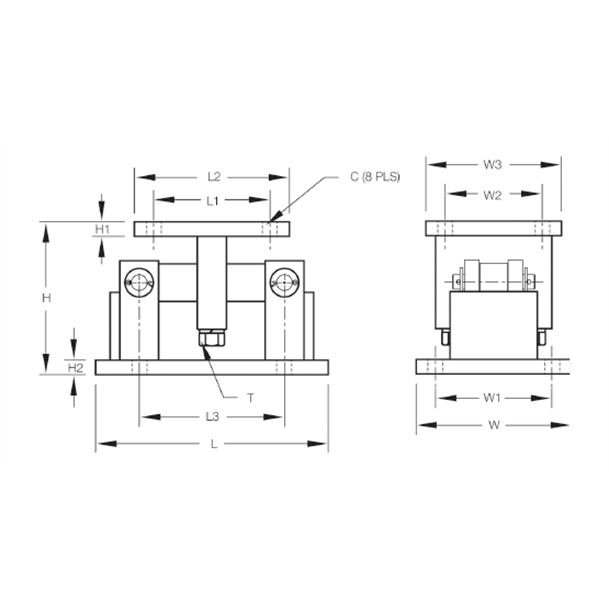

RL1600 Module Dimensions (in inches)
| Capacity (lb) |
C |
H |
H1 |
H2 |
L |
L1 |
L2 |
L3 |
T |
W |
W1 |
W2 |
W3 |
| 1,000–5,000 |
0.56 |
5.00 |
0.50 |
0.50 |
9.25 |
2.75 |
4.00 |
6.25 |
1/2-13 UNC |
5.00 |
3.75 |
2.75 |
4.00 |
| 10,000–25,000 |
0.78 |
7.87 |
0.75 |
0.75 |
12.00 |
6.00 |
8.00 |
7.50 |
3/4-10 UNC |
8.00 |
6.00 |
6.00 |
8.00 |
| 50,000–75,000 |
0.78 |
9.25 |
1.00 |
1.00 |
16.25 |
6.50 |
9.00 |
11.50 |
1 1/4-7 |
Ensure your tank or hopper weighing system is built for long-term success with the RL1600 Series Stainless Steel Weigh Module Kit. Designed to withstand harsh industrial conditions and corrosive environments, this complete weighing solution simplifies installation and ensures consistent, accurate measurements. Whether you're upgrading an existing system or building a new one, trust SellEton Scales to deliver Rice Lake’s industrial-grade performance.
Order now or contact our team to customize your weigh module setup for your exact needs.
