Key Highlights
-
Hermetically sealed IP69K-rated stainless steel construction
-
Double-ended beam design with center loading
-
High capacity range from 1,000 lb to 75,000 lb
-
3.0 mV/V full scale output for high signal resolution
-
25 ft polyurethane jacketed cable included
-
Exceptional overload and sideload tolerance
-
Precision performance with 0.03% nonlinearity
-
Wide operating temperature range: -18 °C to 65 °C
-
cFMus certified with a two-year limited warranty

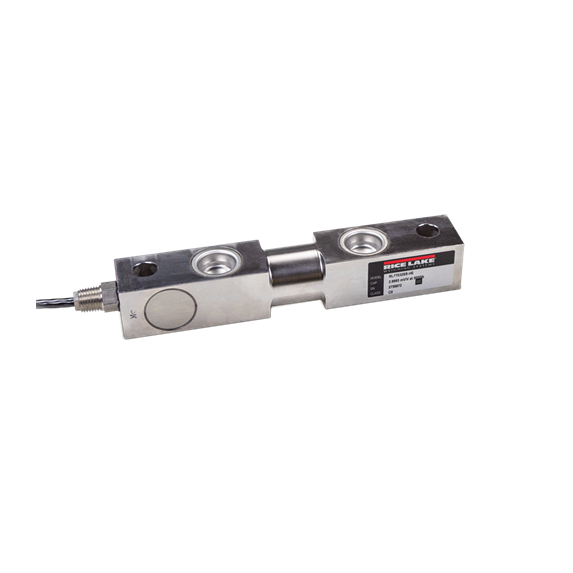

The Rice Lake RL77032SS HE is engineered for high-performance and longevity in the harshest industrial environments. Designed with hermetically sealed stainless steel construction and rated IP69K, this load cell delivers reliable performance under washdown conditions, corrosive exposure, and demanding applications.
This double-ended beam load cell features center loading and is available in capacities from 1,000 lb up to 75,000 lb, ensuring versatility for a wide range of heavy-duty weighing applications. Its 3.0 mV/V full scale output ensures sharp, responsive signal resolution even in complex systems.
Built for structural stability, it can safely handle 150% overload and 100% sideload, making it a trusted component in environments where performance and durability are paramount. The included 25-foot polyurethane cable provides secure and flexible connectivity.
Whether used in tank weighing, truck scales, hoppers, or industrial automation, the RL77032SS HE is built to maintain consistent accuracy and survive rugged conditions with ease.
Technical Specifications
| Parameter |
Value |
| Full Scale Output |
3.0 mV/V |
| Output Resistance |
700 (±5) ohm |
| Input Resistance |
770 (±10) ohm |
| Material |
Stainless Steel |
| Seal Type |
Hermetically Sealed, IP69K |
| Rated Excitation |
5 to 10 VDC |
| Safe Overload |
150% full scale |
| Safe Sideload |
100% full scale |
| Nonlinearity |
0.03% full scale |
| Hysteresis |
0.02% full scale |
| Operating Temperature |
0 °F to 150 °F (-18 °C to 65 °C) |
| Cable Length |
25 ft (Polyurethane Jacket) |
| Insulation Resistance |
5,000 Megohm |
| Warranty |
Two-year limited |
| Approvals |
cFMus |
Deflection at Capacity
| Capacity |
Deflection |
| 1,000 lb |
0.01 in |
| 5,000 lb |
0.015 in |
| 10,000–20,000 lb |
0.022 in |
| 25,000 lb |
0.036 in |
| 50,000 lb |
0.052 in |
| 75,000 lb |
0.07 in |
Cable Color Code
-
Red: +Excitation
-
Black: –Excitation
-
Green: +Signal
-
White: –Signal

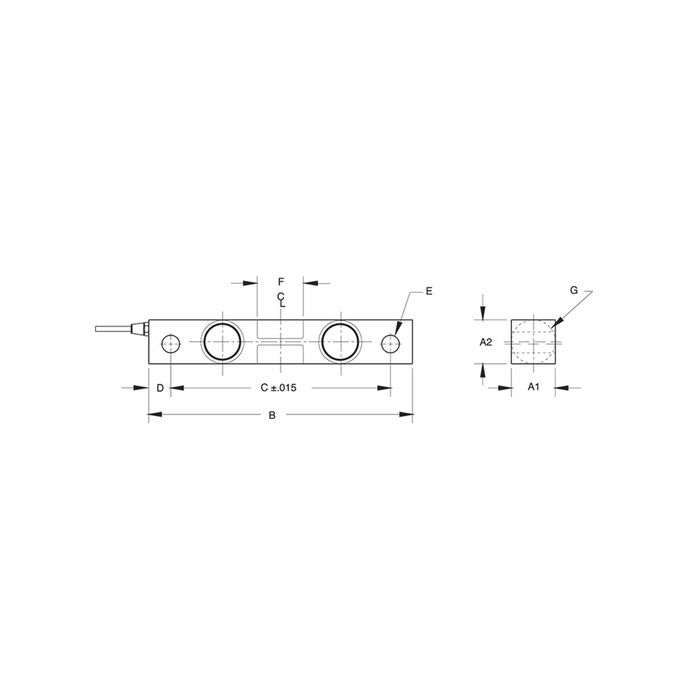

Dimensional Data
| Capacity (lb) |
A1 |
A2 |
B |
C |
D |
E |
F |
G |
Conduit Adapter |
| 1,000–5,000 |
1.22 |
1.22 |
7.50 |
6.25 |
0.62 |
0.50 |
1.12 |
1.25 |
1/4-18 NPT |
| 10,000–25,000 |
1.44 |
1.94 |
8.75 |
7.50 |
0.62 |
0.81 |
1.62 |
1.99 |
1/2-14 NPT |
