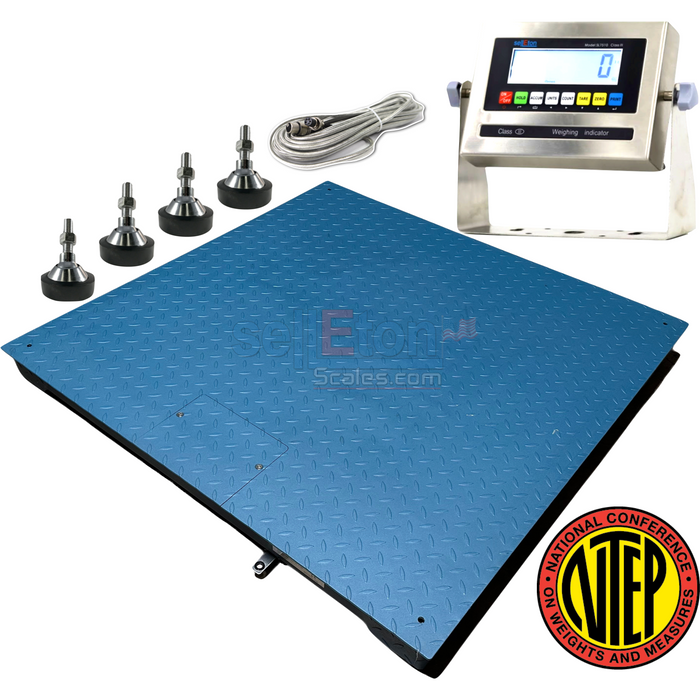

SellEton SL-800-4x4-2-SS-LCD NTEP Legal Industrial warehouse 48" x 48" 4' x 4' Floor scale 2000 x .5 lb

Are you struggling with inefficient and inaccurate weighing in your warehouse or manufacturing facility?

Solve your weighing challenges with the SellEton SL-800-4x4-2-SS-LCD Floor Scale. Designed for industrial environments, this NTEP Certified scale provides reliable, precise measurements, enhancing operational efficiency and compliance.

Key Benefits:

• Versatility in Measurement: Choose from multiple weighing units (lb/kg or g/oz/lb) for diverse application needs, all displayed on a high-resolution LCD screen.
• Advanced Functionality: This product includes features like Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count weighing, and accumulation weighing to streamline your processes.
• Durability and Reliability: Equipped with a splash-proof keyboard and display to withstand harsh industrial conditions and an overload/underload alarm to prevent weight discrepancies.
• Energy-efficient: It features a power-saving mode and operates on a standard 110V AC adapter, with an optional battery for portable use.
• Connectivity Enhanced: This product offers remote display and printer connectivity, along with a Full-Duplex RS-232 Serial Port, ensuring seamless integration into your existing systems.
• Compliance Ready: NTEP approved for 5,000 divisions, ensuring adherence to industry standards for legal trade.
• Reliable Power: It comes with an SL-7510-SS-C Stainless Steel Indicator that is selectable between lb and kg and powered by a rechargeable battery for continuous operation.

• NTEP Certified (Legal for trade): COC # 22-056

Indicator Key Features:

• Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
• Power Options: Includes an AC adapter; optional battery available.
• Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
• Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
• Alarms: Features overload/underload alarms and an automatic error warning alarm.
• Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
• Connectivity: Capable of connecting to a remote display and multiple printers.
• Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
• Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.

• Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.

Indicator Specifications:

• Display: LCD or LED, 1-inch with a 6-digit numeric readout.
• Units: lb, kg (primary), oz, g (LCD only).
• Accuracy: Class III, 5,000 e.
• Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
• Excitation Voltage: 5V DC.
• Output Current: Max 120 mA.
• Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
• Display Resolution: 30,000; ADC: 2,000,000.
• Zero Stability Error: TKspn < ± 6 ppm/K.
• Sensitivity: Internal 0.3 μV/d.
• Input Voltage: -30 to +30mV DC.
• Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
• Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
• Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
• Display Increment: Selectable 1, 2, 5, 10, 20, 50.
• Decimal Point: Selectable 0, 1, 2, 3, 4.
• Conversion Rate: 12 samples/second typical.
• Analog Signal Input Range: 1mV / V to 3mV/V.
• Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
• Measurement Rate: 0~15mV.
• Auto Zero Tracking: 0 - 5 dd increments.

Customization Options for the SL-800-Series Floor Scale

Enhance your operations with a range of add-on features designed to meet your specific needs:

• Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.

• Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.

• Pit-Frame Installation: Choose between a permanent, in-ground pit frame installation or versatile industrial portable pit frames for flexible placement.

• Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.

• Ramp Access: Implement optional ramps to facilitate simple and safe loading and unloading using carts or pallet jacks.

• Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.

• Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.

• Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.

• Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.

• Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.

Custom Manufacturing

If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminum.

Investing in the SellEton SL-800-4x4-2-SS-LCD Floor Scale means not just meeting but exceeding your industrial weighing demands. Feel confident in your ability to manage your inventory with accuracy and precision, reducing waste and increasing efficiency. Let this scale be your solution for a more productive and compliant operation. Experience the peace of mind from having a dependable tool in your industrial toolkit.

Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.

Attention:

If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.

Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
