Key Highlights
-
Remote Control via Browser: Monitor & control MSI weighing systems from smartphones, tablets, or PCs
-
Multi-Device Compatibility: Connect up to seven ScaleCore-based scales, displays, and receivers
-
Wi-Fi Router or Network Mode: Operates independently or integrates with existing networks
-
Built-in Webserver: No software required—HTML5 browser interface for easy access
-
Power Versatility: Supports PoE, AC, and DC input options
-
Tiered Login Access: Different user roles for operators and supervisors
-
Robust Build: Black powder-coated IP65 aluminum enclosure (excludes AC model)
-
Integrated Summing: View individual scale readings or total weight across multiple inputs
-
Wide Compatibility: Works with popular MSI devices like MSI-3460, 4260, 7300, 8000HD, 7000HD, and more
-
One-Year Warranty

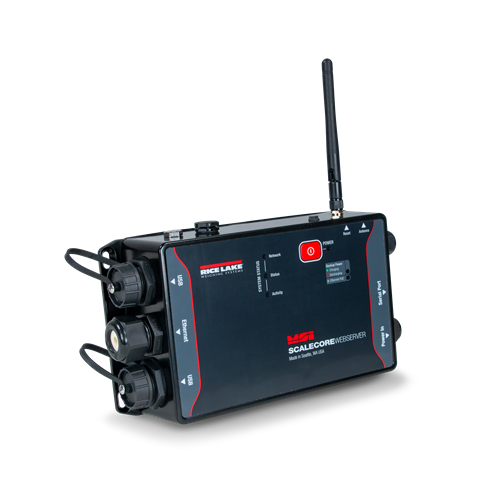

Overview: Control Your Scales from Anywhere
The MSI ScaleCore Webserver transforms how you interact with your weighing systems—enabling real-time access and control through any device with an HTML5 web browser. Whether you're working from a desktop, tablet, or smartphone, you can now view and manage weighing operations remotely over a secure Wi-Fi or Ethernet connection.
Ideal for complex weighing environments, the ScaleCore Webserver supports simultaneous communication with up to seven MSI ScaleCore-enabled devices. From crane scales to tank mounts, view live weights, sum values across devices, or control outputs—all from a single, browser-based dashboard.
For maximum flexibility, the unit can function as its own wireless router or join your facility’s existing Wi-Fi infrastructure. The system also provides tiered login access, allowing restricted user roles for operators while giving full access to supervisors and admins.
Compatible Devices
-
MSI-3460
-
MSI-4260 / 4260M
-
MSI-7300 (consult for application)
-
MSI-8000, 8000HD, 8004HD
-
MSI-7000, 7000HD, 7001, 7001HD
Technical Specifications
| Feature |
Details |
| Power Options |
5–6 VDC, 7–14 VDC, 85–265 VAC, or PoE (Power over Ethernet)
|
| Communication |
Wi-Fi 2.4 GHz IEEE 802.11g, Gigabit Ethernet, RS-232, USB 2.0 |
| Effective Range |
100–300 ft line of sight (longer ranges available on request) |
| Web Interface |
Compatible with any HTML5 browser |
| User Access Control |
Tiered login levels (operator/supervisor/admin) |
| Display Annunciators |
lb, kg, tons, net/gross, motion, zero-center |
| Enclosure |
IP65-rated, aluminum, black powder coat (excl. AC version) |
| Operating Temperature |
14 °F to 104 °F (-10 °C to 40 °C) |
| Certifications |
NTEP CC 21-098, Class III and IIIL at 10,000d |
| Warranty |
One-year limited |

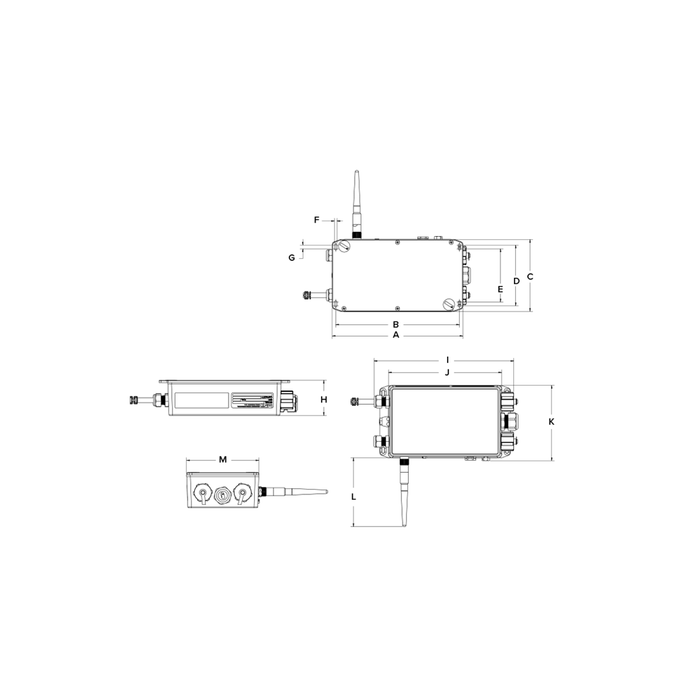

Dimensions Table
| Label |
Inches (mm) |
| A |
8.54 in (217 mm) |
| B |
8.09 in (205 mm) |
| C |
4.70 in (119 mm) |
| D |
3.97 in (101 mm) |
| E |
3.47 in (88 mm) |
| F |
0.17 in (4 mm) |
| G |
0.25 in (6 mm) |
| H |
2.23 in (57 mm) |
| I |
9.13 in (232 mm) |
| J |
7.40 in (188 mm) |
| K |
4.90 in (124 mm) |
| L |
4.50 in (114 mm) |
| M |
4.70 in (119 mm) |
Monitor smarter, weigh better.
Take full control of your weighing systems with the MSI ScaleCore Webserver—a powerful solution that brings remote accessibility, multi-device visibility, and real-time control to your fingertips.
Contact us to request a quote or learn how ScaleCore Webserver can streamline your weighing operations.
