Key Highlights
-
Hi-Torque Load Train for powered rotation applications
-
Capacities: From 10,000 to 200,000 lb
-
Accuracy: ±0.1% (up to 120,000 lb), ±0.2% (200,000 lb)
-
Multi-Color LED Display: 1.5 in (red, orange, green)
-
Up to 250 Hours Runtime with 12V rechargeable battery
-
Wireless RF Communication available (100–300 ft range)
-
IP66 Rated Marine Grade Enclosure
-
NEMA Type 4 Aluminum Construction
-
200% Safe / 500% Ultimate Overload Protection
-
Selectable Units: Pounds or Kilograms

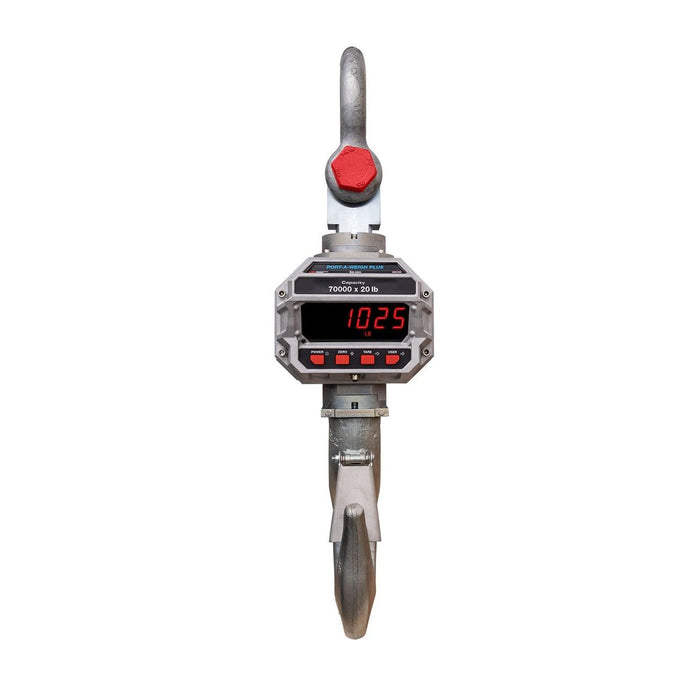

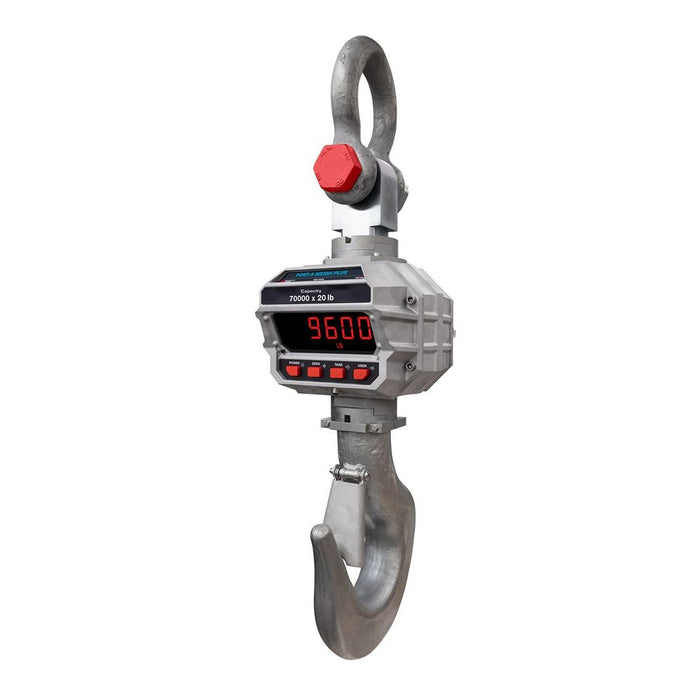

The MSI-9600HT Hi-Torque Port-A-Weigh Plus sets a new benchmark for overhead industrial weighing in powered rotation environments. Designed with a reinforced Hi-Torque load train, it ensures long-term performance and safe operation under the toughest conditions.
With capacities ranging from 10,000 to 200,000 lb, this digital crane scale is built for heavy-duty operations. The dual-accuracy configuration—±0.1% for standard and ±0.2% for ultra-heavy models—ensures that weight readings remain reliable and precise, even under extreme loads.
The bright 6-digit LED display can change color based on preset weight limits, warning operators of near-overload conditions in real time. Optional RF radio connectivity enables remote monitoring and data collection from up to 300 ft line of sight, integrating seamlessly with MSI-8000, LaserLight2, and TranSend™ systems.
With up to 250 hours of battery life, rugged IP66 anodized construction, and a wide range of customizable options, the MSI-9600HT delivers unmatched strength, safety, and versatility in industrial crane weighing.
Specifications Table
| Feature |
Details |
| Capacities Available |
10K, 30K, 70K, 100K, 120K, 200K lb |
| Accuracy |
±(0.1% +1 d) up to 120,000 lb
±(0.2% +1 d) for 200,000 lb |
| Resolution |
2,400 to 5,000 d (up to 10,000 d available) |
| Display |
6-digit, 1.5 in (38 mm) programmable LED (multi-color: red, orange, green) |
| Display Units |
Pounds or kilograms selectable |
| Power Supply |
12 V rechargeable battery + 115/230 VAC charger |
| Operating Time |
Up to 250 hours (no radio), 75 hours (with radio) |
| Radio Frequency |
802.15.4 at 2.4 GHz (typical range 100–300 ft line of sight) |
| Auto-Off Mode |
15, 30, 45, 60 min or OFF |
| Auto-Sleep Mode |
5, 15, 30 min or OFF |
| Enclosure Material |
NEMA Type 4, IP66 marine grade 356 alloy anodized cast aluminum |
| Operating Temperature |
14 °F to 131 °F (-10 °C to 55 °C) |
| Design Overload |
200% Safe / 500% Ultimate |
| Service Counters |
Tracks over-capacity and high-load lifts |
| Filtering Options |
OFF, LO, HI-1, HI-2 |
| Warranty |
One-year limited |
| Approvals |
NOM |

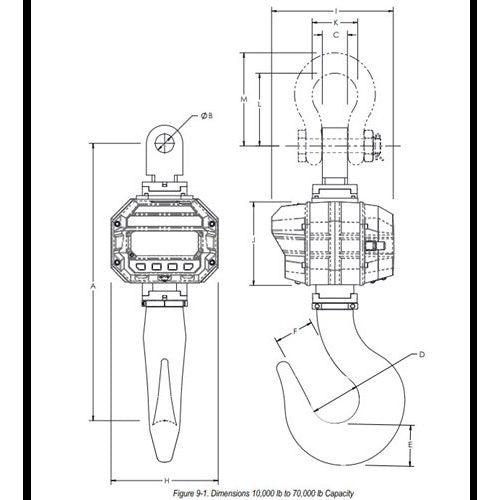

Dimensional Specifications
10K–70K Models
| Part Number |
Capacity |
A |
B |
C |
D |
E |
F |
H |
I |
J |
| 214371 |
10K lb |
19.6 in |
Ø1.28 in |
1.75 in |
2.50 in |
1.82 in |
1.78 in |
11.80 in |
13.40 in |
9.20 in |
| 214370 |
30K lb |
23.4 in |
Ø1.66 in |
2.15 in |
4.25 in |
3.01 in |
3.41 in |
11.80 in |
13.40 in |
9.20 in |
| 214369 |
70K lb |
30.5 in |
Ø2.06 in |
2.75 in |
5.38 in |
4.56 in |
4.25 in |
11.80 in |
13.40 in |
9.20 in |

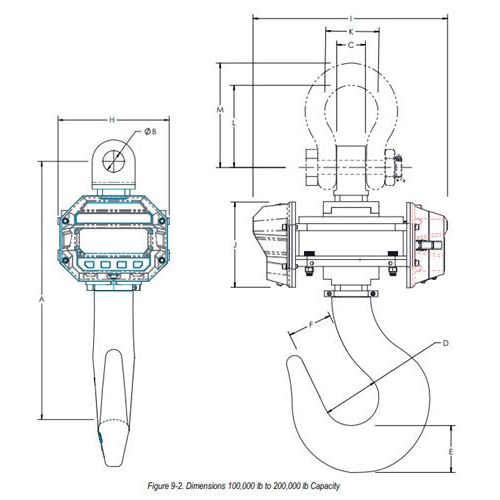

100K–200K Models
| Part Number |
Capacity |
A |
B |
C |
D |
E |
F |
H |
I |
J |
| 214477 |
100K lb |
27.9 in |
Ø2.32 in |
3.10 in |
3.00 in |
5.06 in |
4.75 in |
12.00 in |
20.90 in |
9.20 in |
| 214474 |
120K lb |
29.5 in |
Ø2.32 in |
3.10 in |
7.00 in |
6.00 in |
5.75 in |
12.00 in |
20.90 in |
9.20 in |
| 214479 |
200K lb |
35.4 in |
Ø2.81 in |
3.75 in |
6.81 in |
8.59 in |
5.88 in |
Experience maximum safety and durability in overhead weighing with the
MSI-9600HT Hi-Torque Crane Scale.
Order now or
contact us to customize your scale for high-capacity, powered-rotation applications.
