Multicolor 1.5" LED Display: Red/green/orange with setpoint-based color changes
Heavy-Duty IP66 Design: Milled anodized aluminum for indoor/outdoor durability
RF Wireless & Ethernet Options: Supports Serial RF, Wi-Fi, and dual-channel links
Crane & Overhead Applications: Designed for optimal cab and floor visibility
Flexible Input Power: Supports AC and wide DC voltage ranges
User-Defined Functionality: Two programmable function keys for workflow control
Compatible With ScaleCore™ Systems: Works with all MSI crane scales and TranSend™
Multiple Input Channels: Up to 4 load cell inputs or RF remote sensors
Panel Mount or Tilt Bracket: Mounting versatility included

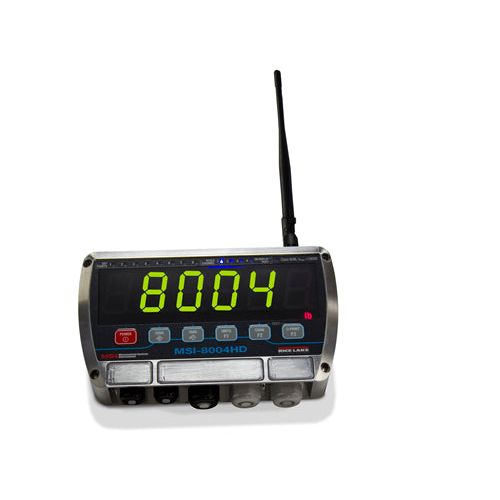

The MSI-8004HD Indicator/RF LED Remote Display is a rugged, high-visibility overhead weighing controller engineered for industrial environments requiring real-time feedback, safety alerts, and wireless connectivity.
With 1.5-inch multicolor LED characters, the MSI-8004HD provides unparalleled visibility in both indoor and outdoor crane operations. It can change color based on weight thresholds or setpoints, helping operators make quick decisions during lifting, loading, or batching tasks.
Its IP66/NEMA 4-rated aluminum enclosure is resistant to dust, water, and environmental stress. Whether mounted on a panel or with the included tilt stand, it integrates seamlessly into overhead weighing systems, delivering critical data to crane cabs and ground operators.
The MSI-8004HD offers up to four independent load cell input channels or can be used as a remote display for RF-enabled systems like MSI TranSend™ or MSI-ScaleCore™ crane scales. It features two RS-232 ports, optional Ethernet/Wi-Fi/Bluetooth, expandable relay outputs, and analog signal output kits.
When used as a weighing controller, the MSI-8004HD supports advanced weighing functions including peak hold, high resolution, totalization, and unit switching. It is also NTEP-certified and Measurement Canada approved, making it a reliable choice for commercial trade environments.
Specifications Table
Feature
Details
Power Input
90 to 267 VAC, 9 to 36 VDC, 18 to 72 VDC, 120 to 300 VDC
Excitation Voltage
4.8 V (current-limited & over-voltage protected)
Display
Six-digit, 1.5 in (38 mm) multicolor LED (red/green/orange)
Display Functions
On/Off, Zero, Tare, Print, two user-defined keys
Display Modes
Net/Gross, High Resolution, Peak Hold, Total, Units Switching
Supported Units
Pounds (lb), Kilograms (kg)
Load Cell Channels
1, 2, 3, 4 channel TTL or A/D
RF Remote Channels
Up to 4 sensors via TranSend™ (non-A/D version only)
Relays
Two 5V coil, 250 VAC, 5A
A/D Inputs
Dual independent or summing
Filtering Options
Off, Low, Hi-1, Hi-2
Connectivity
RS-232 x 2, RF 2.4 GHz, Ethernet, Wi-Fi, Bluetooth®
Operating Temp.
-40 °F to 140 °F (-40 °C to 60 °C)
Certified Temp.
23 °F to 104 °F (-5 °C to 40 °C)
Material & Rating
Milled anodized aluminum, NEMA Type 4/IP66
Service Counters
Available on A/D version only
Annunciators
Stable, Center of Zero, Bluetooth, RF, TTL, NET, kg, lb
Warranty
One-year limited
Approvals
NTEP CC 17-036, Measurement Canada AM-6068
Dimensions (With Tilt Stand)
Dimension
Inches
Millimeters
A
11.10 in
282 mm
B
8.76 in
223 mm
C
8.02 in
204 mm
D
5.09 in
129 mm
E
9.13 in
232 mm
F
6.16 in
156 mm
G
3.25 in
83 mm
H
1.66 in
42 mm
Upgrade your crane or overhead weighing system with the MSI-8004HD RF Remote Display. Its superior visibility, rugged build, and wireless capabilities make it the ideal industrial display solution for safety-focused operations. Request a quote today or contact us our experts for a custom configuration that fits your workflow.
