Designed to meet the rigors of general-purpose forklift scale applications in warehouses and distribution centers
Supplied as a single unit featuring a machined aluminum anodized enclosure with rounded corners for enhanced durability
Includes a full numeric keypad with tactile membrane buttons for fast, accurate numeric tare entry
Provides standard Wi-Fi 802.11 b/g/n and an embedded antenna for wireless data transmission
Supports RAM® style mounting for flexible positioning and minimal operator obstruction

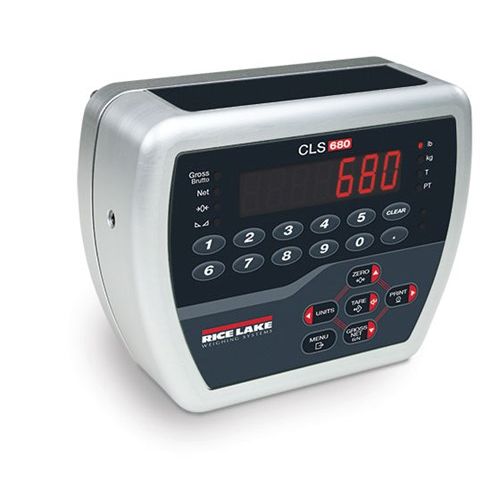

The CLS-680 forklift scale display is engineered to transform a standard lift truck into a mobile weighing station. Its compact form factor, measuring just 6.5 by 5.2 by 3.3 inches, attaches securely via RAM® style mounts, allowing operators to position the display for optimal visibility without sacrificing cab space. The machined aluminum enclosure features an anodized finish and rounded corners, providing excellent resistance to impacts, vibration, and environmental exposure. A PreVent™ breather vent equalizes internal pressure while blocking contaminants, and the illuminated power switch offers clear status indication even in low-light conditions.
This indicator supports multiple user modes and configurable print formats, making it adaptable to various workflow requirements. Battery-backed time and date ensures data integrity during power interruptions. For connectivity, the CLS-680 includes an M16 socket for CLS scale connection, an M12 socket for RS-232 communication, and a dedicated power cable socket. Wireless options include standard Wi-Fi, Bluetooth® SSP, and an optional cableless interface to CLS using a Zigbee module. With NTEP approval for Class III/IIIL up to 5,000 divisions and a two-year limited warranty, the CLS-680 delivers reliable performance for legal-for-trade applications.
| Specification | Details |
|---|---|
| Power | 9 to 36 VDC or 18 to 72 VDC |
| Communication Ports | Two RS-232 full duplex, Bluetooth SSP, Wi-Fi 802.11 b/g/n 2.5 GHz, Zigbee (cableless option) |
| Display | Six-digit, 0.5 in tall, seven-segment LED |
| Keys | 18-button flat membrane panel, tactile feel |
| Temperature (Certified) | 14 °F to 104 °F (-10 °C to 40 °C) |
| Temperature (Industrial) | 14 °F to 122 °F (-10 °C to 50 °C) |

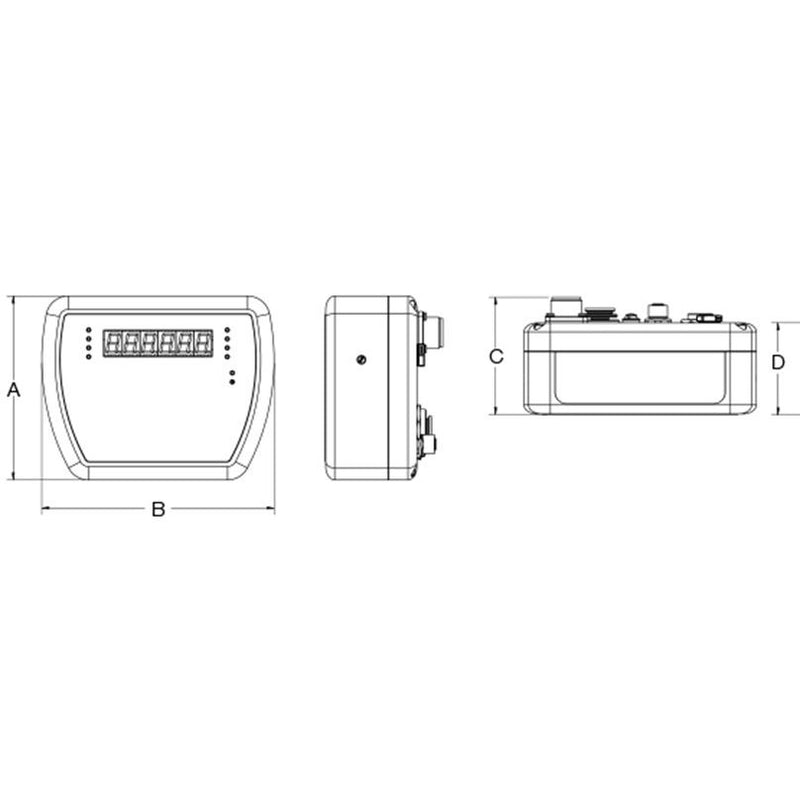

| Dimensions (L × W × H) | 6.5 × 5.2 × 3.3 in (165 × 132 × 84 mm) |
| Estimated Weight | 3.7 lb (1.7 kg) |
| Material | Machined aluminum enclosure, anodized finish |
| EMC Immunity | EN 50082 Part 2 IEC 61000-4-2,3,4,5,6,8 and 11 |
| Warranty | Two-year limited |
| Approvals | NTEP 21-092, Class III/IIIL, 5,000d |
Optimize your material handling operations with the Rice Lake CLS-680. Contact our team today to request pricing, confirm availability, or speak with a calibration specialist for your laboratory or metrology requirements.
