Key Highlights
-
Solid stainless steel base plate construction eliminates crevices for microbial growth
-

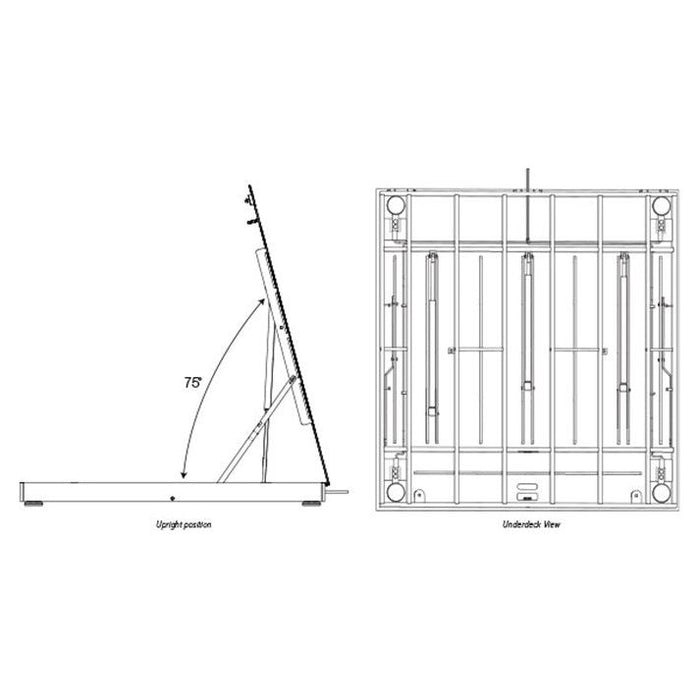

Top plate opens 75° for full underdeck access and sanitation
-
1/4 in thick stainless steel deck — smooth or diamond treadplate
-
Manual drop-in-place safety bars included
-
Tool-less top plate lock downs streamline maintenance
-
Four hermetically sealed stainless steel IP69K load cells with 30 ft PTFE cables
-
Remote-mount TuffSeal® stainless steel junction box (up to 15 ft)
-
304 stainless steel frame with continuous welds
-
Meets HACCP and NSF sanitary design standards
-
Two 1/2-20 NF threaded eyebolt holes for lifting into pit frame

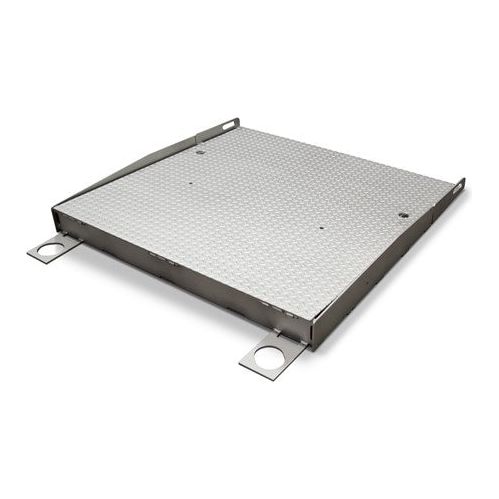

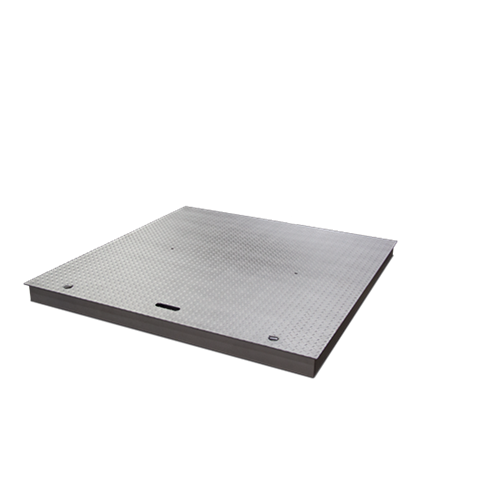

The RoughDeck® QC-X is Rice Lake’s most extreme sanitary floor scale, purpose-built for high-risk washdown applications in food, chemical, and pharmaceutical industries. Constructed with solid 304 stainless steel base plates, this scale eliminates hollow channels, leaving no room for bacteria, mold, or cross-contamination.

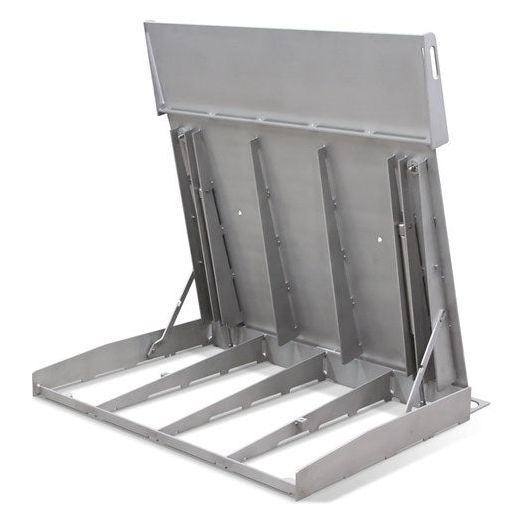

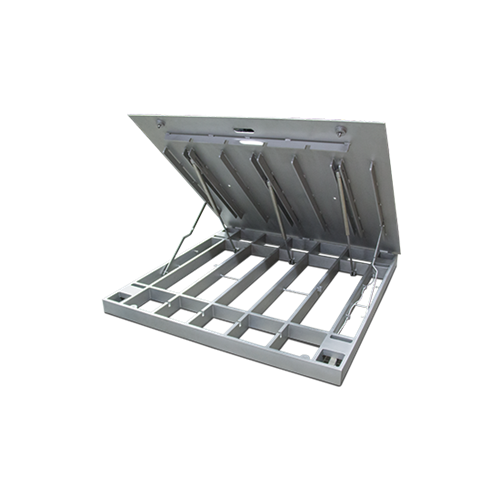

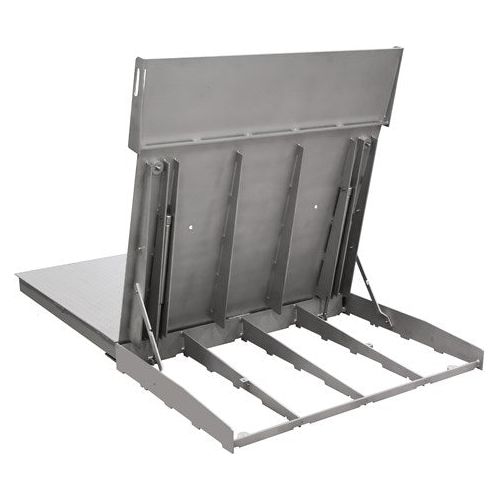

The top plate lifts 75°, allowing complete visibility and access beneath the deck. With IP69K-rated load cells, an internally mounted junction box, and continuous welds, this floor scale sets the standard for sanitary performance and long-term durability.
Choose from a smooth or treadplate surface and combine with NSF-certified access ramps for complete hygienic floor weighing operations.
RoughDeck QC-X Floor Scale Specifications
| Feature |
Specification |
| End Load Capacity |
100% full scale at 5,000 lb
80% full scale at 10,000 lb |
| Cable Length |
20 ft (6.1 m) for indicator connection
Load cells with 30 ft cables |
| Construction |
304 stainless steel with solid base plates and 1/4 in top deck |
| Junction Box |
Remote-mounted TuffSeal® JB4SS (up to 15 ft), NEMA Type 4X |
| Load Cells |
Four stainless steel IP69K shear beam (hermetically sealed) |
| Deck Access |
Top plate opens 75° for full clean-out access |
| Support Feet |
Four adjustable stainless steel SUREFOOT™ feet |
| Welding |
Continuous |
| Lifting Holes |
Two 1/2-20 NF threaded eyebolt holes |
| Warranty (Limited) |
Weldment: Five-year
Load cells: Two-year
All other: One-year |
| Approvals |
NSF Certified
cFMus Listed |

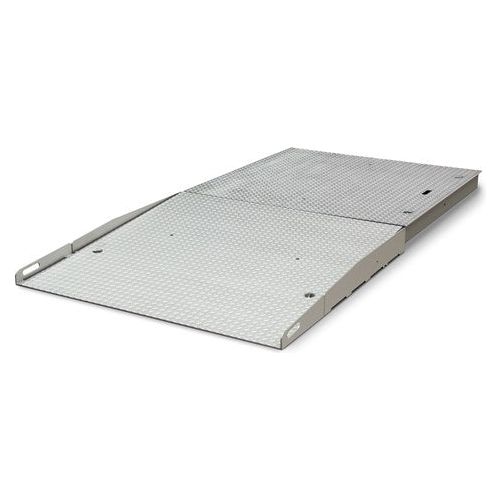

Ramp Options and Angles (Diamond Treadplate)
| Part # |
Ramp Size (W x L x H) |
Ramp Angle of Incline |
Ramp Position |
| 175692 |
4 ft x 3 ft x 4.625 in |
7.0° |
Hinge/Handhole Side |
| 175693 |
4 ft x 4 ft x 4.625 in |
5.2° |
Hinge/Handhole Side |
| 175699 |
5 ft x 3 ft x 4.625 in |
7.0° |
Hinge/Handhole Side |
| 175700 |
5 ft x 4 ft x 4.625 in |
5.2° |
Hinge/Handhole Side |
| 178840 |
4 ft x 3 ft x 4.625 in |
7.0° |
Side of Scale |
| 178849 |
4 ft x 4 ft x 4.625 in |
5.2° |
Side of Scale |
| 178850 |
5 ft x 3 ft x 4.625 in |
7.0° |
Side of Scale |
| 178851 |
5 ft x 4 ft x 4.625 in |
5.2° |
Side of Scale |
Note: 1 inch = 25.4 mm
Ideal for strict washdown zones—QC-X ensures safety, compliance, and cleanliness you can count on.
Order now or contact us to customize your QC-X configuration for your facility's hygienic standards.
