RoughDeck® HP Caster SENDit Portability Frames, NTEP

Name: RoughDeck® HP Caster SENDit Portability Frames, NTEP
Brand: Rice Lake Weighing Systems
Price: 3105.0 USD
Availability: InStock

$3,105.00 - $4,847.25

$3,105.00

$3,105.00 - $4,847.25

$3,105.00

Quantity

Description

Key Highlights

Wireless communication between floor scale and operator display
NTEP Certified for Legal-for-Trade applications
Transmitter powers load cells directly (+4.8 VDC excitation)
Supports 16 × 350Ω or 32 × 700Ω load cells
Individually paired transmitter/receiver sets to prevent interference
Battery life up to 100 hours on a single charge
Two programmable setpoints with red/green LED for quick visual verification
Optional audible alarm for enhanced operator feedback

Product Description

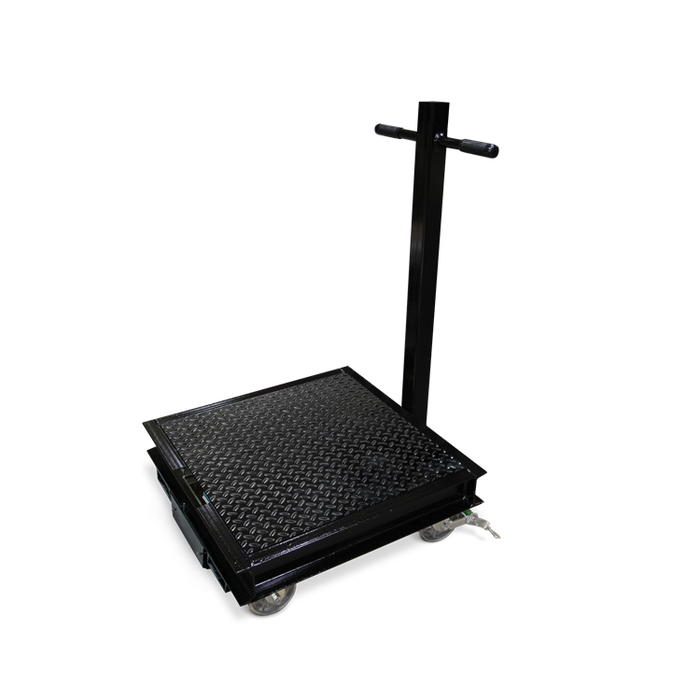

The RoughDeck HP Caster SENDit Portability Frame offers the perfect combination of mobility and wireless precision in a Legal-for-Trade (NTEP certified) design. Equipped with heavy-duty casters and a SENDit wireless system, this frame eliminates the need for cable connections between the scale base and operator display—making it ideal for dynamic work environments such as warehouses, production floors, and logistics centers.

Its onboard transmitter provides excitation to the load cells, removing dependency on the indicator. Each transmitter/receiver pair is uniquely matched to avoid cross-communication, even in busy wireless environments. Designed for heavy-duty industrial use, this caster-based portability frame brings both flexibility and accuracy to the forefront of weighing operations.

Technical Specifications

Feature	Detail
Communication	Wireless (scale to indicator)
Indicator Compatibility	Compatible with digital indicators
Excitation Voltage	+4.8 VDC supplied by transmitter
Load Cell Capacity	16 × 350Ω or 32 × 700Ω load cells
Battery Life	Approximately 100 hours
Setpoints	2 setpoints with red/green LED display
Audible Alarm	Optional
Certification	NTEP Certified (Legal-for-Trade)
Frame Type	Heavy-duty with locking casters

RoughDeck HP Caster SENDit Portability Frame Dimensions

Scale Size	A (Outer Width)	B (Outer Length)	C (Frame Width)	D (Frame Length)
2.5 × 2.5 ft	33.92 in	33.92 in	30.75 in	30.75 in
3 × 3 ft	39.92 in	39.92 in	36.75 in	36.75 in
4 × 4 ft	51.92 in	51.92 in	48.75 in	48.75 in

Note: 1 in = 25.4 mm

Let’s Talk Solutions

Need wireless mobility in a Legal-for-Trade environment? The RoughDeck HP Caster SENDit Frame (NTEP) is your go-to portability system. Reach out today for custom configurations or to request a formal quote.
