Key Highlights
-
Double-ended beam with center loading
-
Stainless steel construction with IP67 environmental sealing
-
Capacity range: 1,000 to 75,000 lb
-
Ideal for tank and hopper weighing systems
-
3.0 mV/V full scale output for precise measurement
-
Withstands 150% overload and 100% sideload
-
Includes 25 ft polyurethane cable
-
Wide operating range from -18 °C to 65 °C
-
cFMus approved, two-year limited warranty

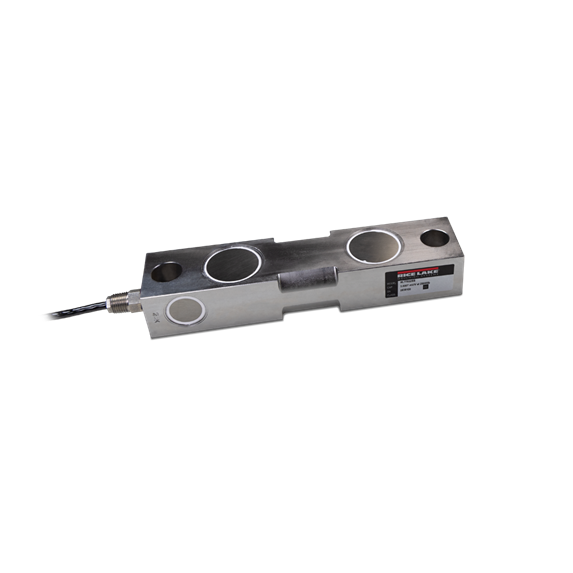

The Rice Lake RL77032SS load cell is expertly engineered for demanding industrial environments that require corrosion resistance and precision. Built from stainless steel and environmentally sealed to IP67, it offers outstanding durability and protection against dust, moisture, and chemicals.
Featuring a double-ended beam with center loading, this load cell is optimized for tank, hopper, and silo weighing applications. It supports a wide capacity range from 1,000 lb to 75,000 lb, delivering reliable results in both light and heavy-duty settings.
The 3.0 mV/V output, along with low hysteresis and nonlinearity, ensures consistently accurate and repeatable weight readings. With deflection engineered for long life, and a rugged build to endure overloads, the RL77032SS is a dependable choice for permanent and high-precision weighing systems.
Technical Specifications
| Parameter |
Value |
| Full Scale Output |
3.0 mV/V |
| Output Resistance |
700 (±5) ohm |
| Input Resistance |
770 (±10) ohm |
| Material |
Stainless steel |
| Seal Type |
Environmentally sealed, IP67 |
| Safe Overload |
150% full scale |
| Safe Sideload |
100% full scale |
| Rated Excitation |
5 to 10 VDC |
| Nonlinearity |
0.07% full scale |
| Hysteresis |
0.02% full scale |
| Insulation Resistance |
5,000 megohm |
| Cable Length |
25 ft, polyurethane jacket |
| Operating Temperature |
0 °F to 150 °F (-18 °C to 65 °C) |
| Warranty |
Two-year limited |
| Approvals |
cFMus |
Deflection at Capacity
| Capacity (lb) |
Deflection (in) |
| 1,000 to 2,500 |
0.01 |
| 5,000 |
0.015 |
| 10,000 to 20,000 |
0.022 |
| 25,000 |
0.036 |
| 50,000 |
0.052 |
| 75,000 |
0.07 |
Cable Color Code
-
Red: +Excitation
-
Black: –Excitation
-
Green: +Signal
-
White: –Signal
Dimensional Data
| Capacity (lb) |
A1 (in) |
A2 (in) |
C (in) |
D (in) |
E (in) |
F (in) |
| 1,000 to 5,000 |
0.50 |
1.25 |
1.25 |
1.25 |
7.50 |
6.25 |
| 10,000 to 25,000 |
0.81 |
1.99 |
1.44 |
1.94 |
8.75 |
7.50 |
| 50,000 |
1.31 |
3.00 |
2.44 |
2.94 |
13.50 |
11.50 |
| 75,000 |
1.31 |
— |
2.44 |
2.94 |
13.50 |
11.50 |
Upgrade your industrial weighing system with the Rice Lake RL77032SS Stainless Steel Load Cell. Designed to withstand harsh environments while delivering precise and reliable performance, this load cell is perfect for tank, hopper, and silo applications.
Order now or contact us for custom load cell configurations and expert assistance.
