Key Highlights
-
Designed to meet the demands of high-precision weighing with a mono-metal tuning fork sensor for fast stabilization.
-
Supplied as a single unit with a large, 16.5 mm-high backlit LCD and a 20-step bar graph display.
-
Equipped with an RS-232 interface for seamless connectivity to printers or PCs for data logging.
-
Built with a durable plastic housing (models under 1,000 g) or a plastic top with a die-cast bottom (models over 1,000 g).
-
Supports multiple operating modes including weighing, counting, percentage, and checkweighing for versatile applications.
-
Offers weighing in 12 different units to accommodate various standards and global requirements.
-
Available with optional rechargeable battery and underweigh hook for expanded functionality.

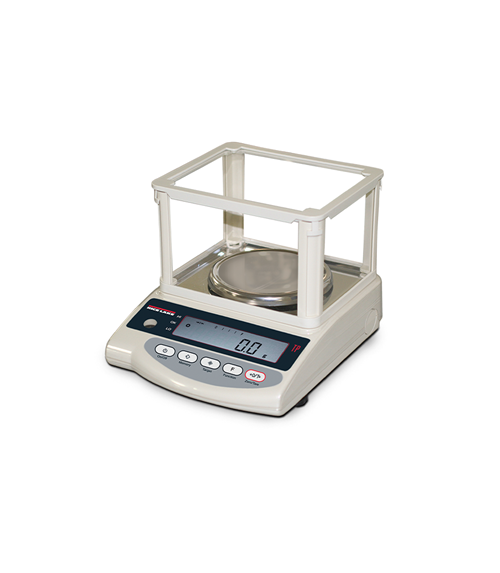

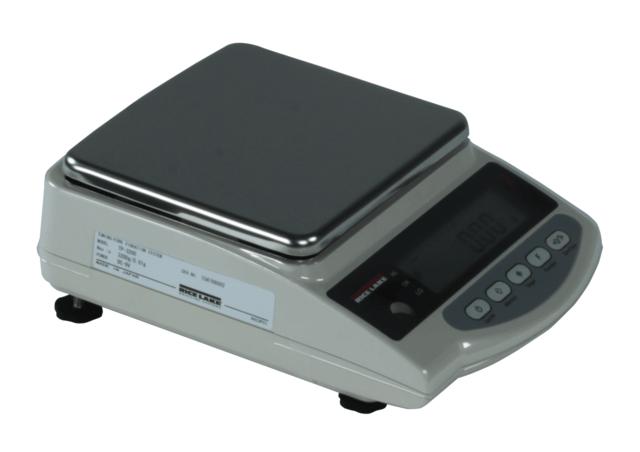

The TP Series balance delivers a straightforward yet powerful weighing solution suitable for a wide range of professional applications. Its mono-metal tuning fork sensor ensures quick response times and consistent stability, allowing users to obtain accurate readings rapidly—even in dynamic environments. The large backlit display, complemented by a 20-step bar graph, provides clear visibility of weight changes and stability indicators, making it easy to monitor measurements at a glance.
Designed to enhance operational efficiency, the TP Series includes versatile modes such as unit counting and percentage weighing, enabling users to perform complex tasks with ease. The ability to weigh in 12 different measurement units ensures compatibility with diverse industry standards, from laboratory research to industrial quality control. The compact footprint makes it ideal for workspaces where bench space is at a premium, while optional accessories like the rechargeable battery and underweigh hook further extend its utility for field or specialized applications.
Specifications
| Specification | Details |
|---|---|
| Sensor Type | Mono-metal Tuning Fork Sensor (MMTS) |
| Display | 16.5 mm backlit LCD with 20-step bar graph |
| Interface | RS-232 (1200/2400/2800/9600 baud, 8 data bits, 5-pin DIN connector) |
| Housing | Plastic (models <1,000 g); Plastic top / die-cast bottom (models >1,000 g) |
| Weighing Units | Carat, pennyweight, troy ounce, decimal ounce, decimal pound, and more |
| Operating Modes | Weight, count, percentage, limit function (checkweighing) |
| Power | 120 VAC adapter included |
| Battery Option | Nickel-cadmium, 12-hour run time, 24-hour charge time |
| Calibration Weights | TP-220: 200 g; TP-820: 800 g; TP-3200: 3,000 g; TP-8200: 8,000 g; TP-12K: 12,000 g |
| Operating Temperature | 41 °F to 95 °F (5 °C to 35 °C) |
| Estimated Weight | 6.2 lb (2.8 kg) |
| Warranty | Five-year limited |
| Return Policy | Rice Lake standard policy |
Model Specifications
| Model | Capacity | Readability | Repeatability | Linearity | Pan Size | Weighing Chamber | Dimensions | Part # |
|---|---|---|---|---|---|---|---|---|
| TP-220 | 220 g | 0.001 g | 1 division | 1 division | Ø 4.6 in (117 mm) | 3.7 in (95 mm) | 9.2 × 7.1 × 6.6 in (including wind shield) (235 × 182 × 170 mm) | 107244 |
| TP-820 | 820 g | 0.01 g | 1 division | 1 division | 6.6 × 5.5 in (168 × 140 mm) | N/A | 9.2 × 7.1 × 2.9 in (235 × 182 × 75 mm) | 107245 |
| TP-3200 | 3,200 g | 0.01 g | 1 division | 1 division | 7 in × 6.2 in (178 × 158 mm) | N/A | 10.1 × 7.5 × 3.4 in (265 × 192 × 87 mm) | 107246 |
| TP-8200 | 8,200 g | 0.1 g | 1 division | 1 division | 7 in × 6.2 in (178 × 158 mm) | N/A | 10.1 × 7.5 × 3.4 in (265 × 192 × 87 mm) | 107247 |
| TP-12K | 12,000 g | 0.1 g | 1 division | 1 division | 7 in × 6.2 in (178 × 158 mm) | N/A | 10.1 × 7.5 × 3.4 in (265 × 192 × 87 mm) | 107248 |
Upgrade your measurement accuracy with the Rice Lake TP Series Toploader Balance. Contact our team today to request pricing, confirm availability, or speak with a calibration specialist for your laboratory or metrology requirements.
