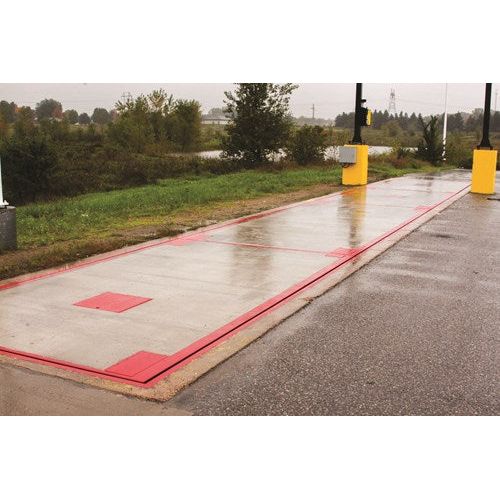

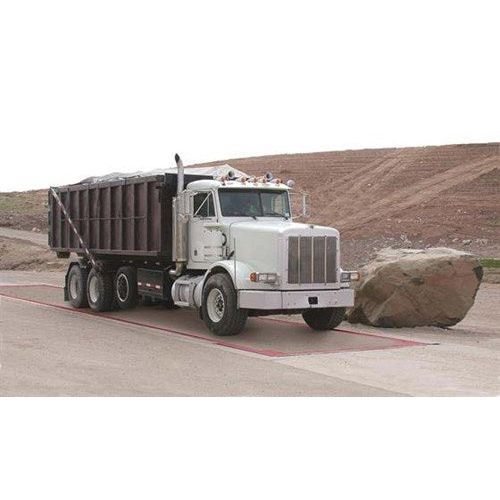

SURVIVOR® PT Series Pit-type Truck Scale

Key Highlights

• Purpose-built for pit foundation installations

• Features a 2 × 2 ft manhole for direct pit access to load cells

• Equipped with G-Force™ self-centering mount assemblies to eliminate check rods

• 8.5-inch reinforced concrete deck, poured in one continuous slab on-site

• Wide flange I-beams and cross beams minimize deflection and improve durability

• Rodent-proof conduit encases all cables for long-lasting protection

• NTEP and Measurement Canada approved for legal-for-trade use

• Full scale capacity of up to 270000 lb with 120000 lb CLC and DTA ratings

• Optional steel deck and high-clearance 18 in beams available

• Designed for heavy-duty, high-traffic industrial operations

The Rice Lake SURVIVOR® PT Series Pit-Type Truck Scale is designed for operations requiring a flush-mount installation in a pit foundation. This heavy-duty scale offers exceptional performance with a reinforced 8.5-inch concrete deck, poured on-site in a single slab to eliminate weak points and enhance the overall strength of the weighbridge.

The pit access design includes a standard 2 × 2 ft manhole for direct access to load cells and system components. Maintenance is easy and efficient with the option of top-access junction boxes. The scale’s G-Force™ mounting system ensures it returns to center after loading without the need for bumper bolts or check rods, significantly reducing wear and simplifying operation.

The SURVIVOR PT uses wide flange I-beams and steel cross beams to distribute weight efficiently and reduce structural fatigue. It’s certified by NTEP and Measurement Canada, making it fully compliant for legal-for-trade operations across North America. Optional upgrades like steel decks, grain dumps, stainless steel components, and digital diagnostic systems like iQUBE2® make it easy to configure the PT Series to meet your site’s unique needs.

Specifications

Optional Features

• Steel deck alternative

• 20 lb or 50 lb division (up to 400000 lb capacity with 50 lb division)

• 18 in main beams for improved pit clearance

• Surface-mounted or top-access junction box

• Grain dump and dolly down plate

• Manhole-integrated ladder

• 3/8 in, 1/2 in, 1 in, or 2 in steel deck plate upgrades

• Stainless steel load cells and suspension hardware

• Galvanized weighbridge and hardware

• Corrosion-resistant coatings

• iQUBE2® digital diagnostic junction box

• iQUBE2 + 1280 or 920i® programmable weight indicator bundles

Engineered for reliable performance in pit foundations, the SURVIVOR® PT Series Truck Scale is the go-to solution for flush-mount weighing applications. Its durable concrete deck, smart load cell access, and optional digital diagnostics make it ideal for high-volume commercial and industrial use.

Contact SellEton Scales today to request a quote or speak to our team about configuring a pit-type truck scale tailored to your facility's needs.
