Are you faced with the challenge of obtaining precise and reliable weight measurements in industrial settings?

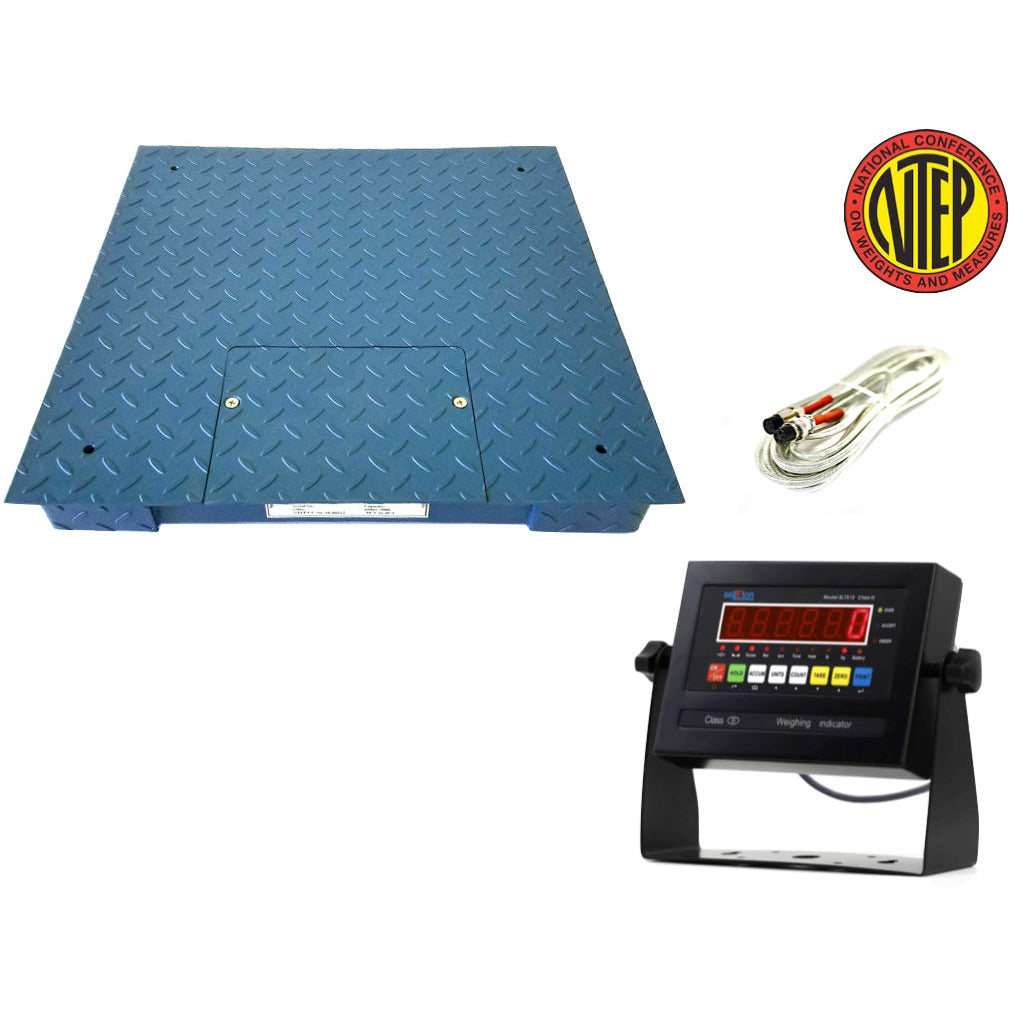

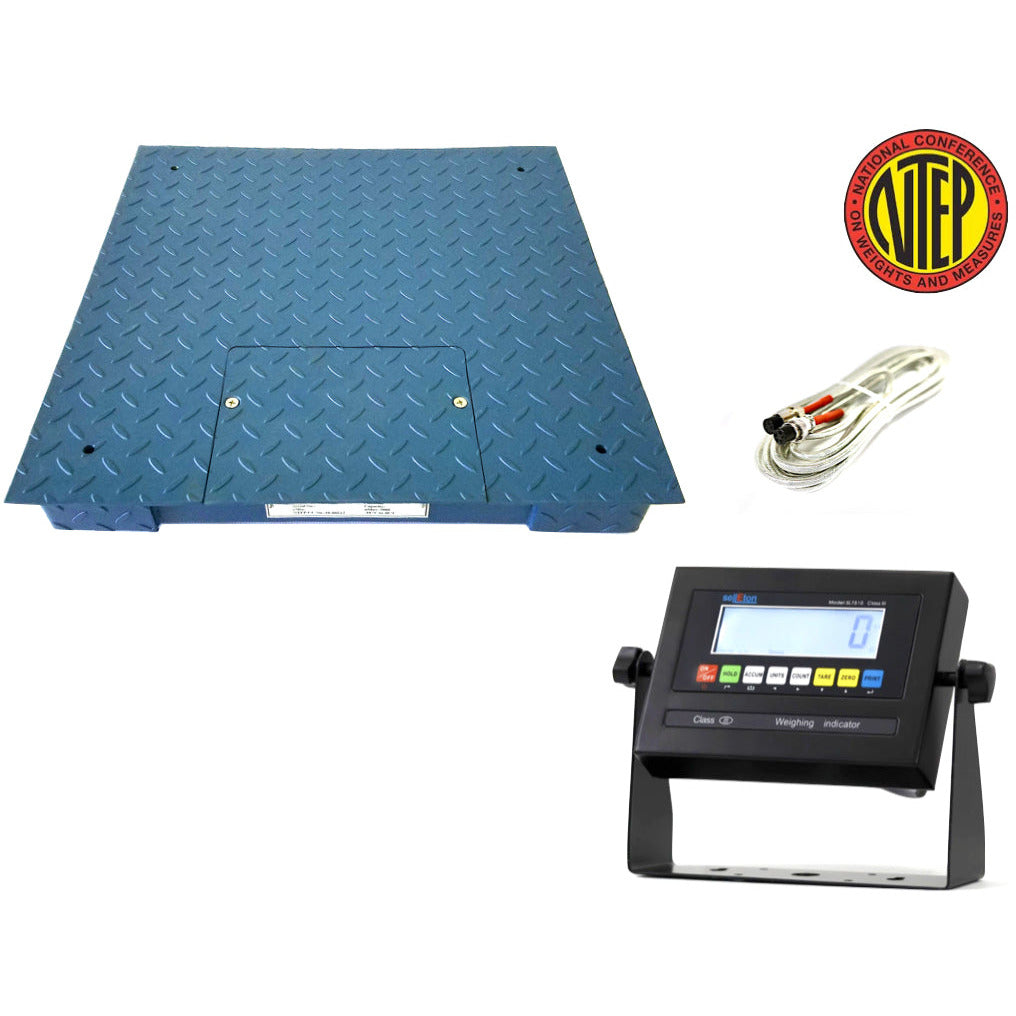

Overcome your industrial weighing challenges with the SellEton SL-800-2x2 NTEP Certified Industrial Floor Scale, featuring a robust MA Analog Output System. This scale is engineered to deliver high-accuracy readings and seamless integration with monitoring systems, crucial for industries requiring stringent compliance and operational precision. Its NTEP certification and advanced analog output make it a top choice for businesses looking to enhance efficiency and reliability.
Key Benefits:
-
NTEP Certified Accuracy: Meet strict regulatory standards with a scale that guarantees precision and legal compliance.
-
4-20 mA Analog Output: This device integrates smoothly with external control systems and data loggers, providing reliable and continuous data for monitoring and analysis.
-
Durable Design: Built to withstand the demanding conditions of industrial environments, ensuring longevity and consistent performance.
-
High Resolution: Achieve satisfactory measurement accuracy with a resolution of 1/1000, perfect for precise weight determinations.
-
Versatile Load Handling: It supports a wide range of load resistances from 100 to 350 ohms, offering flexibility for various industrial applications.
-
Easy Operation: Features like the TARE key simplifies workflow by instantly resetting the output current and facilitating quick adjustments during operations.
-
Reliable Power: It comes with a SellEton SL-7510 Mild Steel Indicator, selectable between lb and kg, powered by a rechargeable battery for continuous operation.
-
NTEP Certified (Legal for trade): COC # 22-056
Indicator Key Features:
-
Enclosure Options: Available in Painted Steel, Stainless Steel, or IP67 NEMA 4X Washdown Stainless Steel.
-
Power Options: Includes an AC adapter; optional battery available.
-
Weighing Units: Supports lb/kg, g/oz, lb (LCD only).
-
Functions: Gross/Tare/Pre-Set Tare/Zero, multiple hold functions, count and accumulation weighing.
-
Alarms: Features overload/underload alarms and an automatic error warning alarm.
-
Display: 1” LED or LCD with backlight; displays up to 50,000 graduations.
-
Connectivity: Capable of connecting to a remote display and multiple printers.
-
Certifications: NTEP approved for 5,000 divisions. (COC # 22-027)
-
Additional Features: Power saving mode, automatic date and time update, manual zero range setting, splash-proof keyboard, and display.
-
Technical: Full Duplex RS-232 Serial Port, drives up to 6 350mA load cells.
Indicator Specifications:
-
Display: LCD or LED, 1-inch with a 6-digit numeric readout.
-
Units: lb, kg (primary), oz, g (LCD only).
-
Accuracy: Class III, 5,000 e.
-
Resolution: Up to 120,000 dd industrial, 10,000 dd HB44.
-
Excitation Voltage: 5V DC.
-
Output Current: Max 120 mA.
-
Load Cell Compatibility: Up to 6 load cells of 350 Ω each.
-
Display Resolution: 30,000; ADC: 2,000,000.
-
Zero Stability Error: TKspn < ± 6 ppm/K.
-
Sensitivity: Internal 0.3 μV/d.
-
Input Voltage: -30 to +30mV DC.
-
Power Supply: 100~240VAC @ 50/60Hz, consumption 5W @ 9VDC.
-
Operating Temperature: 14 °F to 104 °F (-10 °C to +40 °C).
-
Internal Resolution: 24-bit A/D Sigma-Delta, 1,048,000 d.
-
Display Increment: Selectable 1, 2, 5, 10, 20, 50.
-
Decimal Point: Selectable 0, 1, 2, 3, 4.
-
Conversion Rate: 12 samples/second typical.
-
Analog Signal Input Range: 1mV / V to 3mV/V.
-
Analog Signal Sensitivity: Minimum 0.1 uV/graduation.
-
Measurement Rate: 0~15mV.
-
Auto Zero Tracking: 0 - 5 dd increments.
Customization Options for the SL-800-Series Floor Scale
Enhance your operations with a range of add-on features designed to meet your specific needs:
-
Printer Integration: Easily attach a printer for instant weight documentation, streamlining record-keeping processes.
-
Scoreboard Options: Opt from six sizes of scoreboards for superior visibility, allowing distant viewing of weight data beyond the standard LCD indicator.
-
Pit-Frame Installation: Choose between a permanent, in-ground pit frame installation or versatile industrial portable pit frames for flexible placement.
-
Data Collection Software: Utilize our specialized software to track and manage weight records efficiently and efficiently.
-
Ramp Access: Implement optional ramps to facilitate simple and safe loading and unloading using carts or pallet jacks.
-
Indicator Stands: Select from various stands to ensure your indicator is optimally positioned for ease of use and visibility.
-
Explosion-Proof Indicator: Equip your scale for use in intrinsically safe environments with our SL-7510-SS-C-EX Explosion Proof Indicator, preventing ignition in explosive atmospheres.
-
Water-Resistant Upgrades: Enhance your scale's resilience in outdoor or moist conditions, ensuring continuous performance and durability.
-
Bumper Guards: Install bumper guards to shield your scale from accidental impacts with forklifts or other heavy machinery.
-
Output Options: Choose from 4-20mA or 0-5V relay outputs to seamlessly integrate with existing systems for enhanced data communication.
Custom Manufacturing
If you require custom-made scales, SellEton Scales can manufacture scales in any size using carbon steel, galvanized steel, stainless steel, and aluminium.
Step into a world of enhanced precision and reliability with the SellEton SL-800-2x2 Floor Scale. Feel the confidence of knowing every measurement contributes to superior quality control and operational excellence. Equip your facility with this top-tier industrial scale and experience the peace of mind and satisfaction of having dependable and accurate weighing solutions at the heart of your operations.
Please contact our sales team for more information or to discuss your specific requirements. We're here to help you find the perfect weighing solution for your industrial needs.
Attention:
If you plan to use the scale outdoors, it is essential to have a Stainless Steel indicator, Stainless steel Load cells, & Stainless steel junction box. This ensures rust resistance and minimizes errors in readings caused by environmental factors.
Please note that our scales are not waterproof "AS IS." However, we offer an upgrade option to make them suitable for rainy or humid regions. This upgrade ensures reliable performance and longevity.
