CW-90 Checkweigh Indicator

Original price $1,144.25 - Original price $1,144.25
Original price
$1,144.25
$1,144.25 - $1,144.25
Current price $1,144.25

Key Highlights

  • Stainless steel IP66-rated enclosure with Gore-Tex® breather vent

  • 23-key membrane keypad with numeric, function, and target keys

  • High-visibility 0.8 in red LED display with annunciators

  • Stores up to 50 IDs for quick configuration recall

  • Auto print and accumulator functions built-in

  • Real-time data collection and audit trail tracking

  • Configurable print formats with two RS-232 ports

  • Optional Ethernet, USB, or fiber-optic communication

  • Four configurable digital I/O channels

  • Firmware upgradeable in the field

  • NTEP, Measurement Canada, NSF, CE, and cULus listed

The Rice Lake CW-90 Checkweigh Indicator is the go-to solution for quality control environments and high-speed industrial applications. Built with 304 stainless steel and an IP66-rated enclosure, this indicator is rugged enough for harsh washdown settings, while its large LED display and intuitive keypad make operation simple and efficient for production teams.

Designed with user convenience in mind, the CW-90 allows configuration directly from the front keypad, eliminating exposure to moisture and contamination by removing the need to open the back panel. With the ability to store up to 50 product IDs, and featuring auto-print and audit trail tracking, the CW-90 ensures both operational speed and compliance are never compromised.

Its digital I/O channels, advanced signal filtering, and real-time communication make it an excellent choice for integration into automation systems. Whether you're weighing, classifying, or recording data, the CW-90 is a reliable and versatile indicator for every industrial setting.

CW-90 Indicator Specifications

Electrical & Communication

Feature Details
Power Supply 115 to 230 VAC, 50/60 Hz
Power Consumption 1.5 A @ 115 VAC, 0.75 A @ 230 VAC (8 W)
Excitation Voltage +5 VDC, supports 8 × 350Ω or 16 × 700Ω cells
Analog Input Range -0.5 to 4.5 mV/V
Signal Sensitivity Min: 0.3 µV/graduation, Rec: 1.5 µV/graduation
A/D Sample Rate 7.5 to 960 Hz (software selectable)
RS-232 Ports Two full-duplex serial ports
Optional Communication Ethernet, USB, fiber-optic

Display & Controls

Feature Details
Display Type High-intensity red LED
Display Size 0.8 in, 14-segment, six-digit
Keypad 23-key membrane keypad
Display Resolution 100,000 counts
Annunciators %, kg, gm, lb, oz, motion, neg, zero, etc.

Mechanical & Environmental

Feature Details
Enclosure Material 304 Stainless Steel
Enclosure Rating IP66
Breather Vent Gore-Tex®
Operating Temperature 14 °F to 104 °F (-10 °C to 40 °C)
Firmware Field upgradeable
Time & Date Battery-backed
Digital I/O Four configurable channels
Warranty Two-year limited

Certifications

  • NTEP CC 08-092, Class III/IIIL 10,000d

  • Measurement Canada AM-5710

  • OIML R76/2006

  • EU Type Evaluation Cert. TC11569

  • NSF Certified

  • CE Marked

  • cULus Listed

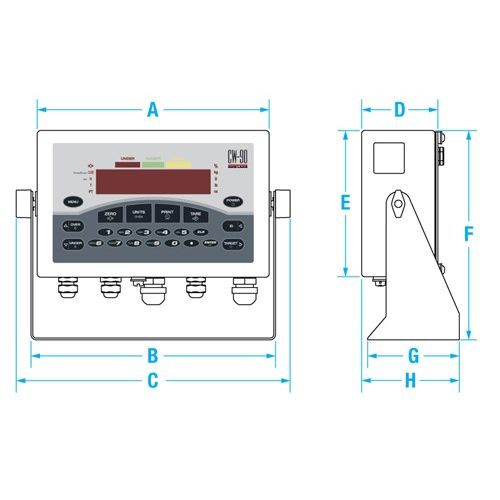

CW-90 Indicator Dimensions

Label Inches (mm)
A 9.5 in (241 mm)
B 10.02 in (255 mm)
C 11.24 in (285 mm)
D 3.12 in (79 mm)
E 6.00 in (152 mm)
F 8.57 in (218 mm)
G 3.75 in (95 mm)
H 4.00 in (102 mm)


Upgrade your checkweighing system today with the CW-90 Checkweigh Indicator.
Whether you're managing portion control or verifying weight compliance, the CW-90 is built for precision, speed, and reliability in demanding environments.
Order now from SellEton Scales and streamline your production with confidence.
