Key Highlights
-
High-speed performance – weigh, wrap, and label up to 35 packs per minute
-
Automatic tray identification and centering for consistent packaging
-
Dual-range weighing:
-
0–15 lb × 0.005 lb
-
15–30 lb × 0.01 lb
-
Variable speed infeed and film pre-stretching function for efficiency
-
Front-loading dual film rolls (two 5,000-foot rolls) with automatic selection
-

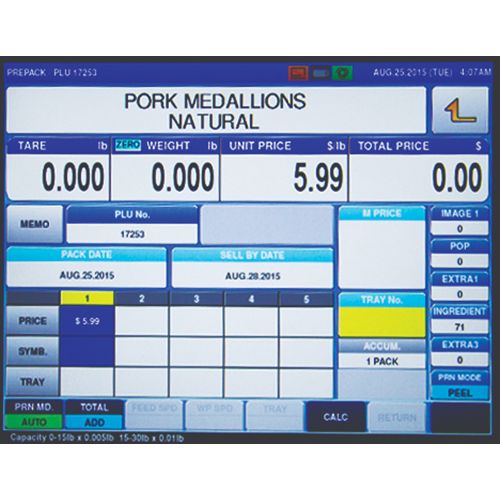

Large 12.1 in LCD color touchscreen with adjustable viewing angle
-
Robotic label application with selectable positioning
-
Prints required labeling including:
-
Custom graphics support for branding and promotional labels
-
Large 9 in main label roll capacity and 3 in thermal head
-
Ethernet communication (TCP/IP) for easy network integration
-
2 GB memory + 19 tactile keys for data entry and control
-
Compatible with third-party software: Upshop’s InterScale®, Invafresh’s ePLUM®, Droste PCScale Manager
-
Optional Day Glow Labeler: adds secondary pre-printed or custom labels for enhanced product marketing

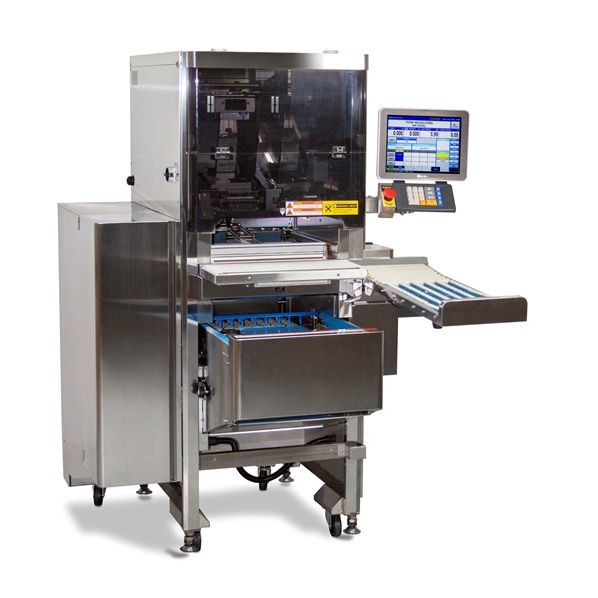

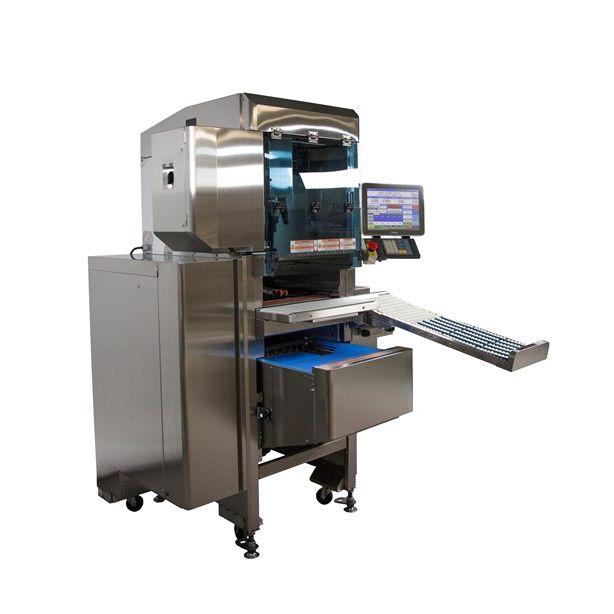

The Ishida WM-Ai Automatic Wrapper is a powerful, PC-based packaging solution that integrates weighing, wrapping, and labeling into a single high-speed system. With the ability to process up to 35 packs per minute, the WM-Ai maximizes productivity in supermarkets, grocery stores, and high-volume food retail operations.
Engineered for efficiency, the WM-Ai features automatic tray identification, variable speed infeed, and a film pre-stretch function that optimizes film usage. The front-loading dual film system (two 5,000-foot rolls) reduces downtime by allowing automatic film selection, while its 12.1-inch color touchscreen makes operation intuitive and accessible.
Labeling performance is equally advanced, with robotic label application, customizable positioning, and support for graphics, logos, and compliance text (safe handling, country of origin, nutrition). The system’s 2 GB memory and Ethernet communication ensure seamless integration with retail networks and product databases.
For added versatility, the WM-Ai with Day Glow Labeler provides a secondary label application, perfect for highlighting promotional items, special offers, or regulatory graphics. This option elevates packaging appearance, enhances consumer visibility, and drives product marketing.
Specifications
| Attribute |
Details |
| Cycle Speed |
Weigh/Wrap/Label up to 35 ppm |
| Weighing Capacity |
0–15 lb × 0.005 lb / 15–30 lb × 0.01 lb |
| Wrapping Size |
W: 3.7–14.9 in / D: 3.1–10.2 in / H: 0.4–5.1 in |
| Tray Height |
Up to 2.7 in (70 mm) |
| Display |
12.1 in Color Touchscreen |
| Film Rolls |
Two, 5,000 ft each; Automatic Selection |
| Film Width |
9.8–21 in (250–533 mm) |
| Label Roll (Main) |
9 in (230 mm) max O.D., 3 in (77 mm) I.D. |
| Label Roll (Day Glow) |
7.8–9 in (200–230 mm) O.D. options |
| Label Size (Main) |
Max 3.2 in (W) × 4.1 in (L) |
| Label Size (Day Glow) |
25–64 mm (W) × 25–64 mm (L) |
| Memory |
2 GB |
| Keys |
19 Tactile Keys |
| Connectivity |
Static TCP/IP Ethernet |
| Software Compatibility |
InterScale®, ePLUM®, PCScale Manager |
| Power Supply |
200–240V, 20 A circuit |
| Power Consumption |
360 W standby / 1800 W operation |
| Operating Temperature |
41–95 °F (5–35 °C) |
| Compliance |
NTEP CC 06-029, 2020 Nutrition Labeling |
| Weight Capacity Basis |
2,800 packs per day |
| Warranty |
One-Year Limited |
Maximize efficiency and consistency in your packaging process with the Ishida WM-Ai Automatic Wrapper. Order today from SellEton Scales for high-speed, compliant, and customizable wrapping and labeling performance—and upgrade to the Day Glow Labeler option for enhanced marketing and product visibility.
