Key Highlights
-
Multi-Device Connectivity – Supports up to 7 ScaleCore-based devices simultaneously
-
Browser-Based Interface – Access scales from phones, tablets, or PCs using HTML5
-
Built-in Wireless Router – Operates standalone or integrates into existing Wi-Fi networks
-
Power over Ethernet (PoE) – Flexible power options including PoE, DC input, and AC supply
-
User Access Control – Tiered login system for different user permission levels
-
Load Cell Summing – View individual readings or combine for total weight
-
Compact & Durable Design – IP65-rated aluminum enclosure (excluding AC model)
-
Seamless Integration – Compatible with popular MSI weighing systems and displays

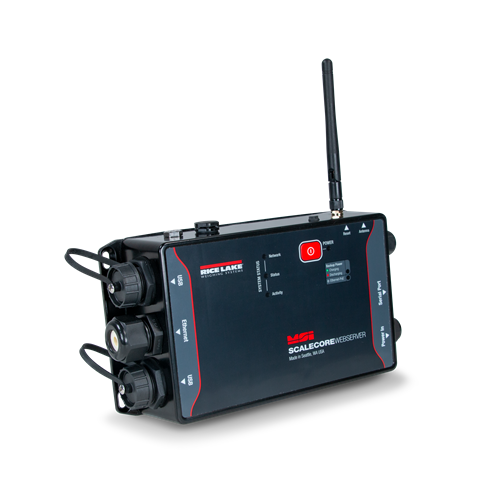

The MSI ScaleCore Webserver is a robust network interface that enables web-based remote monitoring and control of any MSI ScaleCore-equipped weighing system. Designed for seamless integration into both wired and wireless environments, it provides multi-device visibility from any smartphone, tablet, or PC running a modern web browser.
Engineered for compatibility with up to seven different MSI weighing instruments, this solution is ideal for complex systems such as multi-point lifting, tank leg monitoring, or industrial platforms requiring synchronized or individual readouts. Operators can easily view individual scale weights or summed totals directly through the interface.
Whether deployed as a standalone Wi-Fi router or on an existing network, the MSI Webserver ensures flexibility in demanding industrial settings. The tiered login structure enhances security by giving supervisors advanced controls while restricting operator access to day-to-day functions.
Constructed with a rugged IP65-rated aluminum enclosure, the Webserver is capable of enduring challenging environments, and its Power over Ethernet (PoE) capability reduces the need for extra cabling or power sources.
Compatible Devices
Specifications Table
| Feature |
Details |
| Power Options |
5–6 VDC, 7–14 VDC, 85–265 VAC, PoE |
| Connectivity |
Wi-Fi 2.4 GHz IEEE 802.11g, Gigabit Ethernet, 2 × USB 2.0, RS-232 |
| Display Compatibility |
HTML5-capable browsers (PC, tablet, smartphone) |
| Multi-Device Support |
Up to 7 connected ScaleCore-based weighing devices |
| Login Access |
Tiered (Supervisor & Operator) |
| Communication Speed |
RS-232 up to 460 Kbps |
| Enclosure Rating |
IP65 black powder-coated aluminum (excludes AC version) |
| Status Indicators |
Units: lb, kg, ton, t; net/gross; motion; zero |
| Effective Range |
100–300 ft (line of sight); consult for extended range |
| Operating Temperature |
14 °F to 104 °F (-10 °C to 40 °C) |
| Warranty |
One-year limited |
| Approvals |
NTEP 21-098 Classes III and IIIL at 10,000d |

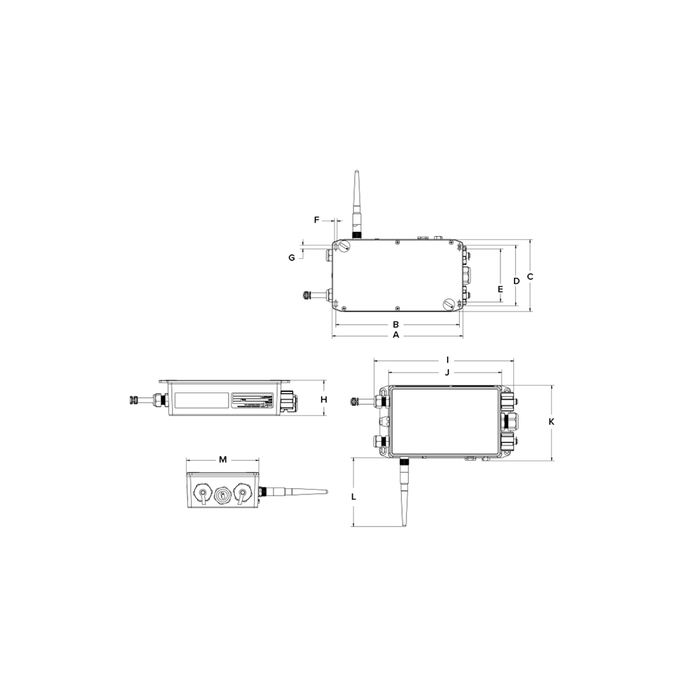

Dimensions
| Label |
Size |
Label |
Size |
| A |
8.54 in (217 mm) |
H |
2.23 in (57 mm) |
| B |
8.09 in (205 mm) |
I |
9.13 in (232 mm) |
| C |
4.70 in (119 mm) |
J |
7.40 in (188 mm) |
| D |
3.97 in (101 mm) |
K |
4.90 in (124 mm) |
| E |
3.47 in (88 mm) |
L |
4.50 in (114 mm) |
| F |
0.17 in (4 mm) |
M |
4.70 in (119 mm) |
| G |
0.25 in (6 mm) |
|
|
Simplify your industrial weighing system with web-based access and real-time control.
The MSI ScaleCore Webserver makes scale monitoring smarter, faster, and more efficient—wherever you are.
Order now or contact us to integrate it into your existing weighing setup.
