Key Highlights
-
Remote Monitoring via Web Browser – Works on PC, tablet, or phone
-
Wi-Fi or Ethernet Connectivity – Operate on existing network or act as a standalone router
-
Supports up to 7 Devices – Monitor and control multiple MSI ScaleCore-based scales
-
Built-in Summing Functionality – Ideal for multi-point lifting and tank load cell setups
-
RS-232 Communication up to 460 Kbps
-
Tiered Login Access – Supervisor and operator access levels
-
PoE Supported – Simplified installation with Power over Ethernet
-
HTML5 Compatible – Works on any browser with modern standards
-
Compact, IP65 Aluminum Enclosure – Rugged and weather-resistant design
-
NTEP Certified – Legal for Trade (CC 21-098)

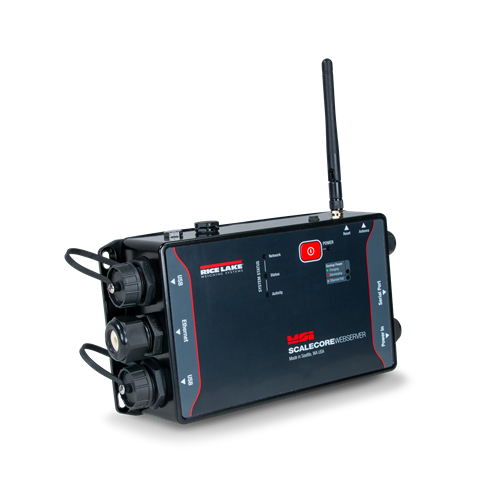

The MSI ScaleCore Webserver is an advanced browser-based scale management system designed to remotely monitor, control, and manage multiple MSI weighing devices from any network-connected device. Whether you’re using a desktop, smartphone, or tablet, this interface provides real-time access to scale data without the need for software installation.
Ideal for operations that require visibility of multiple pick points or load cells, this webserver allows users to view individual or summed weights across up to seven MSI ScaleCore-enabled devices, including models like the MSI-4260, MSI-3460, MSI-8000, and more.
The dual network configuration allows it to function either as a standalone wireless router or to integrate into an existing Wi-Fi network. The unit also supports Power over Ethernet (PoE) for simplified installation and cleaner wiring. Its tiered login feature ensures secure, restricted access, ideal for environments where operator and supervisor permissions need to be managed separately.
Designed with flexibility, reliability, and industrial robustness in mind, the MSI ScaleCore Webserver is the perfect addition for network-enabled crane scales, load cell kits, or tank systems.
Specifications
| Feature |
Details |
| Power Input |
5–6 VDC, 7–14 VDC, 85–265 VAC, or PoE (Power over Ethernet) |
| Connectivity |
Wi-Fi (2.4 GHz IEEE 802.11g), Gigabit Ethernet |
| Communication Ports |
RS-232 Serial (up to 460 Kbps), 2 × USB 2.0 |
| Device Support |
Up to 7 MSI ScaleCore-enabled instruments |
| User Interface |
Web-based, compatible with any HTML5-supported browser |
| Summing Functionality |
Individual and combined weight views |
| Login Control |
Tiered login for operators and supervisors |
| Effective Range |
100–300 ft line-of-sight (wireless); consult factory for extended range |
| Status Annunciators |
lb, kg, short tons (tn), metric tons (t), gross/net, motion, center of zero |
| Enclosure |
IP65 rated, aluminum, black powder-coated (excludes 85–265 VAC model) |
| Operating Temp. |
14 °F to 104 °F (–10 °C to 40 °C) |
| Warranty |
One-year limited |
| Approvals |
NTEP CC 21-098, Classes III & IIIL up to 10,000 divisions |
Compatible Devices
The MSI ScaleCore Webserver is compatible with all MSI weighing systems using ScaleCore firmware and equipped with optional Wi-Fi. Supported models include:
-
MSI-3460
-
MSI-4260 / 4260M
-
MSI-7000 / 7000HD / 7001 / 7001HD
-
MSI-7300 (consult for application-specific integration)
-
MSI-8000 / 8000HD / 8004HD

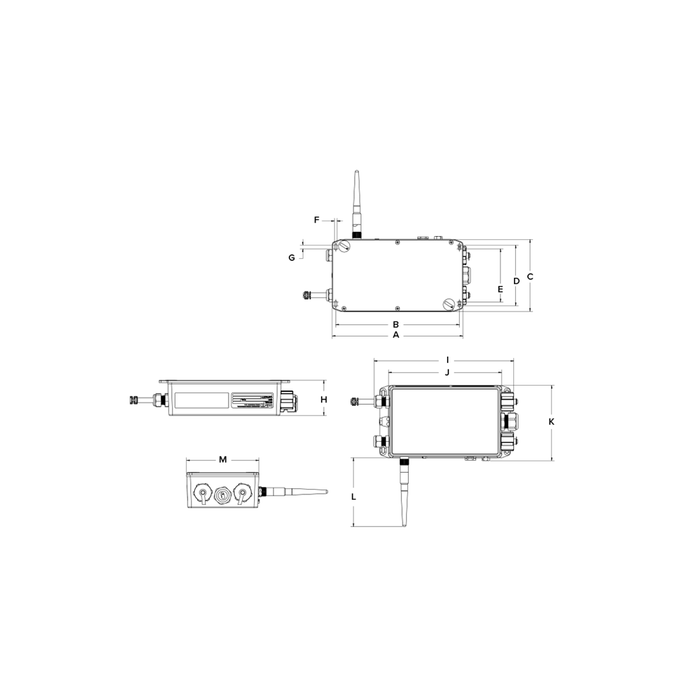

Dimensions
| Code |
Inches (in) |
Millimeters (mm) |
| A |
8.54 in |
217 mm |
| B |
8.09 in |
205 mm |
| C |
4.70 in |
119 mm |
| D |
3.97 in |
101 mm |
| E |
3.47 in |
88 mm |
| F |
0.17 in |
4 mm |
| G |
0.25 in |
6 mm |
| H |
2.23 in |
57 mm |
| I |
9.13 in |
232 mm |
| J |
7.40 in |
188 mm |
| K |
4.90 in |
124 mm |
| L |
4.50 in |
114 mm |
| M |
4.70 in |
119 mm |
Take your weighing system to the next level with MSI’s ScaleCore Webserver—offering unmatched flexibility, real-time remote access, and advanced control from anywhere. Whether you're operating in a plant, warehouse, or out in the field, this rugged, network-ready solution delivers seamless monitoring and management.
Order now or contact us for integration support and application-specific recommendations!
