Key Highlights
-
Backlit LCD Display with 16 mm characters for clear readability in all environments
-
Fast Stabilization (< 2 Seconds) ensures efficient and reliable weighing results
-
Multiple Weighing Units including carat, troy ounce, pennyweight, newton, decimal ounce, and decimal pound
-
RS-232 Interface for direct PC or printer connectivity
-
Remote Zeroing function for ease of operation
-
NiMH Battery Option available for portable use
-
Compact and Lightweight Design (3.5 lb) for portability in labs, schools, and production lines
-
Durable Build with stainless steel pan and ABS housing for long-term performance
-
Five-Year Limited Warranty for peace of mind

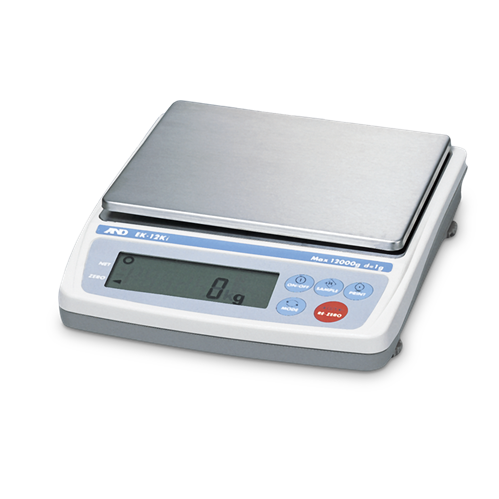

The A&D EK-i Series Toploader Balance is designed for users who need precision, speed, and portability in one compact unit. With a backlit LCD display, quick stabilization time, and remote zeroing capability, this balance is ideal for laboratory, industrial, and educational applications.
The EK-i Series offers versatile weighing with multiple units and supports counting and percentage modes, making it useful for a variety of weighing and analytical tasks. Equipped with an RS-232 interface, it easily connects to printers or PCs for efficient data transfer and record-keeping.
Compact, lightweight, and rugged, the EK-i Series combines portability with professional-grade accuracy, ensuring reliable results across a wide range of environments.
Specifications
Feature | Specification |
---|---|
Weighing Units | Carat, pennyweight, troy ounce, newton, decimal ounce, decimal pound |
Operating Modes | Counting, percentage |
Power | 120 VAC adapter (optional Ni-MH battery pack) |
Stabilization Time | < 2 seconds |
Display | Seven-segment LCD with backlight, 16 mm character height |
Calibration Weights | EK-120i: 120 g, EK-200i: 200 g, EK-300i: 300 g, EK-410i: 400 g, EK-610i: 400 g, EK-2000i: 2000 g, EK-3000i: 3000 g, EK-4100i: 4000 g, EK-6100i: 6000 g |
Operating Temp. | 14 °F to 104 °F (-10 °C to 40 °C) |
Humidity | < 85% RH (non-condensing) |
Est. Weight | 3.5 lb (1.5 kg) |
Warranty | Five-year limited |
Models and Dimensions
Model | Capacity | Readability | Repeatability | Linearity | Pan Size | Dimensions (W × D × H) | Part # |
---|---|---|---|---|---|---|---|
EK-120i | 120 g | 0.01 g | 0.01 g | ±0.01 g | Ø 4.3 in (110 mm) | 7.5 × 8.6 × 2.2 in (190 × 218 × 55 mm) | 97747 |
EK-200i | 200 g | 0.01 g | 0.01 g | ±0.01 g | Ø 4.3 in (110 mm) | 7.5 × 8.6 × 2.2 in (190 × 218 × 55 mm) | 97748 |
EK-300i | 300 g | 0.01 g | 0.01 g | ±0.02 g | Ø 4.3 in (110 mm) | 7.5 × 8.6 × 2.2 in (190 × 218 × 55 mm) | 97749 |
EK-410i | 400 g | 0.01 g | 0.01 g | ±0.02 g | Ø 4.3 in (110 mm) | 7.5 × 8.6 × 2.2 in (190 × 218 × 55 mm) | 97750 |
EK-610i | 600 g | 0.01 g | 0.01 g | ±0.02 g | Ø 4.3 in (110 mm) | 7.5 × 8.6 × 2.2 in (190 × 218 × 55 mm) | 97751 |
EK-2000i | 2000 g | 0.1 g | 0.1 g | ±0.1 g | 5.2 × 6.7 in (133 × 170 mm) | 7.5 × 8.6 × 2.2 in (190 × 218 × 55 mm) | 97754 |
EK-3000i | 3000 g | 0.1 g | 0.1 g | ±0.2 g | 5.2 × 6.7 in (133 × 170 mm) | 7.5 × 8.6 × 2.2 in (190 × 218 × 55 mm) | 97755 |
EK-4100i | 4000 g | 0.1 g | 0.1 g | ±0.2 g | 5.2 × 6.7 in (133 × 170 mm) | 7.5 × 8.6 × 2.2 in (190 × 218 × 55 mm) | 97756 |
EK-6100i | 6000 g | 0.1 g | 0.1 g | ±0.2 g | 5.2 × 6.7 in (133 × 170 mm) | 7.5 × 8.6 × 2.2 in (190 × 218 × 55 mm) | 97757 |
Enhance your weighing accuracy with the A&D EK-i Series Toploader Balance. Built for speed, reliability, and portability, this balance is the ideal choice for labs, schools, and production facilities.
Request a quote today and experience precision made simple.
