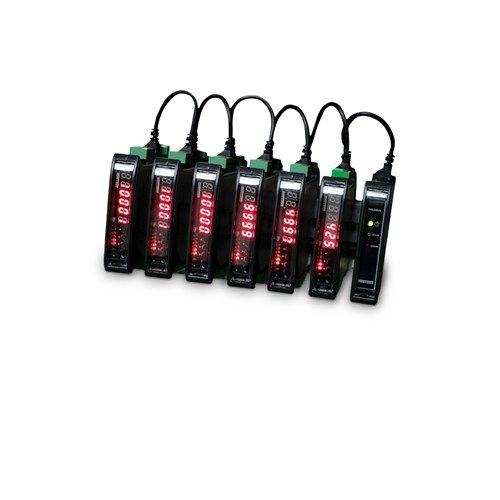

HUB mode connects up to 16 transmitters to a single fieldbus

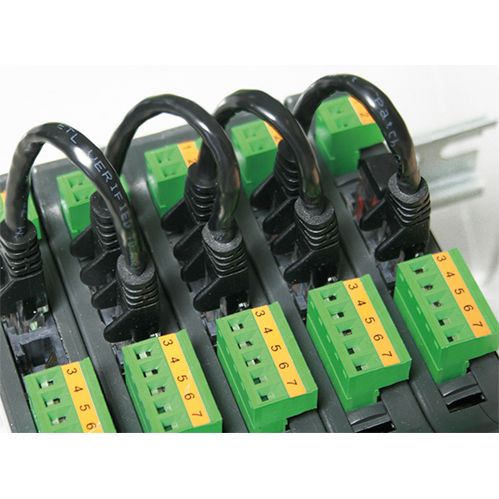

Dual RS-485 ports support daisy-chain network setups
Quick menu for theoretical and real calibration
Remote access and diagnostics via web browser over Ethernet/IP, Profinet, and Modbus TCP

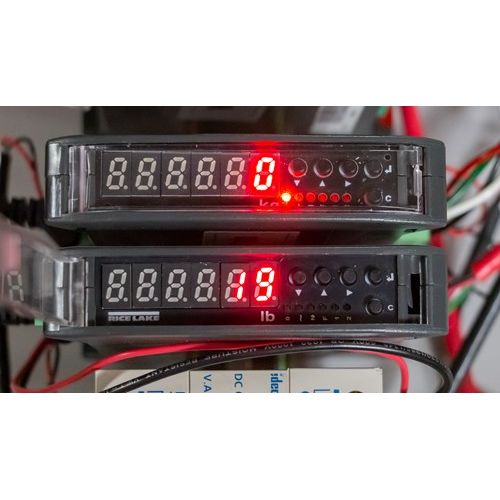

Red LED 6-digit display and compact DIN rail mountable design
Modbus RTU or ASCII serial protocols for compatibility
Multi-range mode supports up to 3,000 divisions per range
Designed for fast integration using Rice Lake Tools software

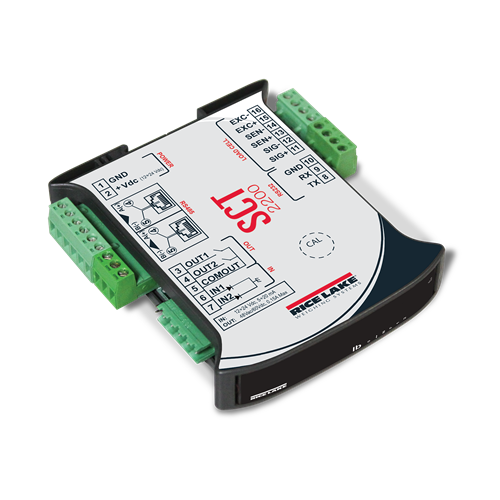

The Rice Lake SCT-2200 is a high-performance digital signal conditioning transmitter that brings robust connectivity and smart control to your weighing systems. Designed to support up to 16 transmitters via HUB mode, it’s perfect for multi-scale setups requiring centralized communication and calibration.
With dual RS-485 ports, the SCT-2200 simplifies daisy-chain configurations, allowing seamless data sharing across devices. Its remote access capability via Ethernet/IP, Profinet, or Modbus TCP enables operators to configure, monitor, and calibrate systems directly from a mobile device or PC browser—no physical interaction required.
Engineered for industrial environments, this compact transmitter supports real and theoretical calibration, with multiple linearization points for high-accuracy applications. Users can easily read net, gross, and tare weights and configure semi-automatic or preset tares, along with output thresholds. Its multi-range functionality allows flexible weighing with up to 3,000 divisions per range.
The SCT-2200 features diagnostic tools via serial communication, simulated keypress control, and optional printer management on the second serial port. Approved for legal-for-trade applications, it complies with NTEP, Measurement Canada, OIML, and other global standards.
| Parameter | Details |
|---|---|
| Power Supply | 12 to 24 VDC |
| Power Consumption | 70 mA min – 100 mA max |
| Excitation Voltage | 5 VDC, 120 mA (supports 8 × 350 Ω load cells) |
| Input Signal Range | ±39 mV |
| Signal Sensitivity | 0.3 μV per graduation |
| A/D Converter | 24-bit sigma-delta, up to 200 conv./sec. auto select |
| Internal Resolution | 1,500,000 counts |
| Display Resolution | Up to 800,000 counts |
| Digital Inputs/Outputs | 2 inputs (12/24 VDC), 2 outputs (150 mA, 48 VAC / 60 VDC) |
| Serial Communication | RS-485 and RS-232 ports |
| Protocols | Modbus RTU, Modbus ASCII, Ethernet/IP, Profinet, Modbus TCP |
| Analog Output (Optional) | 16-bit isolated: 0–20 mA, 4–20 mA, 0–5 VDC, 0–10 VDC |
| Annunciators | Net, center of zero, stability |
| Display | 6-digit red LED (0.31 in / 8 mm) |
| Keypad | Five tactile keys: Zero, Tare, Mode, Print, On/Off |
| Enclosure Rating | NEMA Type 1 with plastic pluggable connectors |
| Dimensions (L×H×D) | 4.72 × 4.52 × 0.98 in (120 × 115 × 25 mm) |
| Temperature Range | Operating: 14 °F to 122 °F (-10 °C to 50 °C) |
| Humidity | 85% RH non-condensing |
| Weight | 1 lb (0.5 kg) |
| Warranty | One-year limited |
| Approvals | NTEP 20-046, Measurement Canada AM-6165C, OIML R76, UKCA, cULus |
Upgrade your multi-scale operation with the advanced connectivity of the SCT-2200 Signal Conditioning Transmitter. With remote calibration, HUB mode networking, and full diagnostics, it's engineered for high-performance industrial weighing.
