Key Highlights
-
6-digit red LED display for weight visibility in any lighting
-
Choose between 2.4 in (60 mm) or 4 in (100 mm) digits
-
Auto Learn or manual configuration for seamless system integration
-
Integrated five-key waterproof keypad for easy command input
-
IP68-rated stainless steel housing with anti-condensation air valve
-
Configurable brightness with 6 intensity levels
-
Suitable for wall, hanging, or side mount installations
-
Compatible with various weight indicators and systems
-
Optional firmware allows configuration as full weight indicator (SCT-1100)

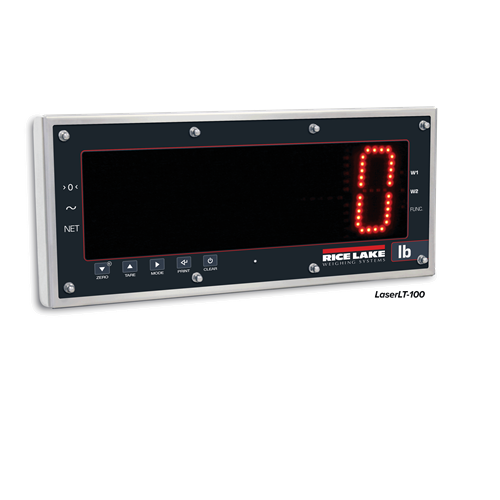

The LaserLT-60 and LaserLT-100 remote displays are designed to deliver clear, precise weight information in the most demanding environments. With industrial-grade stainless steel construction, IP68 waterproof rating, and an anti-condensation air valve, these displays are perfect for outdoor, high-humidity, and washdown environments.
Engineered for high visibility at long distances, the LaserLT-60 features 2.4 in digits visible up to 75 ft, while the LaserLT-100 uses 4 in digits visible up to 100 ft. Their red LED, 7-segment displays ensure maximum readability even in direct sunlight.
These displays support both Auto Learn mode for plug-and-play integration and manual configuration for complex setups. Parameters like motion, overload, net character, decimal placement, and termination characters can be manually tuned to fit your application.
With RS-232 and RS-485 communication, two digital inputs, and two digital outputs, the LaserLT series connects easily to existing systems and supports remote scale operations. When loaded with SCT-1100 firmware, the display becomes a fully functional weight indicator capable of multi-range, high-resolution A/D conversion and support for multiple load cells.
Specifications
| Feature |
Details |
| Power Supply |
110 to 240 VAC or 12 to 24 VDC |
| Display |
6-digit, 7-segment red LED; 2.4 in (LaserLT-60), 4 in (LaserLT-100) |
| Viewing Distance |
Up to 75 ft (60) / 100 ft (100) |
| Material & Rating |
304 stainless steel, IP68 rating |
| Communication Ports |
RS-232, RS-485 |
| Data Rate |
1200 to 115.2 kbps (software selectable) |
| Digital I/O |
2 inputs (12–24 VDC), 2 outputs (48 VAC/60 VDC max) |
| Update Rate |
1 to 20 updates/sec (selectable) |
| Temperature |
-40 °F to 120 °F (-40 °C to 49 °C) |
| Weight |
10 lb |
| Mounting Options |
Wall, side, and hanging brackets (with 15° visibility angle) |
| Compliance & Safety |
NTEP 20-046, CE Marked, Measurement Canada, Proposition 65 |
| Firmware Option |
SCT-1100 firmware for full indicator functionality |
| Humidity Tolerance |
10% to 90% non-condensing |
| Annunciators |
Zero, Motion, Net, Unit 1, Unit 2 |
| Keypad |
5-key sealed, waterproof membrane with configurable commands |

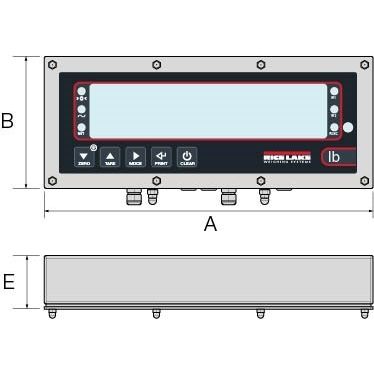

LaserLT Dimensions
LaserLT-60 Dimensions
| Label |
Measurement |
| A |
16.14 in (410 mm) |
| B |
6.50 in (165 mm) |
| C |
3.03 in (77 mm) |
| D |
7.28 in (185 mm) |
| E |
2.64 in (67 mm) |
| F |
4.84 in (123 mm) |
LaserLT-100 Dimensions
| Label |
Measurement |
| A |
16.93 in (430 mm) |
| B |
7.28 in (185 mm) |
| C |
2.52 in (64 mm) |
| D |
7.63 in (194 mm) |
| E |
2.52 in (64 mm) |
| F |
3.98 in (101 mm) |
Mount Bracket Hole Dimensions
| Label |
Measurement |
| G |
2.36 in (60 mm) |
| H |
0.39 in (10 mm) |
| I |
0.81 in (21 mm) |
| J |
0.24 in (6 mm) |
| K |
0.39 in (10 mm) |

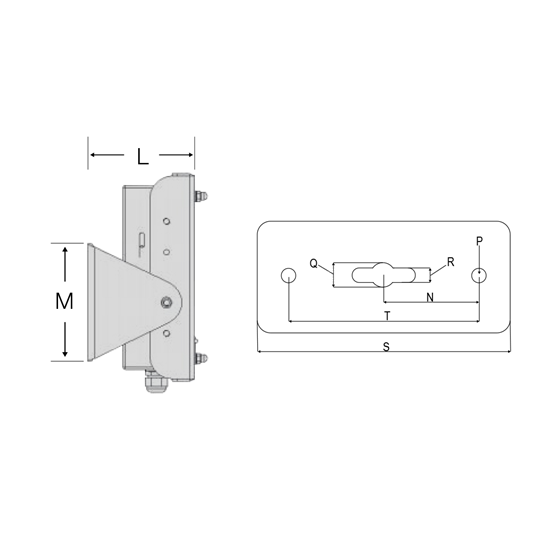

Optional Side Bracket for LaserLT-100
| Label |
Measurement |
| L |
3.98 in (101 mm) |
| M |
4.13 in (105 mm) |
| N |
1.57 in (40 mm) |
| P |
0.28 in (7 mm) |
| Q |
0.43 in (11 mm) |
| R |
0.28 in (7 mm) |
| S |
4.13 in (105 mm) |
| T |
3.15 in (80 mm) |
Upgrade your visibility with LaserLT-60 and LaserLT-100 remote displays.
Perfect for indoor, outdoor, and washdown weighing applications — visible up to 150 feet.
