Key Highlights
-
Dual-band operation: 2.4 GHz and 5 GHz for flexible deployments
-
Functions as access point, bridge, repeater, or client
-
Secure WPA2 encryption with 128-bit AES
-
Wide temperature range: -40 °C to 75 °C
-
Vibration, shock, and hazardous-location rated (UL Class 1, Div 2, Atex Zone 2)
-

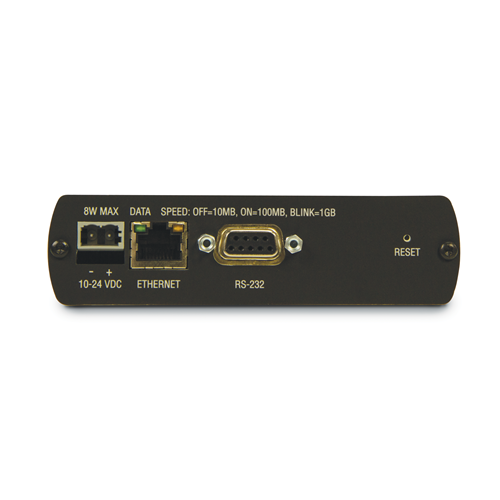

Supports both serial and Ethernet connectivity
-

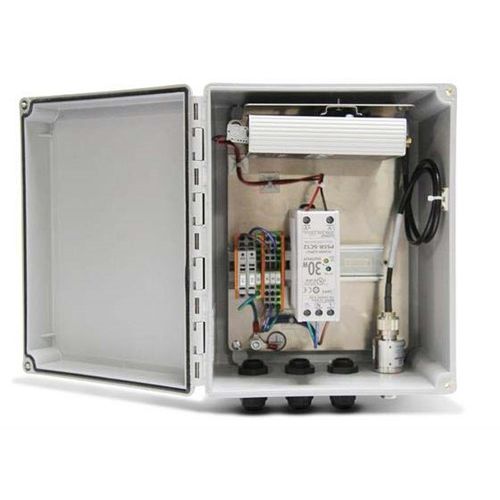

Durable design with FRP enclosure for industrial environments
-
Compatible with 802.11 a/b/g/i wireless standards
The Industrial Broadband Wireless Ethernet device is designed to deliver robust, secure, and flexible wireless communication in challenging industrial environments. Supporting both serial and Ethernet connectivity, it can be configured as an access point, wireless bridge, repeater, or client, providing exceptional versatility for complex network setups.
Engineered for harsh conditions, the device operates reliably in extreme temperatures, high-vibration areas, and hazardous locations. Certified under UL Class 1, Division 2 and Atex Zone 2, it's ideal for oil and gas, chemical, manufacturing, and heavy-duty industrial operations.
With dual-band capability (2.4 GHz and 5 GHz), the system supports a range of devices and applications, and maintains strong signal integrity even in environments with potential interference. The unit includes advanced security features such as WPA2 with 128-bit AES encryption, MAC ID filtering, and password-protected admin access.
Whether you’re setting up a new wireless infrastructure or expanding an existing network, this wireless Ethernet unit provides the reliability, security, and performance that industrial-grade applications demand.
Specifications
| Feature |
Specification |
| Frequency Band |
2.412–2.462 GHz (FCC), 2.412–2.472 GHz (ETSI) |
|
5.150–5.250 GHz, 5.725–5.850 GHz (FCC/ETSI) |
| Wireless Standards |
802.11a, 802.11b, 802.11g, 802.11i |
| Output Power (programmable) |
2.4 GHz: up to 100 mW (20 dBm) |
|
5 GHz: up to 64 mW (18 dBm) |
| Modulation/Data Rates |
802.11b: 11–1 Mbps (DSSS, BPSK, QPSK, CCK) |
|
802.11g: 54–6 Mbps (OFDM) |
|
802.11a: 54–6 Mbps (OFDM) |
| Receiver Sensitivity |
-90 dBm at 1 Mbps to -75 dBm at 54 Mbps |
| Channels (varies by region) |
1 to 13 |
| Security |
WPA2, WPA, WEP, MAC ID filter, admin password |
| Enclosure Material |
FRP (Fiber Reinforced Plastic) |

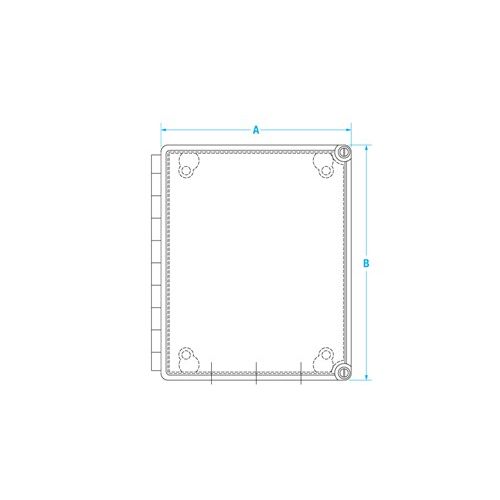

| Dimensions |
8.5 in × 10.5 in (216 mm × 267 mm) |
| Temperature Range |
-40 °C to 75 °C (-40 °F to 167 °F) |
Ensure fast, secure, and reliable industrial wireless communication with the Industrial Broadband Wireless Ethernet solution. Whether you're in manufacturing, oil and gas, or logistics, this device is designed to meet the most demanding requirements.
