Key Highlights
-
Supports Capacities from 500 kg to 300 t
-
Material: High-grade stainless steel for corrosion resistance and hygiene-critical environments
-
Load Cell Compatibility: Designed for Inteco load cells, 10,000 division, 1 mV/V output
-
Dummy Functionality: Allows vessel installation without a load cell
-
Integrated Lift-Off Protection: Built-in safety for up to 20 kN lift-off and lateral forces
-
Extremely Durable: Rated 39 kN destructive lateral force
-
Maintenance-Free: 100% maintenance-free constrainers and module design
-
Patent-Pending: Design registered under DE 101 38 435A1
-
15-Year Warranty on load cell
-
GL Certified: Germanischer Lloyd No. 47-458-03HH

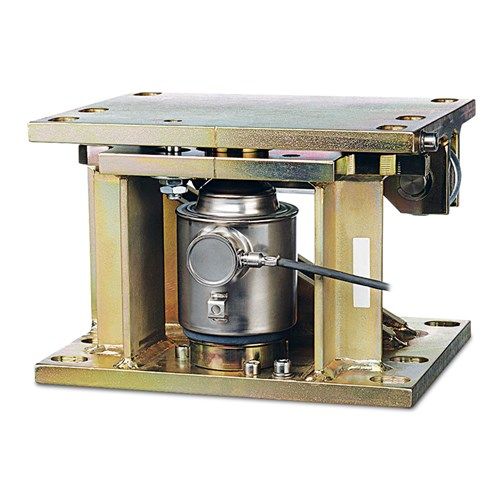

The Minebea Intec Inteco Stainless Steel Star Mount Kit is engineered for precision, durability, and superior hygienic performance in demanding industrial environments. Designed specifically for the Inteco load cell family, this star mount offers maximum weighing accuracy and mechanical safety across a wide range of tank and vessel applications.
Built with corrosion-resistant stainless steel, this mounting kit supports capacities from 500 kg up to 300 metric tons, while offering a destructive lateral force rating of 39 kN. Its smart engineering allows horizontal displacement in the unconstrained direction of the load cell, enhancing flexibility and performance during heavy-duty operation.
The included dummy mount function enables early installation of tanks or silos without the load cell. This simplifies on-site handling while the top load disc remains in place, ready to receive the load cell without repositioning.
With a built-in lift-off protection system and maintenance-free components, this mount is an ideal solution for operations in chemical, pharmaceutical, food processing, and metal manufacturing industries.
Specifications
| Feature |
Details |
| Material |
Stainless steel |
| Capacity Range |
500 kg to 300,000 kg (0.5 to 300 tons) |
| Load Cell Output |
1 mV/V |
| Resolution |
10,000 divisions |
| Lateral Force Protection |
39 kN destructive; 20 kN permissible |
| Lift-Off Protection |
20 kN |
| Constrainer |
Maintenance-free |
| Dummy Mount Function |
Yes |
| Approvals |
Germanischer Lloyd No. 47-458-03HH |
| Patent |
DE 101 38 435A1 |
| Warranty |
15 years (load cell only) |
| Compatibility |
Minebea Intec Inteco load cells |
Applications
-
Hygienic tank and vessel weighing
-
Batching, mixing, and processing systems
-
Chemical and pharmaceutical plant operations
-
Food-grade manufacturing environments
-
Heavy industrial environments with corrosive exposure
Elevate your weighing precision and hygiene standards with the Minebea Intec Stainless Steel Star Mount Kit. Designed for extreme conditions and long-term performance, it’s the ideal choice for critical process control, safety, and compliance. Contact us today to integrate this reliable mounting system into your industrial setup.
