Key Highlights
-
Explosion-proof design for use in Class 1, 2, 3 Division 1 hazardous areas
-
Amber backlit LCD dot matrix display for clear visibility
-
Numeric keypad with preset tare and identifier input
-
GMP printable records and date/time integration
-
Three LED lights for checkweighing status
-
Bar graph range indicator for real-time weighing feedback
-
Memory with battery-backed RAM for totalization and application data
-
Multiple power supply options: 110–220 VAC, 24 VDC, or rechargeable battery pack
-
Compatible with weighbridges and precision platforms
-
304 stainless steel housing, IP69K/NEMA Type 4X rated
-
Pre-installed software for counting, sorting, batching, checkweighing, and more
-
NTEP 19-055 approved and FM-certified for hazardous zones

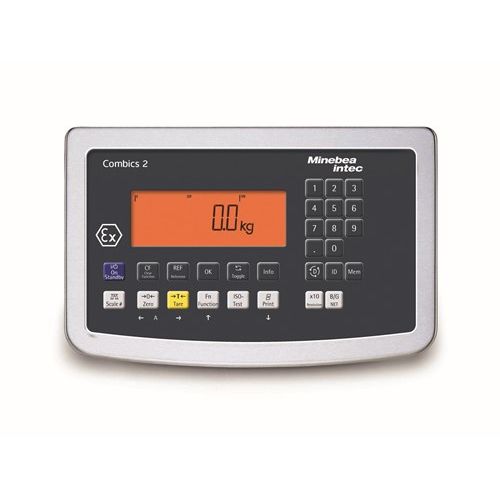

The Combics® 2 Ex Explosion-Proof Digital Weight Indicator by Minebea Intec is a reliable and highly functional solution for weighing in hazardous environments. With full FM approvals and NTEP certification, this indicator is built to handle applications in explosive gas and dust zones, ensuring both safety and performance.
It features an intuitive dot matrix display, a responsive numeric keypad, and intelligent software for applications like checkweighing, gross-net-tare, animal weighing, and more. Its robust construction, including a 304 stainless steel enclosure with IP69K protection, makes it ideal for pharmaceutical, food processing, and chemical environments requiring strict hygiene and explosion protection.
The Combics 2 Ex can interface with two precision weighing platforms and allows flexible power connections, including AC, DC, or a rechargeable battery pack in a sealed stainless steel casing.
Applications
-
Hazardous area weighing (FM-approved)
-
Checkweighing and percentage weighing
-
Counting and sorting applications
-
Animal and net-total weighing
-
Weighbridge integration for industrial platforms
-
Environments requiring GMP and GLP compliance
Specifications
| Feature |
Details |
| Power Requirements |
110–220 VAC and 24 VDC |
| Excitation Voltage |
6 V |
| Load Cell Connection |
Four- or six-wire |
| Display |
Amber backlit LCD, dot matrix |
| Keys/Buttons |
On/Off, Zero, Tare, Print/Data, Numeric Keypad |
| Annunciators |
Gross/Net toggle |
| Enclosure Material |
304 stainless steel |
| Protection Rating |
IP69K, NEMA Type 4X |
| Operating Temp. |
14 °F to 104 °F (-10 °C to 40 °C) |
| Dimensions (L×W×H) |
11.9 × 7.4 × 3.5 in (302 × 188 × 90 mm) |
| Warranty |
Two-year limited, pending evaluation |
| Approvals |
NTEP CC 19-055, FM Class I, II, III, Div 1, T4 |
Ensure safe and reliable weighing in hazardous environments with the
Combics 2 Ex from
Minebea Intec—a powerful, explosion-proof digital indicator engineered for industrial accuracy, compliance, and performance.
Contact us today for Class I, II, III Division 1 compliance.
