Key Highlights
-

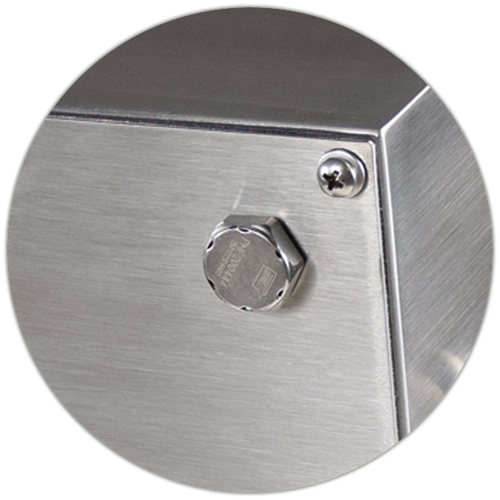

Stainless steel IP66-rated enclosure with Gore-Tex® breather vent
-
23-key membrane keypad with numeric, function, and target keys
-
High-visibility 0.8 in red LED display with annunciators
-
Stores up to 50 IDs for quick configuration recall
-
Auto print and accumulator functions built-in
-
Real-time data collection and audit trail tracking
-
Configurable print formats with two RS-232 ports
-
Optional Ethernet, USB, or fiber-optic communication
-
Four configurable digital I/O channels
-
Firmware upgradeable in the field
-
NTEP, Measurement Canada, NSF, CE, and cULus listed

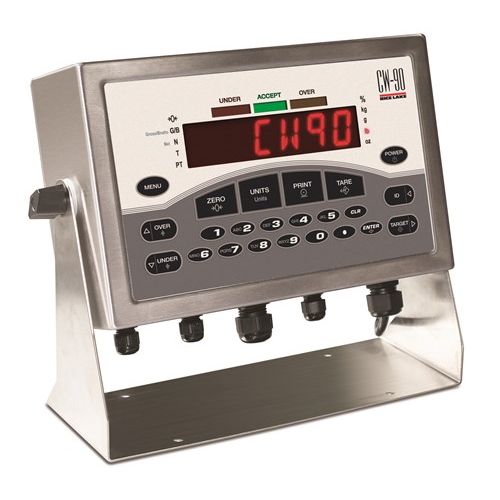

The Rice Lake CW-90 Checkweigh Indicator is the go-to solution for quality control environments and high-speed industrial applications. Built with 304 stainless steel and an IP66-rated enclosure, this indicator is rugged enough for harsh washdown settings, while its large LED display and intuitive keypad make operation simple and efficient for production teams.
Designed with user convenience in mind, the CW-90 allows configuration directly from the front keypad, eliminating exposure to moisture and contamination by removing the need to open the back panel. With the ability to store up to 50 product IDs, and featuring auto-print and audit trail tracking, the CW-90 ensures both operational speed and compliance are never compromised.
Its digital I/O channels, advanced signal filtering, and real-time communication make it an excellent choice for integration into automation systems. Whether you're weighing, classifying, or recording data, the CW-90 is a reliable and versatile indicator for every industrial setting.
CW-90 Indicator Specifications
Electrical & Communication
Feature | Details |
---|---|
Power Supply | 115 to 230 VAC, 50/60 Hz |
Power Consumption | 1.5 A @ 115 VAC, 0.75 A @ 230 VAC (8 W) |
Excitation Voltage | +5 VDC, supports 8 × 350Ω or 16 × 700Ω cells |
Analog Input Range | -0.5 to 4.5 mV/V |
Signal Sensitivity | Min: 0.3 µV/graduation, Rec: 1.5 µV/graduation |
A/D Sample Rate | 7.5 to 960 Hz (software selectable) |
RS-232 Ports | Two full-duplex serial ports |
Optional Communication | Ethernet, USB, fiber-optic |
Display & Controls
Feature | Details |
---|---|
Display Type | High-intensity red LED |
Display Size | 0.8 in, 14-segment, six-digit |
Keypad | 23-key membrane keypad |
Display Resolution | 100,000 counts |
Annunciators | %, kg, gm, lb, oz, motion, neg, zero, etc. |
Mechanical & Environmental
Feature | Details |
---|---|
Enclosure Material | 304 Stainless Steel |
Enclosure Rating | IP66 |
Breather Vent | Gore-Tex® |
Operating Temperature | 14 °F to 104 °F (-10 °C to 40 °C) |
Firmware | Field upgradeable |
Time & Date | Battery-backed |
Digital I/O | Four configurable channels |
Warranty | Two-year limited |
Certifications
-
NTEP CC 08-092, Class III/IIIL 10,000d
-
Measurement Canada AM-5710
-
OIML R76/2006
-
EU Type Evaluation Cert. TC11569
-
NSF Certified
-
CE Marked
-
cULus Listed

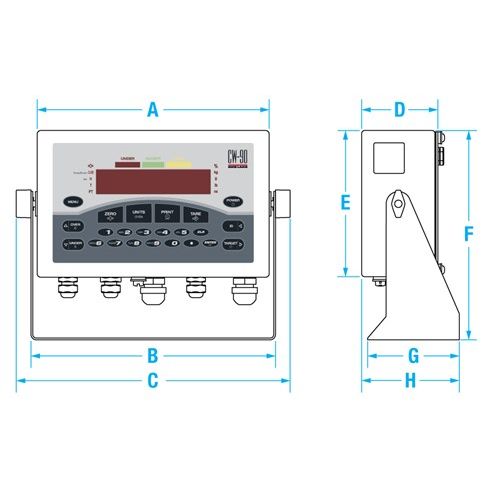

CW-90 Indicator Dimensions
Label | Inches (mm) |
---|---|
A | 9.5 in (241 mm) |
B | 10.02 in (255 mm) |
C | 11.24 in (285 mm) |
D | 3.12 in (79 mm) |
E | 6.00 in (152 mm) |
F | 8.57 in (218 mm) |
G | 3.75 in (95 mm) |
H | 4.00 in (102 mm) |
Upgrade your checkweighing system today with the CW-90 Checkweigh Indicator.
Whether you're managing portion control or verifying weight compliance, the CW-90 is built for precision, speed, and reliability in demanding environments.
