Key Highlights

  • Friction-free pivot points ensure smooth operation

  • Single load cell carrier beam for reliable performance

  • Custom-built for each conveyor and application

  • Designed for medium to heavy capacity use

  • Ideal for mining and agricultural environments

  • Fits standard conveyors with minimal modification

  • Optional dual load cells or dual idler configuration

  • Available in 304 or 316 stainless steel

  • Custom lifting weights available upon request

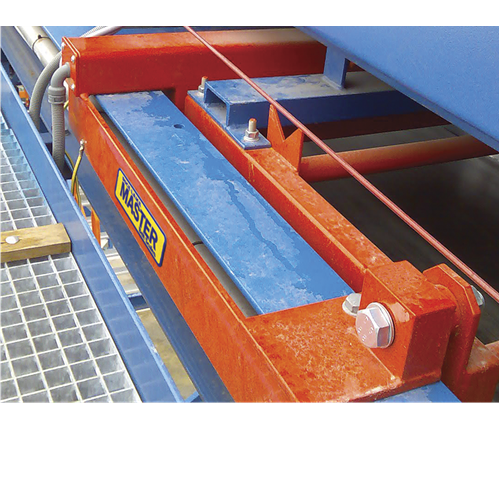

The Master™ 211 Belt Scale Weigh Frame is engineered for rugged, high-capacity weighing in demanding applications such as mining, aggregate processing, and agricultural bulk handling. With a robust friction-free pivot design, this weigh frame delivers precision and durability even under challenging conditions.

Its structure includes an inner frame mounted on two pivot points on one end, while a load cell is placed on the opposite end. The idler is installed atop the inner frame, providing seamless measurement of material flow. The frictionless pivot design not only enhances weighing accuracy but also absorbs tensile stresses for long-term structural integrity.

Each 211 weigh frame is custom-built to your application specifications and supports conveyor widths from 20 to 80 inches. It’s capable of handling up to 3,000 tons per hour at belt speeds of up to 800 ft/min, making it a highly versatile and reliable solution for industrial-scale operations.

Specifications Table

Feature Specification
Conveyor Width 20 to 80 in (500 to 2,000 mm)
Capacity 3,000 tons per hour
Max Belt Speed 800 ft/minute (4 m/s)
Max Inclination 25 degrees
Material Powder coated mild steel
Accuracy 0.5% system accuracy
Load Cell RL20001 S-beam, alloy steel (varies by app)
Options Dual load cells, dual idler, 304/316 SS
Warranty One-year limited

Optimize your conveyor weighing system with the Master 211 Belt Scale Weigh Frame—engineered for durability and precision in the toughest conditions.

Contact us SellEton Scales today to speak with an expert or request a quote tailored to your project.
