BCi Belt Scale Weigh Frame

Original price $109.25 - Original price $6,095.00
Original price
$3,220.00
$109.25 - $6,095.00
Current price $3,220.00

Key Highlights

  • Engineered for standard conveyors using CEMA-C idlers

  • Four laterally opposed shear beam load cells

  • Heavy-gauge steel construction for industrial durability

  • Zero moving parts for long-term reliability

  • Fits a wide range of conveyor sizes (18 to 72 inches)

  • Minimal modifications required for installation

  • Accuracy of 1% with single-idler and 0.5% with dual-idler setups

  • Designed for mining, utilities, load-out, and process control

  • Available in both mild steel and stainless steel

  • Compensates for torque load and speed variations

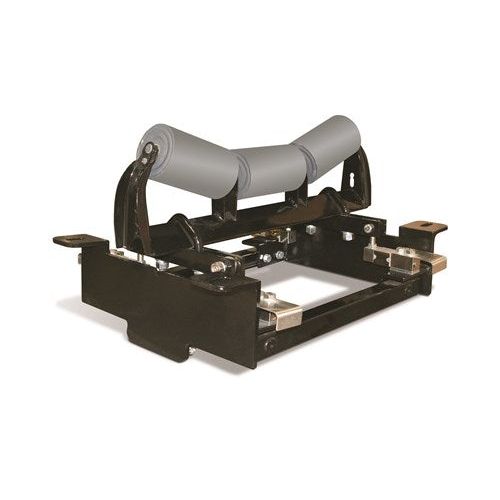

The Rice Lake BCi Belt Scale Weigh Frame offers dependable, high-capacity weighing performance for bulk material handling systems. With no moving parts and a heavy-duty construction, the BCi is engineered for demanding environments such as mining, quarries, blending systems, and load-out operations.

Designed to fit standard CEMA-C conveyor idlers, the weigh frame features four laterally opposed shear beam load cells mounted in a rugged unitized idler frame. This design enhances accuracy by compensating for torque-related effects and belt speed changes. The BCi system delivers up to 10,000 tons per hour throughput, with belt speeds reaching 1,200 feet per minute, making it ideal for large-scale operations.

Whether you require high-accuracy weighing for rail, barge, or truck loadouts, or reliable process control in dusty or rugged environments, the BCi frame delivers consistent results with system accuracy ranging from 0.5% to 1%, depending on configuration.


Specifications

Feature Specification
Conveyor Widths 18 to 72 in
Capacity Up to 10,000 tons per hour
Belt Speed Up to 1,200 feet per minute
System Accuracy 0.5% to 1% (single to dual-idler setup)
Load Cells Four shear beam load cells (laterally opposed)
Construction Heavy-gauge mild steel or stainless steel

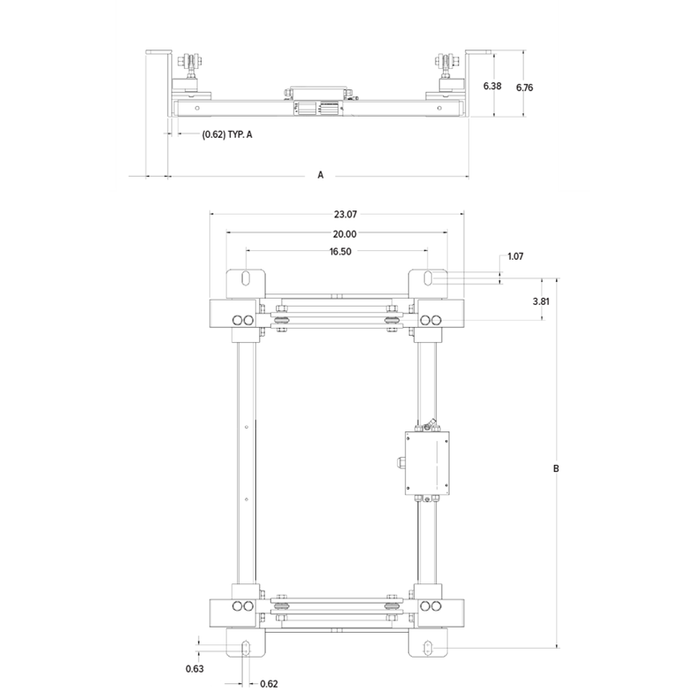

Dimensions by Model

Material Part Number A (in) B (in)
Mild Steel 94968 24.00 27.50
95208 30.00 33.50
95209 36.00 39.50
95210 42.00 45.50
95211 48.00 51.50
95212 54.00 57.50
96717 60.00 63.50
96718 66.00 69.50
96719 72.00 75.50
Stainless Steel 110839 24.00 27.50
105246 30.00 33.50
110841 36.00 39.50
110842 42.00 45.50
110843 48.00 51.50
110844 54.00 57.50
110845 60.00 63.50
110846 66.00 69.50
110847 72.00 75.50


Upgrade your belt weighing operation with the robust and precise BCi Belt Scale Weigh Frame from Rice Lake. Perfect for high-volume industries like mining and utilities, this frame ensures reliable results in even the harshest environments.

Contact us SellEton Scales now to request a quote or expert configuration assistance.
