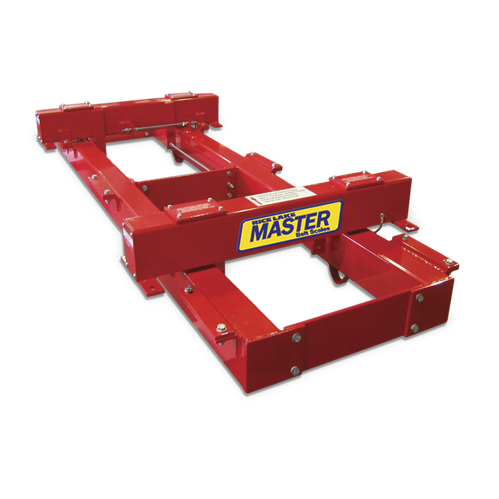

Master™ 14X Belt Scale Weigh Frame

Consult for Price
Original price $0.00 - Original price $0.00
Original price
$0.00
$0.00 - $0.00
Current price $0.00

Key Highlights

  • Custom-built for each conveyor system

  • Measures weight across multiple idlers

  • Four-load cell design for enhanced accuracy

  • Free-floating inner frame reduces mechanical interference

  • Handles capacities up to 20,000 tons/hour

  • Belt speed up to 1,400 ft/min (7 m/s)

  • Ideal for mining, bulk material, and aggregate operations

  • Powder-coated mild steel frame; stainless steel option available

  • Supports inclines up to 25 degrees

  • Optional: Two, three, or four weigh idlers

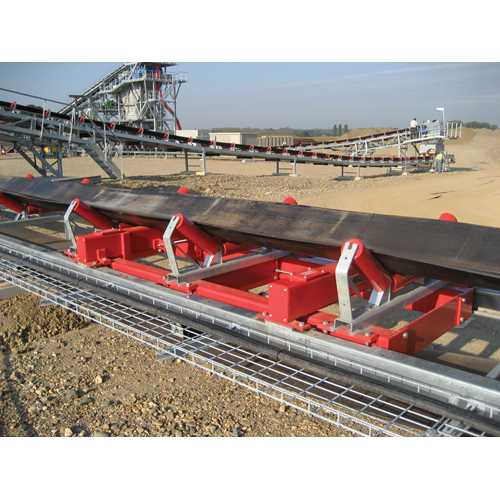

The Rice Lake Master™ 14X Belt Scale Weigh Frame is engineered for maximum accuracy and durability in high-demand industrial weighing applications. Designed with a free-floating inner frame and multiple idler support, the 14X offers unparalleled weighing performance for mining, aggregate, and heavy-capacity material transport systems.

With four load cells capturing real-time weight data across up to three conveyor idlers, this weigh frame ensures precise material flow monitoring even at high speeds and volumes. The structure is custom-fabricated to match your specific conveyor specifications—guaranteeing seamless integration and optimized performance.

The 14X supports a belt width range from 20 to 120 inches and is built with powder-coated mild steel, with optional 304 stainless steel for more corrosive environments. This advanced frame is an excellent choice for any operation needing dependable, high-volume throughput measurement.

Specifications Table

Feature Specification
Conveyor Width 20 to 120 in (500 to 3,000 mm)
Capacity Up to 20,000 tons per hour
Belt Speed Up to 1,400 ft/min (7 m/s)
Inclination Up to 25 degrees
Material Powder-coated mild steel (304 SS optional)
Accuracy ±0.25%
Load Cell RL20001 alloy steel, S-beam (selected per use)
Idlers Supported Two, three, or four (based on application)
Inner Frame Free-floating platform
Warranty One-year limited

Applications Table

Industry Use Case
Mining Bulk ore weighing, production monitoring
Aggregates Sand, gravel, crushed stone material control
Industrial Weighing Blending, batching, load tracking

Improve your material flow control and enhance throughput accuracy with the Rice Lake Master™ 14X Belt Scale Weigh Frame. Built to handle extreme conditions and high capacities, it’s the smart choice for bulk material professionals.
Contact us with SellEton Scales today to request a quote or discuss custom integration.
