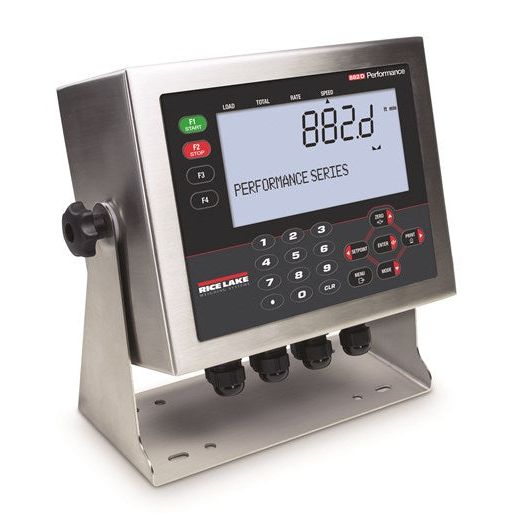

882D Belt Scale Integrator

Original price $2,432.25 - Original price $2,616.25
Original price
$2,432.25
$2,432.25 - $2,616.25
Current price $2,432.25

Key Highlights

  • Compact and rugged IP66 stainless steel enclosure

  • Large LCD for easy viewing in any light

  • Supports dual pulse input and multiple speed inputs

  • Four onboard digital I/O channels for control/alarm

  • Password-protected audit trail for secure calibration

  • Adjustable filtering to reduce electrical noise

  • Hardware slots for expansion option cards

  • Menu access to time, rate, total, setpoints, and more

  • Ideal for mining, quarries, and bulk loadout applications

The 882D Belt Scale Integrator is a durable, field-ready solution built for harsh, demanding environments like mining, sand and gravel, and bulk material handling. Housed in a stainless steel IP66-rated enclosure, it is designed to withstand dust, moisture, and extreme conditions, delivering consistent and reliable weighing data in even the toughest conditions.

A large backlit LCD makes weight, speed, and rate easy to read, while programmable setpoints and built-in digital I/O channels provide flexibility for batch control, alarms, and dosing systems. The integrator offers dual speed input for redundancy and precise motion control, along with audit trail features that log configuration and calibration changes for traceability and accountability.

Equipped with RS-232/RS-485, Ethernet TCP/IP, and USB communication ports, the 882D is built to integrate smoothly into existing systems. Whether used for process control, blending, or load-out applications, it brings precision, security, and robust performance to every belt weighing setup.

882D Belt Scale Integrator Specifications

Feature Specification
Power Input 100 to 240 VAC; 9 to 36 VDC (50/60 Hz)
Power Consumption AC: 15 W, DC: 20 W
Excitation Voltage 10 VDC; 8 × 350 Ω or 16 × 700 Ω load cells
Signal Input Range -45 mV to 45 mV
Signal Sensitivity 0.3 μV/div (min); 1.0 μV/div (typical)
Sample Rate 7.5 to 120 Hz (selectable)
Resolution Internal: 8,000,000 counts; Display: 100,000
System Linearity ±0.01% full scale
Digital I/O Four onboard I/O channels
Communication Ports RS-232, RS-485, Ethernet TCP/IP, USB
Pulse Inputs Dual inputs for redundancy
Display LCD, 0.8 in, 7-digit weight + 3x20 pixel prompts
Annunciators Load, Total, Rate, Speed, Zero
Keypad Flat membrane with tactile buttons
Temperature Range 14 °F to 122 °F (-10 °C to 50 °C)
Enclosure Material Stainless Steel, IP66
Weight 12 lb (5.4 kg)
Warranty Two-year limited
Approvals CE, cULus

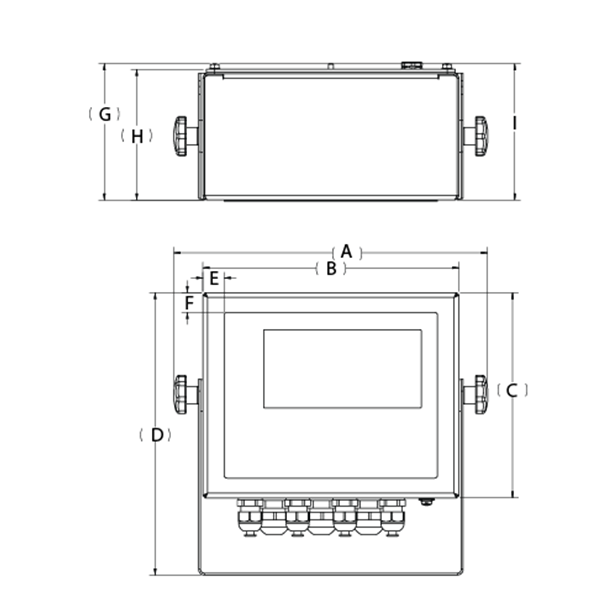

Dimensions

Label Dimension
A 9.93 in (252 mm)
B 8.10 in (206 mm)
C 6.50 in (165 mm)
D 8.94 in (227 mm)
E 0.68 in (17 mm)
F 0.63 in (16 mm)
G 4.31 in (110 mm)
H 4.14 in (105 mm)
I 4.32 in (110 mm)

Built to thrive where others fail, the 882D Belt Scale Integrator delivers powerful performance in tough, real-world environments. Its advanced features and rugged stainless-steel build make it ideal for critical weighing operations.



Order now or get in touch with SellEton Scales to request a quote and get expert assistance with integration.
