Space-saving low-profile design with just 2–3 inch height
Durable mild steel base with 304 stainless steel top cover
NTEP Certified and Measurement Canada approved (select models)
Four planar beam load cells for consistent, accurate readings
ABS junction box and 20 ft EL147 load cell cable included
Adjustable leveling feet for stable installation
Holes in lower frame allow permanent mounting without feet
Ideal for commercial and light industrial environments

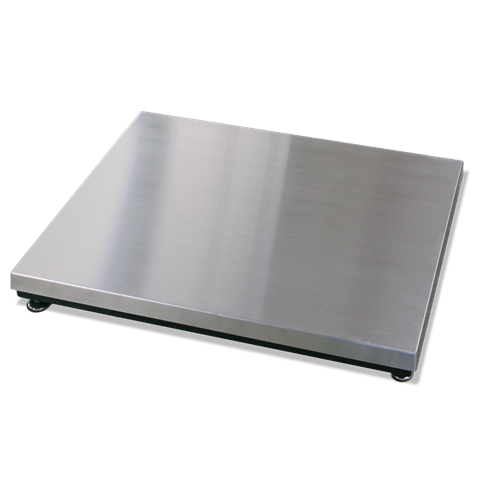

The BenchMark® LP Low-Profile Bench Scale is engineered for environments that require precision weighing in a compact footprint. Standing only 2 to 3 inches tall, the LP model offers a discreet and professional appearance, making it an ideal choice for commercial counters, tight workspaces, or areas where visual impact must be minimal.
Despite its compact form, the LP bench scale delivers full-scale performance and high accuracy with its four IP65-rated aluminum planar beam load cells. Built with a rugged mild steel base and topped with a 304 stainless steel platform, it offers both strength and a clean aesthetic. An ABS junction box and 20 ft of load cell cable make integration with indicators simple and efficient.
Designed to support 60% of full-scale end loads, the BenchMark LP doesn’t compromise on durability. Whether you mount it directly to the floor through the provided frame holes or use the included adjustable feet, this scale adapts to your needs.
| Feature | Description |
|---|---|
| Load Cell Output | 1.0 mV/V ±10%, IP65 aluminum |
| End Load Capacity | 60% of full scale capacity |
| Cable Length | 20 ft (6.1 m) to indicator |
| Frame Material | Mild steel, powder-coated black |
| Cover Material | AISI304L stainless steel, Ra=45 ± 10 finish |
| Junction Box | ABS |
| Leveling Feet | Included; scale can also be bolted directly |
| Certifications | NTEP 08-017, Class III 5,000 d (excl. 1000 lb) |
| Measurement Canada AM 5660 (excl. 500 kg) | |
| Warranty | Two-year limited |

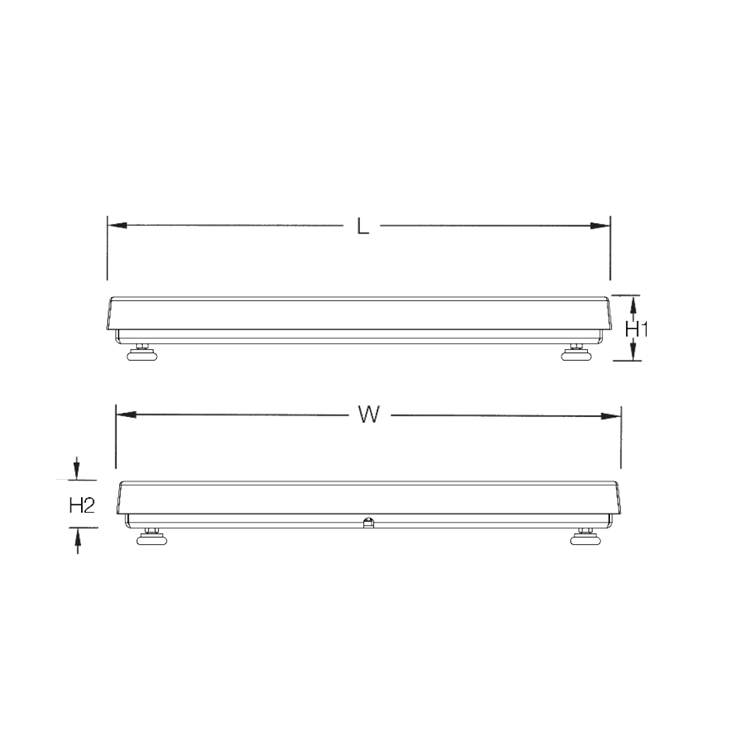

| Part # | Length (L) | Width (W) | Height (H1) | Height (H2) | |
|---|---|---|---|---|---|
| 97662 | 18.00 in | 18.00 in | 2.63 in | 1.67 in | |
| 97663 | 18.00 in | 18.00 in | 2.50 in | 1.74 in | |
| 97664 | 18.00 in | 18.00 in | 2.69 in | 1.93 in | |
| 97665 | 24.00 in | 24.00 in | 2.66 in | 1.69 in | |
| 97666 | 18.00 in | 18.00 in | 2.83 in | 2.07 in | |
| 97667 | 24.00 in | 24.00 in | 3.02 in | 2.26 in | |
| 97668 | 30.00 in | 30.00 in | 3.02 in | 2.26 in | |
| 97669 | 30.00 in | 30.00 in | 3.47 in | 2.70 in | |
| 97670 | 36.00 in | 36.00 in | 3.02 in | 2.26 in | |
| 97671 | 36.00 in | 36.00 in | 3.47 in | 2.70 in |
Ready to improve your workflow with a compact, rugged, and certified bench scale? The BenchMark LP offers the performance of a full-size model in a low-profile package—perfect for space-conscious operations. Contact us today to discuss your application or request a quote.
