Key Highlights:
-
Dual heavy-duty scale platforms for side-by-side baggage weighing
-
Capacity 500 lb
-
Mild steel base with 304 stainless steel cover for durability
-
Designed for large airline check-in counters
-
Front and back kick plates for both platforms
-
Polyurethane leveling feet with stainless steel stems
-
DB-9 connector included for Tracer AV2 system
-
NTEP and Measurement Canada approved

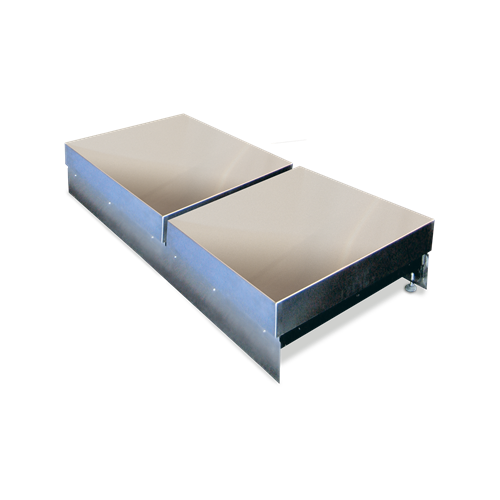

The BenchMark® HD-3 Aviation Scale is engineered for high-volume airline check-in counters that require dual-platform functionality. This system includes two side-by-side heavy-duty scales that streamline passenger check-in operations by allowing simultaneous baggage weighing.
Constructed with a rugged mild steel base and a 304 stainless steel top cover, each platform offers long-term durability under constant use. The front and back kick plates provide protection from impact and debris, making it ideal for demanding airport environments. Stainless steel-stemmed leveling feet ensure a stable foundation on uneven floors.

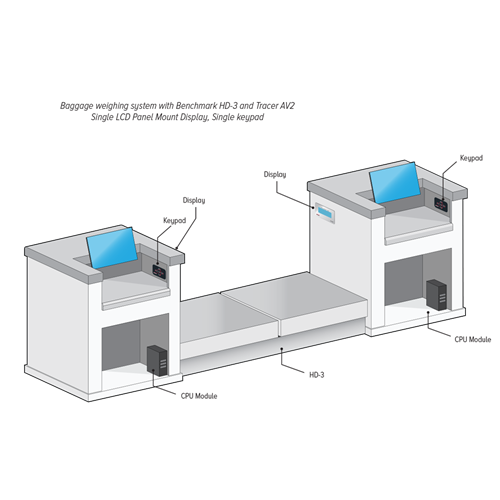

Each load cell is IP67 rated and NTEP certified, offering legal-for-trade accuracy and environmental sealing. Both platforms come standard with a DB-9 connector, allowing seamless integration with Tracer AV2 baggage handling systems. The HD-3 is the go-to solution for check-in areas that demand efficiency, accuracy, and rugged performance.
BenchMark HD-3 Aviation Scale Specifications
| Feature |
Description |
| Load Cell |
IP67 aluminum, environmentally sealed |
| Output Impedance |
350 ohm |
| Maximum Overload |
200% |
| Overload Protection |
Five-point, independently adjusted |
| Frame Material |
Mild steel, powder-coated |
| Cover Material |
304L stainless steel, straight line finish |
| Cable Length |
10 ft (3 m) |
| Connector |
DB-9 for Tracer AV2 integration |
| Operating Temperature |
14 °F to 104 °F (-10 °C to 40 °C) |
| Certifications |
NTEP 06-010, Class III 5,000 d |
|
Measurement Canada AM-5625 |
| Load Cell Approval |
cFMus approved |
| Warranty |
Two-year limited |

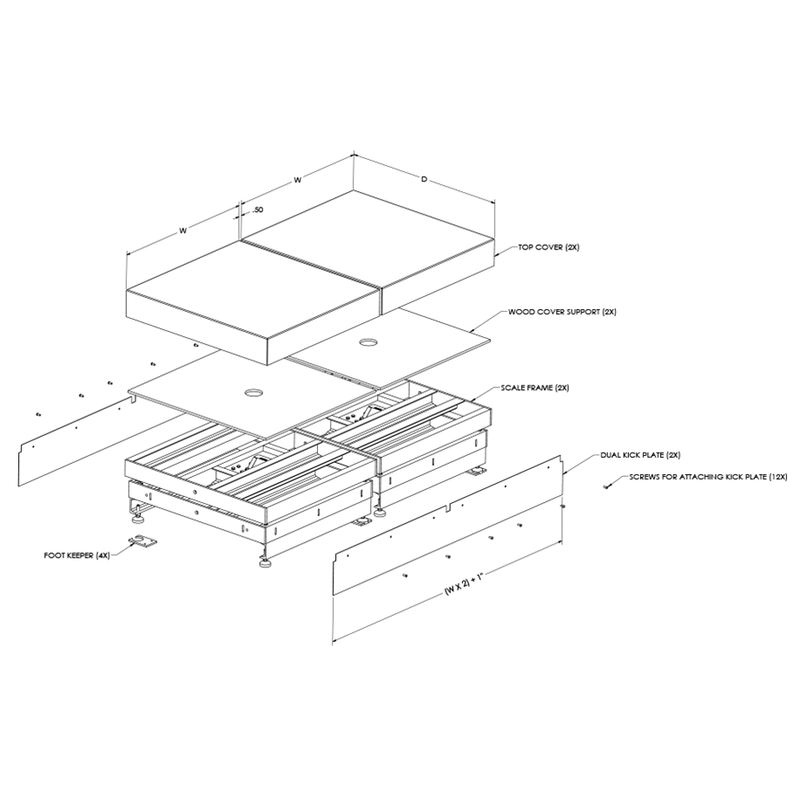

BenchMark HD-3 Aviation Scale Dimensions
| Maximum Dimensions (each scale) |
|
Height |
Width × Depth (W × D) |
| Up to 36 × 36 in |
|
12 in |
Supplied by customer |
Note: 1 inch = 25.4 mm
Whether you're managing a busy check-in station or upgrading your existing baggage weighing setup, the BenchMark HD-3 provides the strength and efficiency you need. Contact us today for a quote or to learn how this dual-scale system can enhance your operations.
