Key Highlights:
-
Heavy-duty platform with mild steel base and 304 stainless steel top cover
-
Capacity 500 lb
-
Designed for single-attendant airline check-in counters
-
Integrated three-sided kick plate for added protection
-
Polyurethane rubber leveling feet with stainless steel stems
-
NTEP Certified and Measurement Canada approved
-
Includes DB-9 connector for seamless Tracer AV2 integration
-
Built to handle rigorous baggage weighing operations in airports

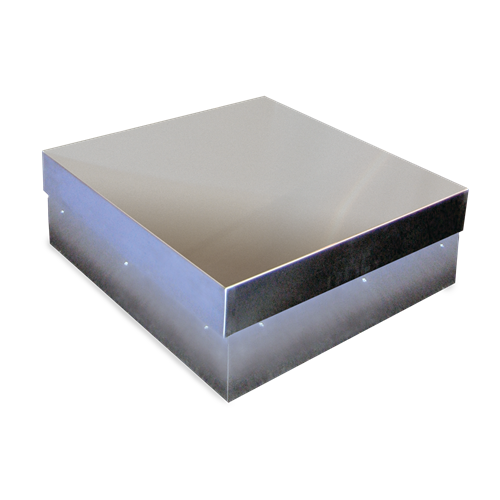

The BenchMark® HD-2 Aviation Scale is purpose-built for the demands of modern airport environments. Ideal for single-attendant airline check-in counters, this heavy-duty scale combines functionality, durability, and a clean, professional appearance.

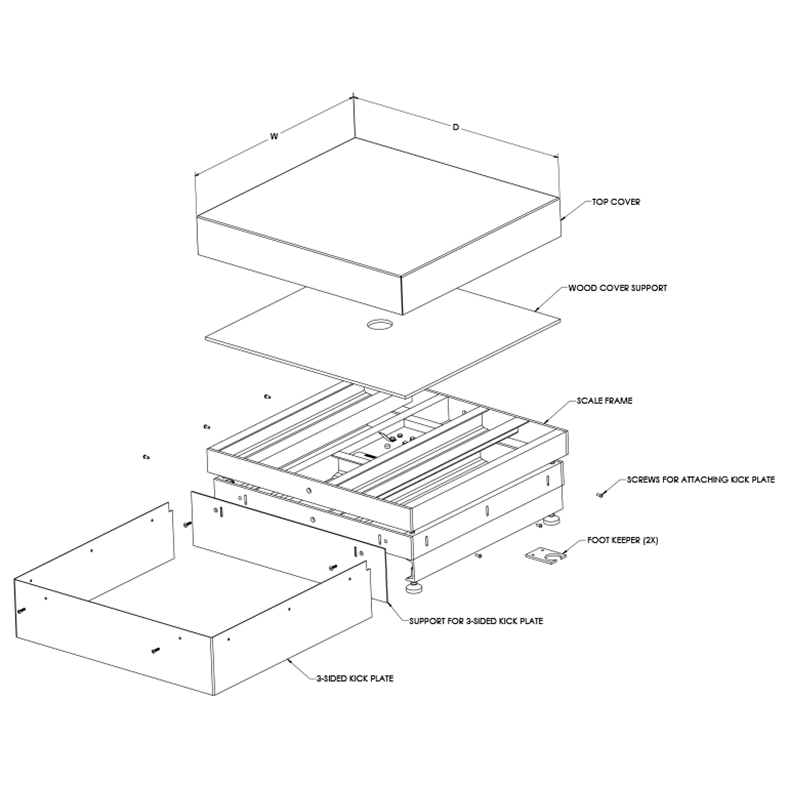

Constructed with a rugged mild steel base and a sleek 304 stainless steel cover, the HD-2 offers long-lasting performance even in high-traffic terminals. The integrated three-sided kick plate helps protect the scale from baggage impacts, while the polyurethane rubber leveling feet ensure stability on uneven surfaces.

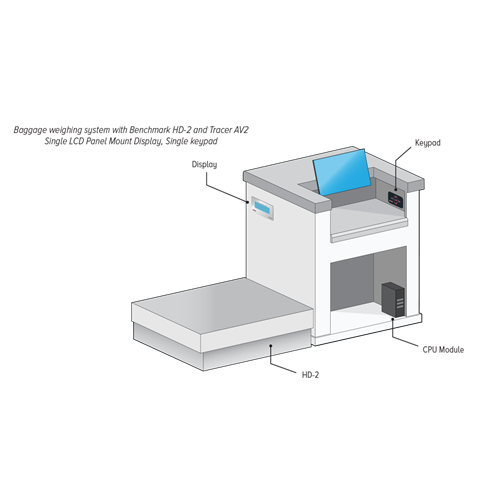

Equipped with an IP67 NTEP Certified load cell, the HD-2 provides accurate, legal-for-trade weight readings. A DB-9 connector comes standard for plug-and-play connectivity with Rice Lake’s Tracer AV2 system. Designed for efficient operations and compliance, this aviation scale meets all certification requirements for commercial baggage weighing.
BenchMark HD-2 Aviation Scale Specifications
| Feature |
Description |
| Load Cell |
IP67 aluminum, environmentally sealed |
| Output Impedance |
350 ohm |
| Maximum Overload |
200% |
| Overload Protection |
Five-point, independently adjusted |
| Frame Material |
Mild steel, powder-coated |
| Cover Material |
304L stainless steel, straight line finish |
| Cable Length |
10 ft (3 m) |
| Connector |
DB-9 for Tracer AV2 integration |
| Operating Temperature |
14 °F to 104 °F (-10 °C to 40 °C) |
| Certifications |
NTEP 06-010, Class III 5,000 d |
|
Measurement Canada AM-5625 |
| Load Cell Approval |
cFMus approved |
| Warranty |
Two-year limited |
BenchMark HD-2 Aviation Scale Dimensions
| |
Maximum Dimensions |
Height |
Width × Depth (W × D) |
|
Up to 36 × 36 in |
12 in |
Supplied by customer |
Note: 1 inch = 25.4 mm
Engineered for reliability and compliance, the BenchMark HD-2 is the perfect solution for single-attendant check-in stations requiring durable and accurate baggage weighing. Reach out today to request a quote or learn how this scale integrates with your Tracer AV2 system.
