Key Highlights:
-
Heavy-duty platform designed for airport baggage weighing
-
Capacity 500 lb (225 kg)
-
Durable mild steel frame with 304 stainless steel top cover
-
Equipped with front and back kick plates for added protection
-
Polyurethane leveling feet with stainless steel stems
-
IP67 aluminum load cell with DB-9 connector for Tracer AV2 integration
-
NTEP Certified and Measurement Canada approved
-
Ideal for installation between airline check-in counters

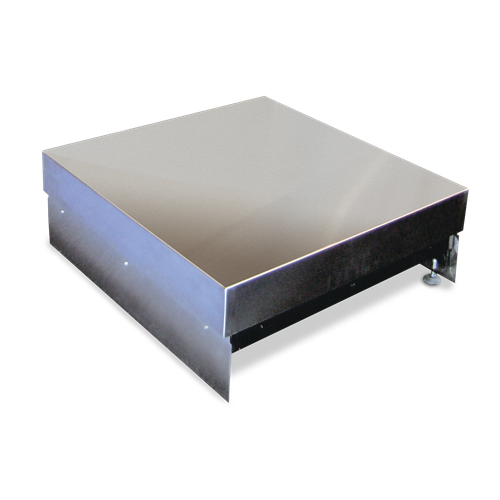

The BenchMark® HD-1 Aviation Scale is engineered to meet the unique demands of airport baggage weighing. Its robust construction features a mild steel base and a sleek 304 stainless steel top, offering both industrial durability and professional aesthetics suitable for airline terminals.

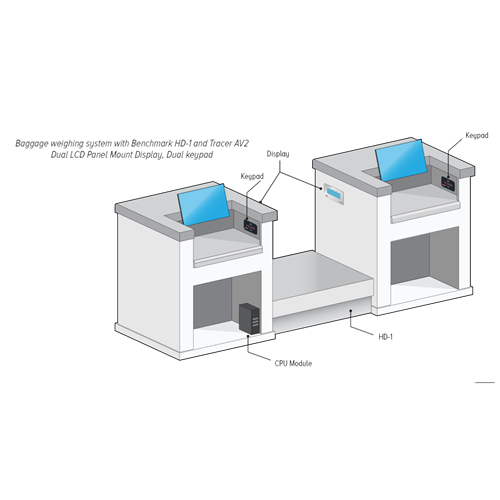

Designed to fit seamlessly between check-in counters, the HD-1 comes with front and rear kick plates that protect the platform from debris and passenger foot traffic. The load cell includes a standard DB-9 connector, allowing for quick and reliable integration with Rice Lake’s Tracer AV2 baggage weighing system.
With its five-point overload protection and environmentally sealed IP67 load cell, this NTEP Certified aviation scale is built for accurate, legal-for-trade use in high-traffic airport settings. The compact footprint and fixed 12-inch height make it a convenient, space-efficient solution for commercial aviation environments.
BenchMark HD-1 Aviation Scale Specifications
| Feature |
Description |
| Load Cell |
IP67 aluminum, environmentally sealed |
| Output Impedance |
350 ohm |
| Maximum Overload |
200% |
| Overload Protection |
Five-point, independently adjusted |
| Frame Material |
Mild steel, powder-coated |
| Cover Material |
304L stainless steel, straight line finish |
| Cable Length |
10 ft (3 m) |
| Connector |
DB-9 for Tracer AV2 integration |
| Operating Temperature |
14 °F to 104 °F (-10 °C to 40 °C) |
| Certifications |
NTEP 06-010, Class III 5,000 d |
|
Measurement Canada AM-5625 |
| Load Cell Approval |
cFMus approved |
| Warranty |
Two-year limited |

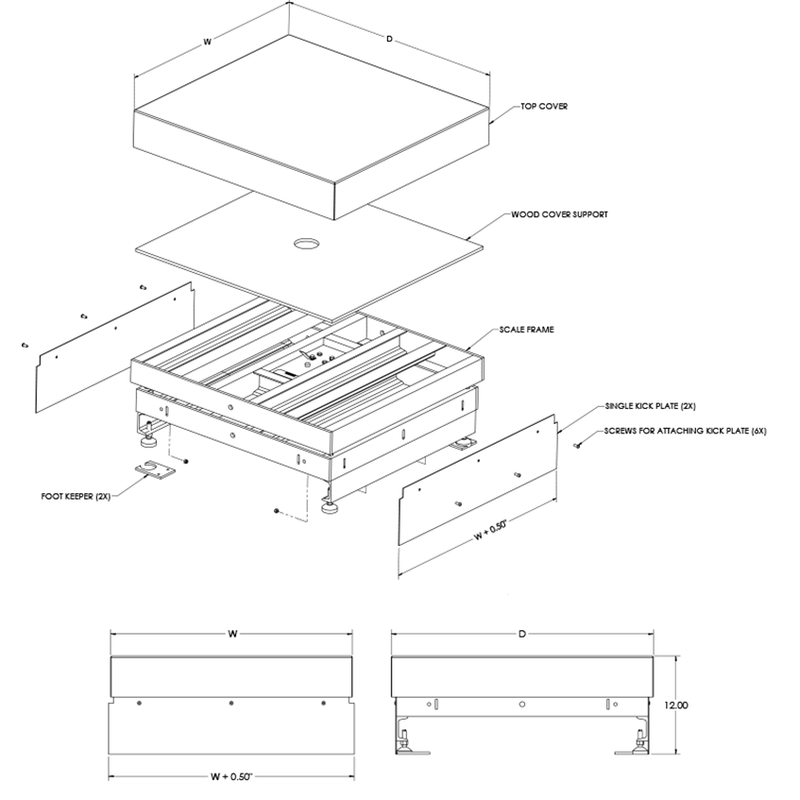

BenchMark HD-1 Dimensions
| |
Maximum Dimensions |
Height |
Width × Depth (W × D) |
|
Up to 36 × 36 in |
12 in |
Supplied by customer |
Note: 1 inch = 25.4 mm
Ensure reliable and compliant baggage weighing in busy airport terminals with the BenchMark HD-1. Its rugged design, accuracy, and airline-ready features make it a dependable choice for check-in operations. Contact us today to request a quote or discuss integration with your Tracer AV2 system.
